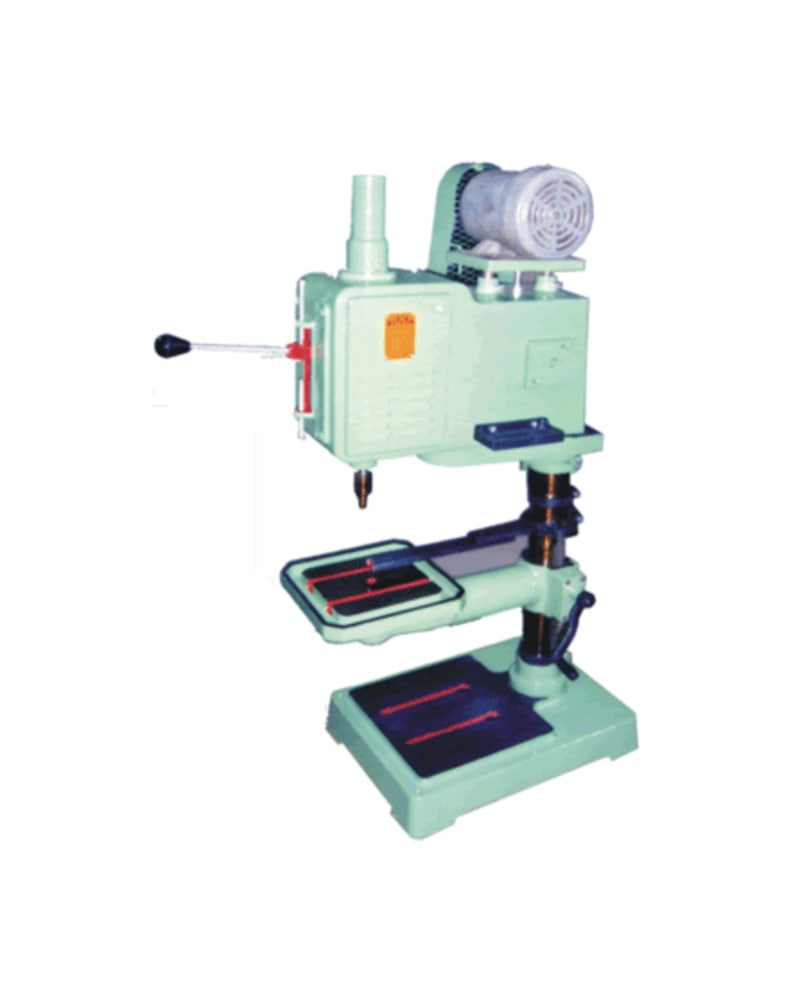

12mm Extra Distance Tapping Machine

Extended Reach for Enhanced Capability, A specialized tapping machine designed with extended spindle-to-column distance for increased flexibility in handling larger workpieces. This machine maintains the 12mm tapping capacity while offering a significantly larger working area for diverse industrial applications.

SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1 Categories: , , ,

Description

Features:

  • 12 M.M. Extra Distance Tapping Machine’s Clutch Cone – Export quality linear clutch system made with special process treatment for the clutch mechanism.
  • Head – Made from close grained cast iron accurately bored, reamed and honed in perfect parallelism between the column and spindle. Easy clamping device fitted for locking it on the column.
  • Spindle – Made from ENS material to withstand distortion. It is balanced and mounted on roller bearings for smooth operation and longevity.
  • Table – Proportionately designed for rigidity and sufficient surface area is provided to hold down jobs. It can be vertically powered or raised by worm and rack (19mm). The slotting is provided to hold heavy jobs.
  • Base – This is of sturdy design and provides sufficient area for heavy jobs. Slots are provided for convenient holding and secure workpiece placement.
Specification
Value
Tapping Machine Capacity
12 mm
Drilling Capacity
8 mm
Spindle Travel/Table travel (6 mm.)
75 mm
Distance Spindle to Column
375 mm
Distance between chuck to base
450 mm
Distance between chuck to work table
380 mm
Size of base Plate-L x B
550 x 410 mm
Size of Work Table-L x B
260 x 260 mm
Diameter of Column
74 mm
V-Belt (Inside)
Inside A-71
V-Belt for Motor (Outside)
A-25
No. of Spindle Speeds
3
Forwards Speeds Range
350/620/1100
Reverse Speeds Range
420/745/1315
Motor Single phase or three phase
0.75/1 H.P.
Motor Speed
1440 R.P.M.
Gear Motor H.P. & R.P.M. (Single Phase)
–
Overall Height
1245 mm
Overall Width
370 mm
Overall front to back
600 mm
Weight approx
150 Kg
