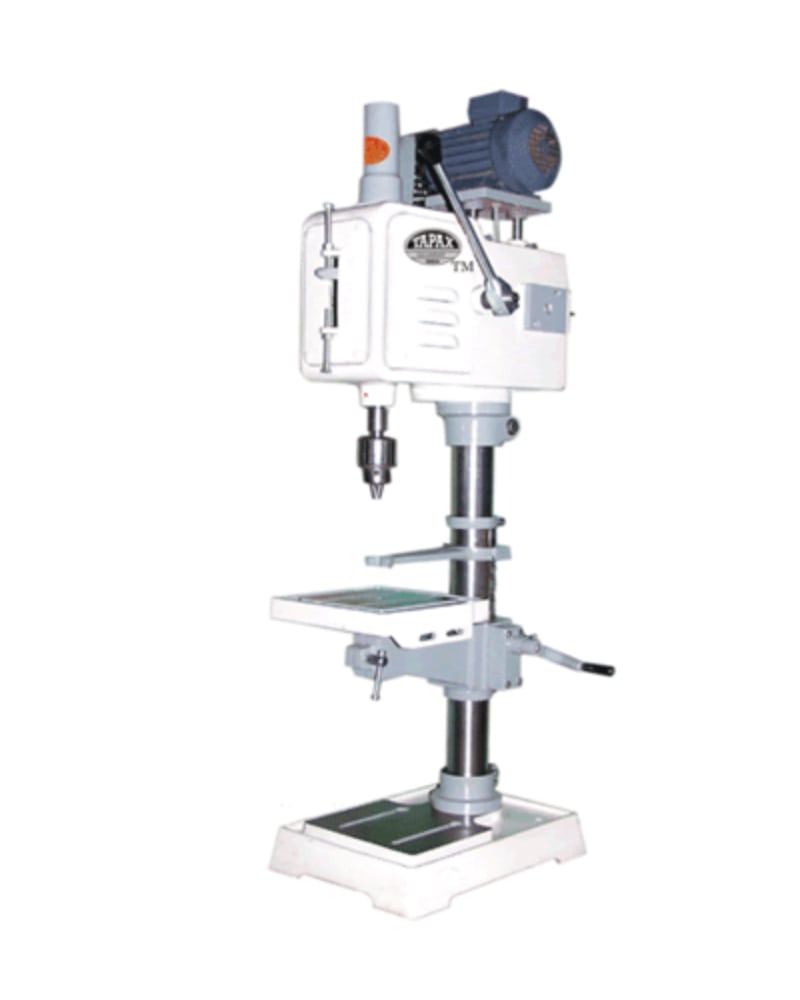

19mm Tapping Machine

Features:

  • 19 M.M Tapping Machine’s Clutch Cone Head – Extraordinary export quality linear clutch system made with special treatment & precision processing.
  • Precision Head – Made from close grained cast iron accurately bored, reamed and honed in perfect parallelism between the column and spindle. Easy clamping device fitted for locking it on the column.
  • Durable Spindle – Made from EN8 material to withstand distortion. It is balanced and mounted on roller bearings for smooth operation.
  • Sturdy Work Table – Proportionately designed for rigidity and sufficient surface area is provided to hold down jobs. It can be vertically powered or raised by worm and rack (19mm). The slotting is provided to hold heavy jobs.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1 Categories: , , ,

Description

19mm Tapping Machine

A heavy-duty industrial tapping machine designed for precision operations with enhanced capacity.This robust machine features a 19mm tapping capacity and 12mm drilling capacity, making it ideal for various metalworking applications requiring reliability and precision.

Specification
Value
Tapping Machine Capacity
19 mm
Drilling Capacity
12 mm
Spindle Travel/Table travel (6 mm.)
100 mm
Distance Spindle to Column
237 mm
Distance between chuck to base
670 mm
Distance between chuck to work table
520 mm
Size of base Plate-L x B
550 x 410 mm
Size of Work Table-L x B
260 x 260 mm
Diameter of Column
74 mm
V-Belt (Inside)
Inside B-72
V-Belt for Motor (Outside)
B-32
No. of Spindle Speeds
3
Forwards Speeds Range
220/320/460
Reverse Speeds Range
260/380/545
Motor Single phase or three phase
1/1.5 H.P.
Motor Speed
1440 R.P.M.
Overall Height
1400 mm
Overall Width
400 mm
Overall front to back
700 mm
Weight approx
150 Kg
