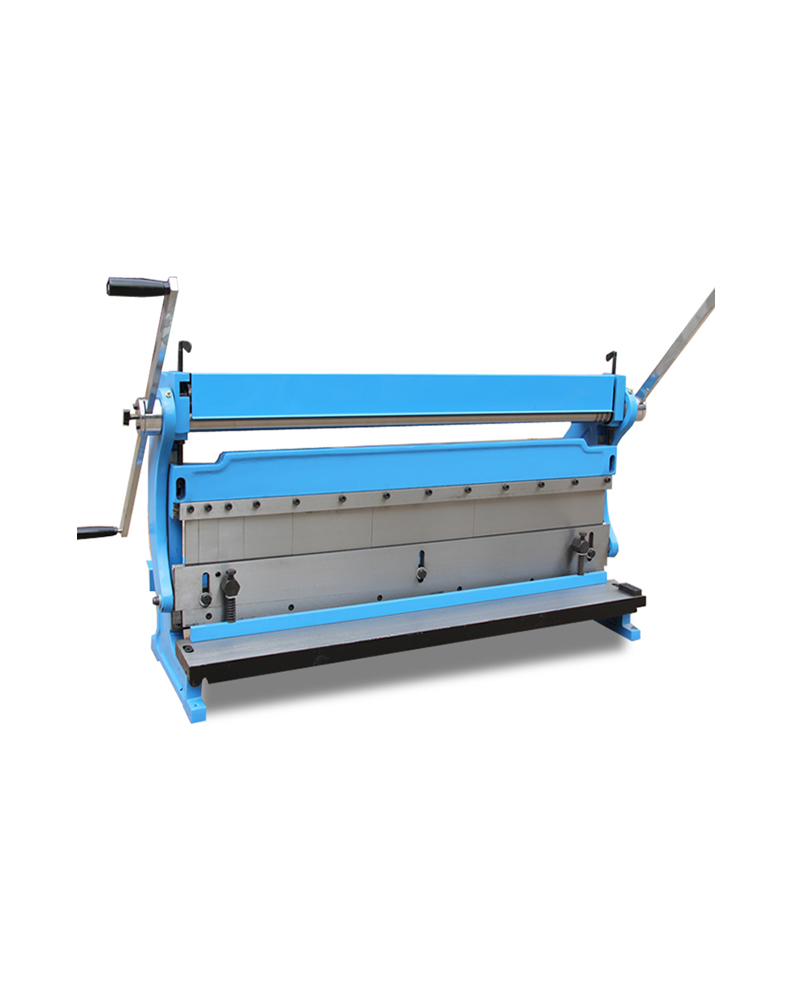

3-in-1 Combination Shear, Brake & Roll Machine

Key Features:

  • Performs shearing, bending, and rolling in one unit.
  • Max. folding angle: 90° for precise bends.
  • Sectional fingers allow for custom box and pan formations.
  • Ideal for household, workshop, or factory use.
  • Compact design and easy operation.
SKU: NMDE-002-1-2-1-2-1 Categories: ,

Description

The 3-in-1 Shear, Brake, and Roll Machine is a versatile and space-saving solution designed for workshops and factories. This multi-functional machine combines shearing, bending, and rolling capabilities into a single unit, making it perfect for sheet metal fabrication tasks. With a maximum folding angle of 90 degrees, adjustable sectional fingers for box and pan work, and a processing range from 200mm to 1320mm, it offers superior flexibility for a wide range of operations.

Model 1320 Specifications:

  • Bed width: 1320 mm
  • Max. shearing, bending, and rolling thickness: 1 mm
  • Min. rolling diameter: 43 mm
  • Packing size: 169×57×78 cm
  • Weight (Net/Gross): 440/480 kg
Machine Specification 305 610 760 1016 1067 1320
Bed width 305 mm 610 mm 760 mm 1016 mm 1067 mm 1320 mm
Max shearing Thickness 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm
Max bending Thickness 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm
Max bending Angle 90° 90° 90° 90° 90° 90°
Max Rolling Thickness 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm
Min Rolling Diameter 39 mm 39 mm 39 mm 43 mm 43 mm 43 mm
Packing size 50×34×42 cm 87×46×68 cm 99×42×65 cm 131×52×75 cm 142×50×73 cm 169×57×78 cm
N.W/G.W 45/46 kg 100/120 kg 120/140 kg 220/240 kg 260/280 kg 440/480 kg
