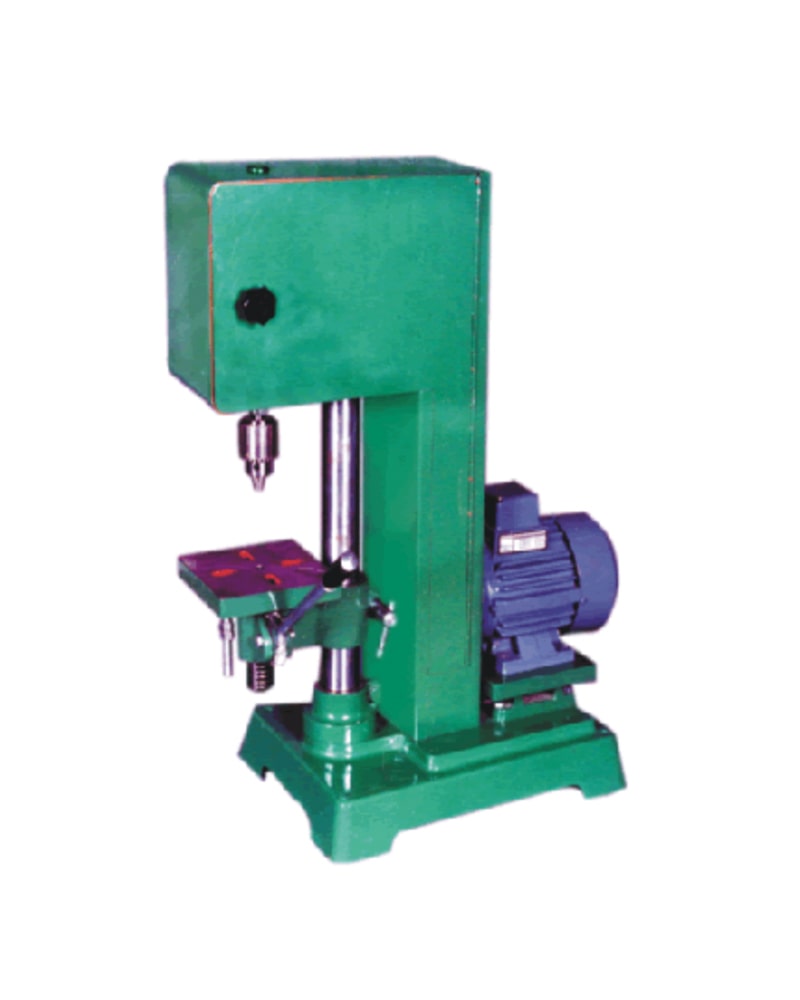

6 mm Tapping Machine
Features:
- 6 MM Tapping Machine’s Clutch Cone: Specially heat lather cone also provides specially treated silicon liner cone.
- Head: Made from close-grained cast iron accurately bored, rimering, and honed in perfect parallel alignment between the column and spindle. Easy clamping device fitted for locking it on the column.
- Spindle: Made from EN8 to withstand distortion, it is lanced and mounted on roller bearings.
- Table: Proportionately designed for rigidity and sufficient surface area to hold down jobs. Can be vertically powered or raised by worm and rack (19 mm). Slotting provided for holding heavy jobs.
- Base: Designed to provide sufficient area for heavy jobs. Slots are provided for convenient holding.
Description
6 MM Tapping Machine
The 6 mm Tapping Machine is designed for precision and durability, making it ideal for small to medium-scale tapping and drilling operations. Its robust cast iron construction, smooth spindle travel, and adjustable work table ensure stability, accuracy, and ease of operation. It is compact yet powerful, suitable for workshops handling light to medium-duty jobs.
|
Tapping Machine Capacity
|
6 mm
|
|
Drilling Capacity
|
3 mm
|
|
Spindle Travel/Table travel (6 mm)
|
60 mm
|
|
Distance Spindle to Column
|
80 mm
|
|
Distance between chuck to base
|
190 mm
|
|
Distance between chuck to work table
|
Movable
|
|
Size of base Plate (L x B)
|
370 x 250 mm
|
|
Size of Work Table (L x B)
|
150 x 150 mm
|
|
Diameter of Column
|
47 mm
|
|
V-Belt (Inside)
|
–
|
|
V-Belt for Motor (Outside)
|
A-36
|
|
No. of Spindle Speeds
|
3
|
|
Forward Speeds Range
|
480 / 750 / 1400
|
|
Reverse Speeds Range
|
480 / 750 / 1401
|
|
Motor (Single phase or Three phase)
|
0.25 H.P.
|
|
Motor Speed
|
1440 R.P.M.
|
|
Overall Height
|
650 mm
|
|
Overall Width
|
270 mm
|
|
Overall Front to Back
|
540 mm
|
|
Weight Approx
|
50 Kg
|
