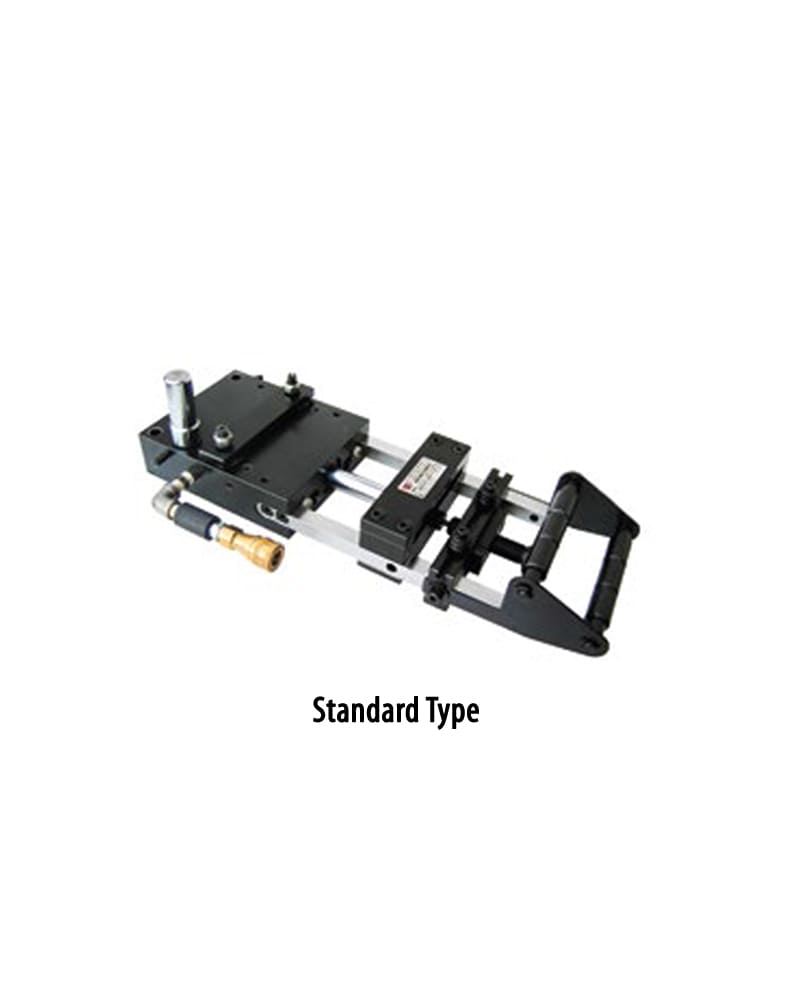

AF Pneumatic Air Feeder
Feature
- Air Fider is flexible and adaptable to different materials.
- Fast feeding speed and long feeding distance.
- Large feeding capacity with low energy consumption.
- Simple structure, lightweight, and easy to operate.
- Continuous feeding without damaging materials.
- Stable and safe operation.
- Easy maintenance with low repair costs.
Description
AF Pneumatic Air Feeder
The AF Pneumatic Air Feeder is a versatile and efficient feeding solution suitable for a wide range of materials. It offers fast feeding speed, large capacity, and low energy consumption. The feeder is lightweight, simple to operate, and ensures stable operation while minimizing maintenance costs.
|
Model
|
AF-1C
|
AF-2C
|
AF-3C
|
AF-4C
|
AF-5C
|
AF-6C
|
AF-7C
|
AF-8C
|
AF-9C
|
AF-10C
|
AF-11C
|
| Max Feeding Width (mm) |
50
|
65
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
| Max Feeding Length (mm) |
50
|
80
|
80
|
130
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
| Max Feeding Thickness (mm) |
0.5
|
0.8
|
1.2
|
1.5
|
2
|
2
|
2.5
|
2.5
|
3
|
3
|
|
| Air Press (kg/cm²) |
4.5
|
||||||||||
| Speed max. (次/min) |
200
|
160
|
150
|
93
|
80
|
60
|
48
|
40
|
35
|
30
|
25
|
| Fixed Stock cl. Force (kg) |
10
|
27
|
40
|
55
|
78
|
78
|
90
|
100
|
119
|
||
| Movable Stock cl. Force (kg) |
30
|
49
|
65.5
|
72.5
|
144.5
|
169
|
200
|
217
|
220
|
245
|
|
| Pulling cl. Force (kg) |
14
|
16.5
|
19.5
|
25.5
|
41
|
67
|
74
|
77
|
85
|
||
| Air Consump. L/min |
26.5
|
38.5
|
47
|
58.5
|
109.5
|
108.5
|
152
|
162.5
|
174.2
|
182.5
|
185
|
| Weight (Include Tool) kg |
8.8
|
9.6
|
12.8
|
19.6
|
38.4
|
52.4
|
80
|
95
|
156
|
178
|
200
|
