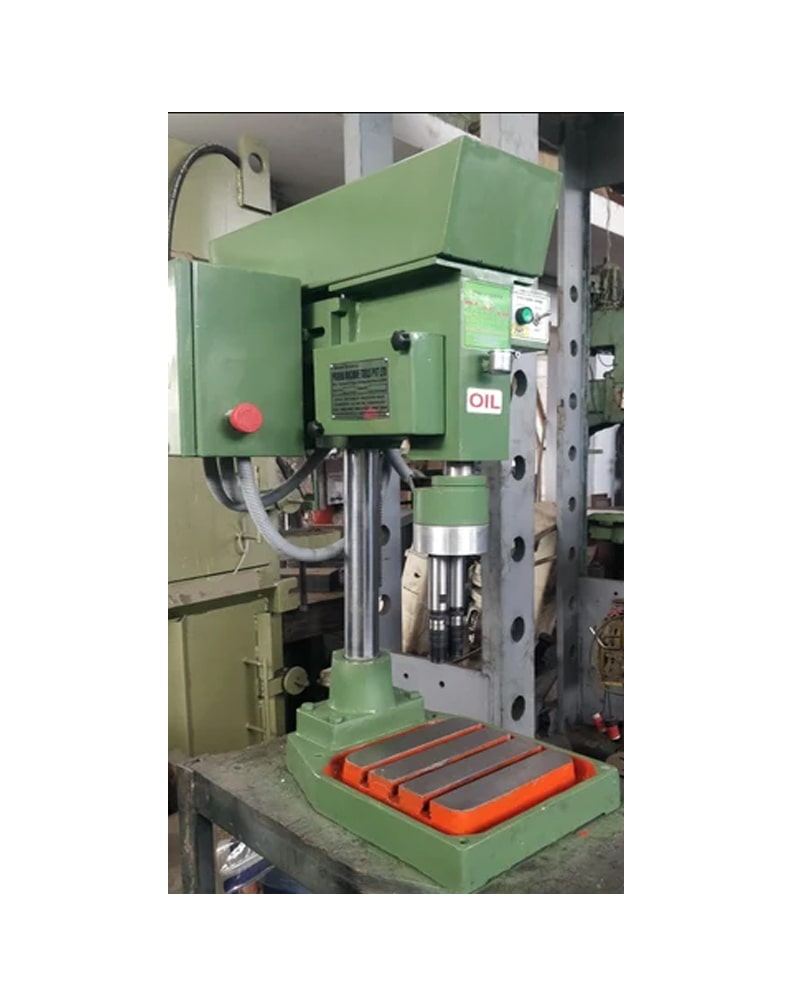

Pitch Control Tapping Machines – DM Series
Precision Tapping and Drilling Solutions for Industrial Applications
The DM Series represents a comprehensive range of high-precision tapping machines designed for efficient and accurate threading operations. These robust machines offer versatile capabilities for both drilling and tapping applications across various materials including steel and cast iron. With advanced pitch control technology and multiple spindle speed options, these machines ensure consistent performance and superior thread quality in industrial manufacturing environments.
Description
Features:
- Versatile Capacity Range – Multiple models offering tapping capacities from M4 to M10 and drilling capacities up to Ø15mm, suitable for various industrial applications.
- Precision Spindle Control – Four-speed spindle systems with precise speed ranges optimized for different materials and thread sizes, ensuring perfect thread formation.
- Robust Construction – Heavy-duty base plates with T-slots provide stable clamping surfaces for secure workpiece positioning during operations.
- Advanced Motor System – 0.37KW/0.5HP 3-phase motors with 1000 RPM capability deliver consistent power for demanding tapping operations.
- Flexible Configuration – Multiple spindle nose taper options (JT and MT) accommodate various tooling requirements for different applications.
- Safety & Control – 220V control voltage system with comprehensive electrical protection ensures safe operation in industrial environments.
|
Model No.
|
DM-06TP-F
|
DM-13TP-F
|
DM-13TD-F
|
DM-04TP-F
|
DM-08TP-F
|
| Drilling Capacity(steel( 60kg./sq.mm)/cast Iron) |
Ø13 / Ø15
|
||||
| Tapping capacity(steel(60kg./sq.mm)/cast Iron) |
M4 / M5
|
M 8 / M 10
|
M 8 / M 10
|
M4 / M6
|
M8 / M10
|
| Minimum size of Drilling – Tapping Operation |
M 2.5
|
M 4
|
M 4
|
M 2
|
M 4
|
| Spindle | |||||
| Spindle Nose Taper (normal) ( T ) |
JT-1(Male)
|
MT-1 (Female)
|
MT-1 (Female)
|
MT-1 (Female)
|
MT-1 (Female)
|
| Spindle Nose Taper (optional) ( T ) | |||||
| Spindle Stroke ( S ) |
50
|
100
|
100
|
50
|
65
|
| Spindle Speeds |
4
|
4
|
4
|
4
|
4
|
| Spindle Speed Range – ( I Speed ) |
400-900-1400-2500
|
355-630-1120-2000
|
355-630-1120-2000
|
180-224-400-630
|
355-630-1120-2000
|
|
1250-3000-4500-8000
|
|||||
| Spindle Speed Range – ( II Speed ) | |||||
| Spindle Feed |
Lead Screw
|
Lead Screw
|
Manual
|
Lead Screw
|
Lead Screw
|

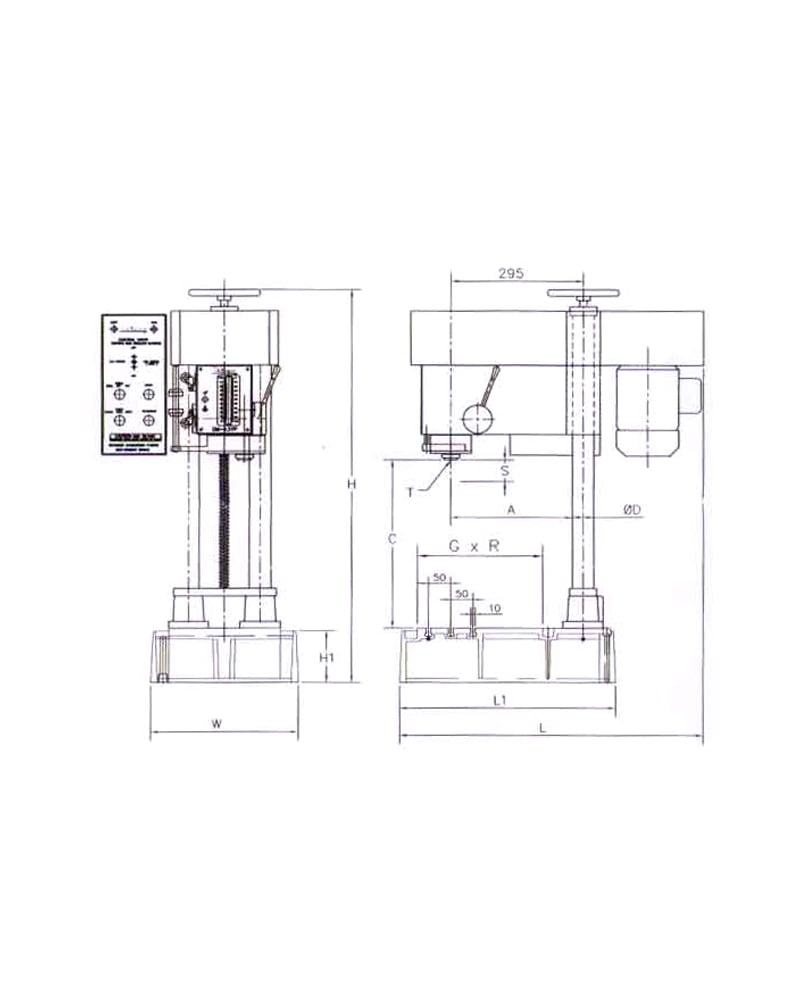

| Spindle Axis to column Face ( throat ) ( A ) |
270
|
270
|
270
|
265
|
170
|
| Spindle Axis to column Axis |
295
|
295
|
295
|
190
|
190
|
| Spindle Nose to Base Plate (min./ max) ( C ) |
100 / 345
|
100 / 345
|
125 / 370
|
135 / 325
|
135 / 325
|
| Cloumn Diameter (O.D.) ( D ) |
48
|
48
|
48
|
40
|
40
|
| Clamping Area on Base Plate ( Q x R ) |
250 x 280
|
250 x 280
|
250 x 280
|
320 x 350
|
280 x 370
|
| T Slots on Base Plate (Size / Pitch / Nos.) |
10 / 50 / 3
|
10 / 50 / 3
|
10 / 50 / 3
|
10 / 100 / 2
|
10 / 100 / 2
|
| Motor( 3 Ph ) (KW / HP) |
0.37/ 0.5
|
0.37/ 0.5
|
0.37/ 0.5
|
0.37/ 0.5
|
0.37/ 0.5
|
| Motor RPM |
1000 (Rev.)
|
1000 (Rev.)
|
1000 (Rev.)
|
1000 (Rev.)
|
1000 (Rev.)
|
| Electric Supply |
415V,3Ph,50Hz
|
415V,3Ph,50Hz
|
415V,3Ph,50Hz
|
415V,3Ph,50Hz
|
415V,3Ph,50Hz
|
| Control Voltage |
220V,1Ph,50Hz
|
220V,1Ph,50Hz
|
220V,1Ph,50Hz
|
220V,1Ph,50Hz
|
220V,1Ph,50Hz
|
| Overall size of Base Plate ( W x L1 x H1 ) |
320 x 470 x 125
|
320 x 470 x 125
|
320 x 470 x 125
|
280 x 370x 65
|
280 x 370x 65
|
| Belt Type |
Flat
|
V Belt
|
V Belt
|
Flat
|
V Belt
|
| Overall size of Machine ( W x L x H ) |
320 x 705 x 895
|
320 x 705 x 895
|
320 x 705 x 895
|
280 x 580 x 620
|
280 x 580 x 620
|
| Machine Weight in Kgs. |
105
|
110
|
110
|
82
|
82
|
