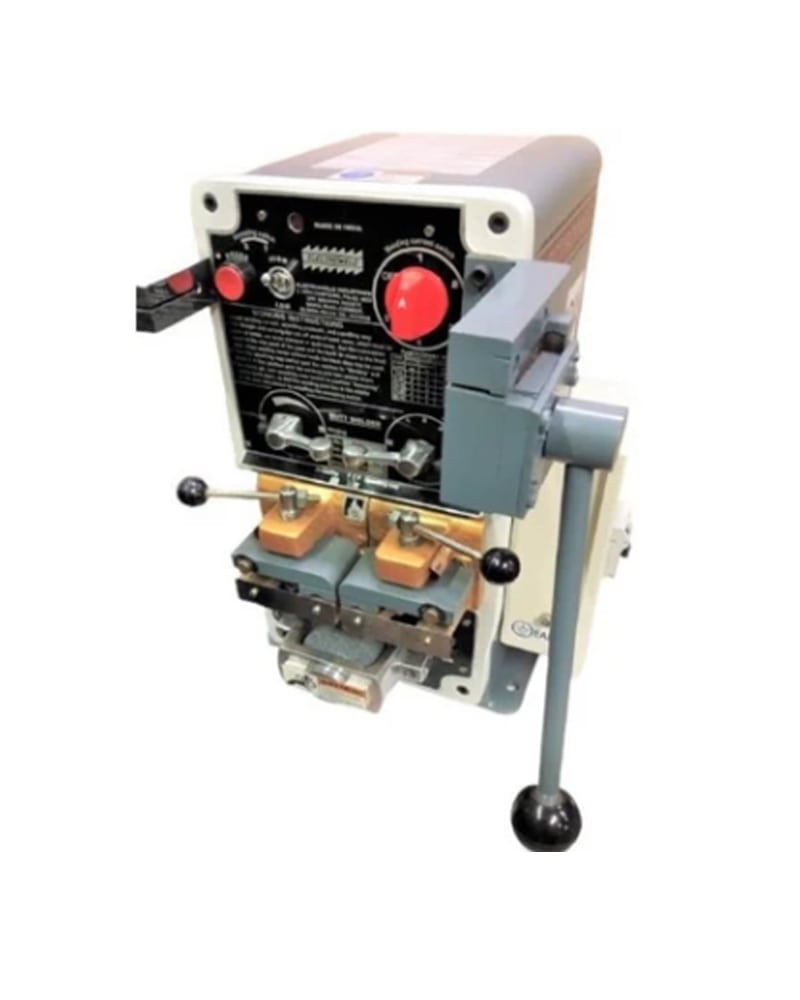

Bandsaw Butt Welding Machine
Key Features :

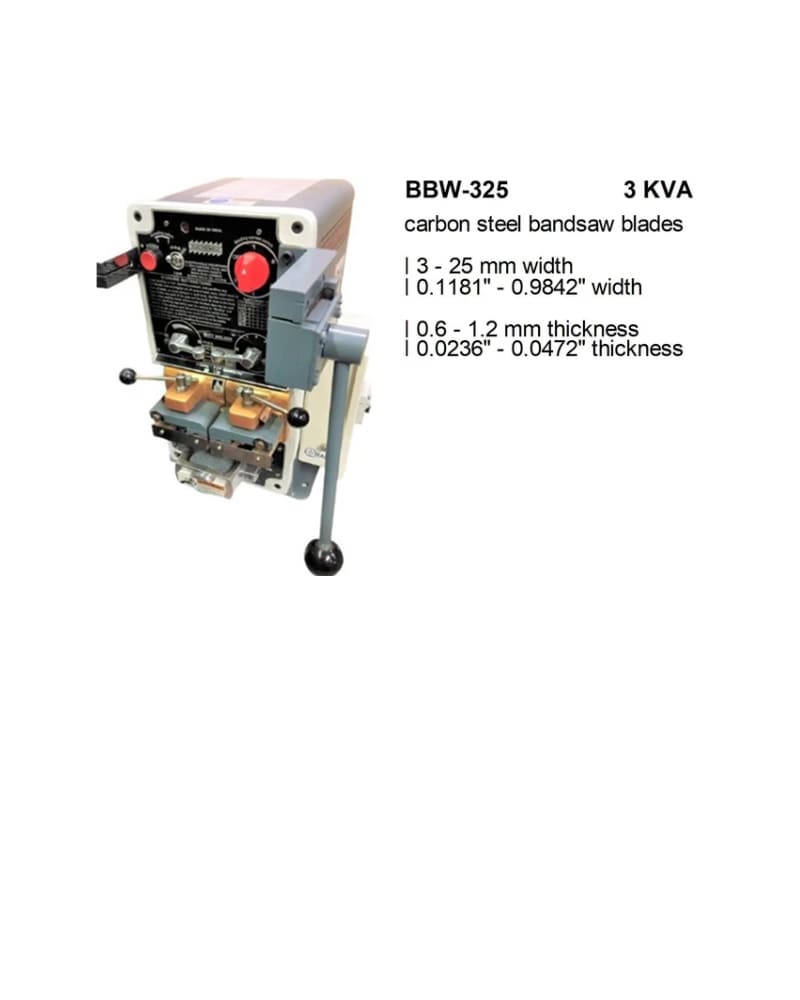

BBW-325 Model Specifications
Electrical Specifications
- Nominal Capacity: 3 KVA
- Input Voltage: 230V AC (±10%)
- Phases: 1
- Frequency: 50/60 Hz
- Max Current: 13 Amps
Description
Bandsaw Butt Welding Machine
The Bandsaw Butt Welding Machine series is designed for efficient and precise welding of bandsaw blades, catering to various industrial applications. These machines utilize advanced butt welding technology to create strong, durable welds on carbon steel and bi-metal bandsaw blades.
With models ranging from compact manual units to larger pneumatic systems, the series accommodates blade widths from 3mm to 125mm (0.1181″ to 5″) and thicknesses from 0.6mm to 1.6mm (0.0236″ to 0.063″). Each machine features integrated grinding capabilities and is engineered for reliable performance with duty cycles optimized for industrial use.
Blade Compatibility
- Material: Carbon Steel Bandsaw Blades
- Width: 3-25 mm (0.1181″-0.9842″)
- Thickness: 0.6-1.2 mm (0.0236″-0.0472″)
Physical Specifications
- Type: Manual
- Net/Gross Weight: 25/35 kg
- Dimensions: 275×235×225 mm (11″×10″×9″)
- Duty Cycle: 5%
|
Model
|
BBW-325
|
BBW-535
|
BBW-631
|
BBW-640
|
BBW-645
|
BBW-1231PN
|
BBW-1241PI
|
FBW-2754PN
|
FBW-4165PN
|
FBW-75125PN
|
|
Nominal Capacity (KVA)
|
3
|
5
|
12
|
15
|
18
|
12
|
15
|
30
|
40
|
50
|
|
Grinder (KVA)
|
0.12
|
0.12
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
|
Input Volts (V AC)
|
230 V AC (±10%)
|
230 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
415 V AC (±10%)
|
|
Phases (nos.)
|
1
|
1
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Frequency (Hz)
|
50 / 60
|
|||||||||
|
Input Max. Current (Amps)
|
13
|
20
|
28
|
36
|
40
|
28
|
36
|
75
|
100
|
130
|
|
Mains Supply Cable Size – Copper (mm²)
|
6
|
10
|
12
|
15
|
18
|
12
|
15
|
35
|
40
|
55
|
|
Machine Duty Cycle
|
5%
|
5%
|
5%
|
5%
|
5%
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Physical Specifications
|
||||||||||
|
Net / Gross Weight (kg.)
|
25 / 35
|
28 / 38
|
44 / 54
|
54 / 64
|
56 / 75
|
100/125
|
100/125
|
150/200
|
160/210
|
170/220
|
|
Dimensions (mm)
|
275×235×225
|
275×255×225
|
760×540×640
|
760×540×640
|
760×540×640
|
760×430×1220
|
760×430×1220
|
1650×975×1500
|
||
|
Dimensions (inches)
|
11″×10″×9″
|
11″×10″×9″
|
30″×21″×25″
|
30″×21″×25″
|
30″×21″×25″
|
30″×17″×48″
|
30″×17″×48″
|
65″×40″×60″
|
||
|
Type
|
Manual
|
Manual
|
Manual
|
Manual
|
Manual
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
|
Blade Compatibility
|
||||||||||
|
Material to be welded
|
Carbon Steel Band Saw Blades
|
Carbon Steel Band Saw Blades
|
Bi-Metal Band Saw Blades
|
Bi-MetalBand Saw Blades
|
Carbon Steel and Bi-Metal Band Saw Blades
|
Carbon Steel and Bi-Metal Band Saw Blades
|
Carbon Steel and Bi-Metal Band Saw Blades
|
Carbon Steel and Bi-Metal Band Saw Blades
|
Carbon Steel and Bi-Metal Band Saw Blades
|
Carbon Steel and Bi-Metal Band Saw Blades
|
|
Blade Widtd (mm)
|
3 – 25 mm
|
5 – 35 mm
|
12 – 31 mm
|
12 – 41 mm
|
30 – 45 mm
|
12 – 31 mm
|
12 – 41 mm
|
27 – 54 mm
|
41 – 65 mm
|
75 – 125 mm
|
|
Blade tdickness (mm)
|
0.6 to 1.2
|
0.6 to 1.2
|
0.8 to 1.4
|
0.8 to 1.4
|
0.8 to 1.4
|
0.8 to 1.4
|
0.8 to 1.4
|
0.9 to 1.6
|
0.8 to 1.4
|
0.8 to 1.4
|
|
Blade Widtd (inches)
|
0.1181″ to 0.9842″
|
0.1968″ to 1.3779″
|
0.4724″ to 1.2205″
|
0.4724″ to 1.6141″
|
1.1811″ to 1.7716″
|
0.4724″ to 1.2205″
|
0.4724″ to 1.6141″
|
1.0629″ to 2.1259″
|
1.6141″ to 2.5590″
|
3.0000″ to 5.0000″
|
|
Blade tdickness (inches)
|
0.0236″ to 0.0472″
|
0.0236″ to 0.0472″
|
0.0314″ to 0.0551″
|
0.0314″ to 0.0551″
|
0.0314″ to 0.0551″
|
0.0314″ to 0.0551″
|
0.0314″ to 0.0551″
|
0.0314″ to 0.0551″
|
||
