Bench Lathe CQ6230D
Standard Accessories:
- 3 Jaw chuck (Φ160mm)
- Change Gears Set
- M.T.#3 Dead Centers
- M.T.#5/3 Reduction Sleeve
- Oil gun
- Splash Guard
- Foot stands
- Tool Box & Tools
- Oil Tray
Description

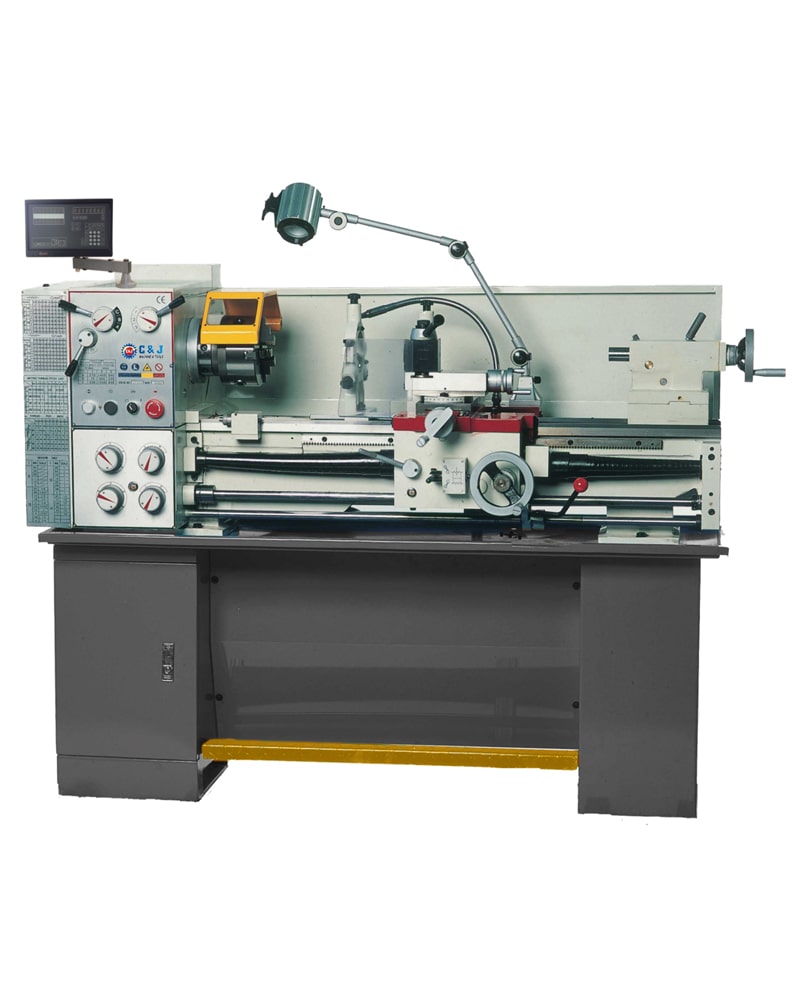

CQ6230D Bench Lathe
- Precision ground and hardened bedways
- The spindle is supported with precision roller bearings.
- Head stock gears are made of high quality steel ground and hardened.
- Two different length beds are available.
- Removable gap is provided for large diameter work.
- Two speed motor for optional.
- Easy operation gear box has various feeds and thread cutting function.
- With or without foot standard for optional.
- Right angle appearance or circular appearance for optional.
Optional Accessories
- 4 Jaw chuck (Φ200mm)
- Face Plate
- Steady Rest
- Follow Rest
- Work Light
- Foot Brake System
- Coolant System
- Live Center
- Drill Chuck + Drill Arbor
- Leadscrew Guard
- Chuck Guard
- Localizer
- Clutch For Feed Rod
- Quick Change Tool Post
- Digital Readout (2 Axis)
|
Model
|
CQ6230D(Variable-speed)
|
|||||
|
Capacity
|
Swing over bed |
300mm
|
12″
|
300mm
|
12″
|
|
| Swing over cross slide |
178mm
|
7″
|
178mm
|
7″
|
||
| Swing in gap diameter |
430mm
|
17″
|
430mm
|
17″
|
||
| Lengtd of workpiece |
714/914mm
|
28″/36″
|
914mm
|
36″
|
||
| Lengtd of turning |
560/760mm
|
22″/30″
|
760mm
|
30″
|
||
|
Spindle
|
Spindle bore |
38mm
|
1-1/2″
|
38mm
|
1-1/2″
|
|
| Taper of spindle bore |
MT NO. 5
|
MT NO. 5
|
||||
| Range of spindle speed (9 steps) |
75~1400r/min
|
60~400r/min or 380~2200r/min
|
||||
| Quill taper |
MT NO. 3
|
MT NO. 3
|
||||
|
Feed
|
Range of metric tdreads to be cut (26 kinds) |
0.4-7mm
|
0.4-7mm
|
|||
| Range of inch tdreads to be cut (34 kinds) |
4-56T.P.I
|
4-56T.P.I
|
||||
| Longitudinal feed per revolution of spindle (32 kinds) |
3mm
|
8T.P.I
|
3mm
|
8T.P.I
|
||
| Pitches of tdree feed leadscrews |
0.052~1.392
|
0.002~0.0548
|
0.052~1.392
|
0.002~0.0548
|
||
| Cross feed per revolution of spindle (32 kinds) |
0.014~0.38
|
0.0007~0.0187
|
0.014~0.38
|
0.0007~0.0187
|
||
|
Travel
|
Max. longitudinal travel of saddle |
600/800mm
|
23-1/2″/31-1/2″
|
800mm
|
31-1/2″
|
|
| Max. travel of cross slide |
160mm
|
5-5/16″
|
160mm
|
5-5/16″
|
||
| Max. travel of top slide |
85mm
|
3-1/4″
|
85mm
|
3-1/4″
|
||
|
Tailstock
|
Quill travel |
95mm
|
3-3/4″
|
95mm
|
3-3/4″
|
|
|
Others
|
Main motor power |
1.5HP (1.1kW)
|
1.5HP (1.1kW)
|
|||
| Motor frequency |
60Hz or 50Hz
|
60Hz or 50Hz
|
||||
| Motor voltage |
380/415V/115/230V or 110/200V
|
380/415V/115/230V or 110/200V
|
||||
| Overall dimensions (L W H) |
160X73X127cm
|
160X73X127cm
|
||||
| Net weight |
480kg
|
480kg
|
||||
| Packing size (L W H) |
148/168X75X142cm
|
168X75X142cm
|
||||
