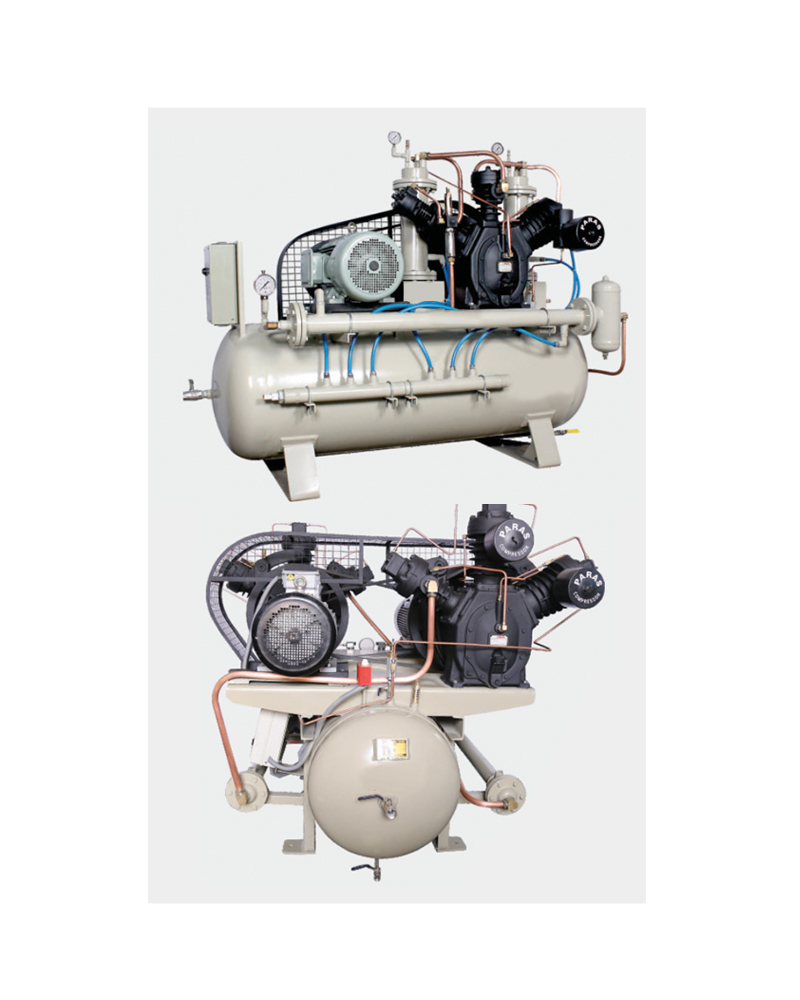

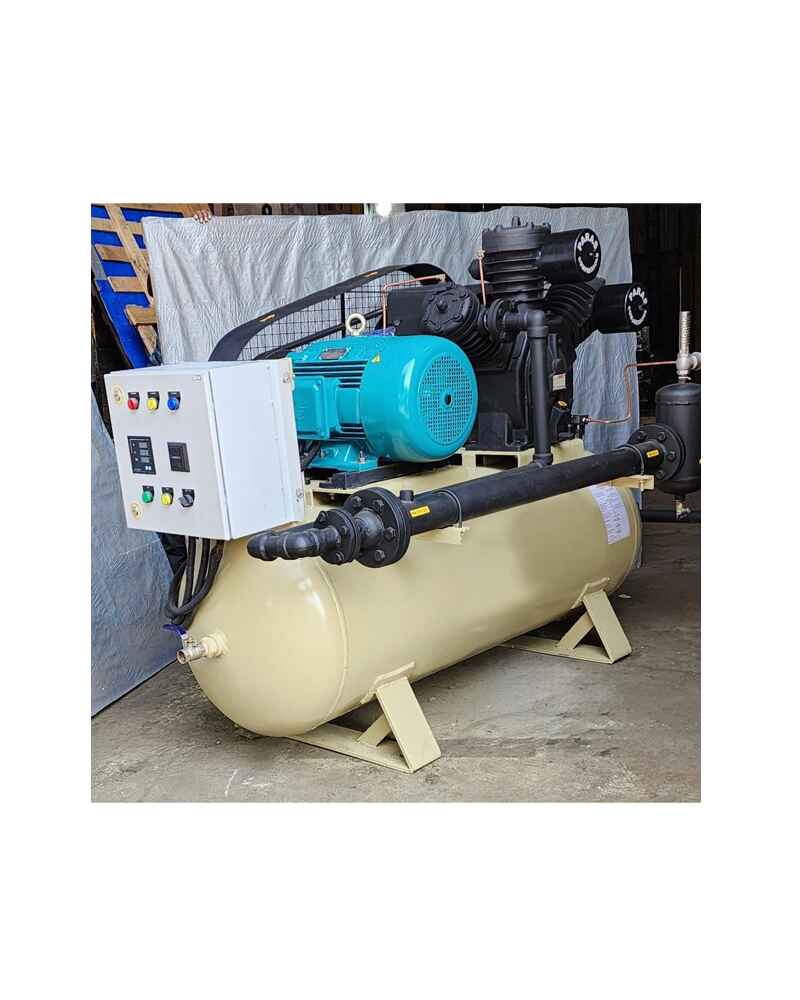

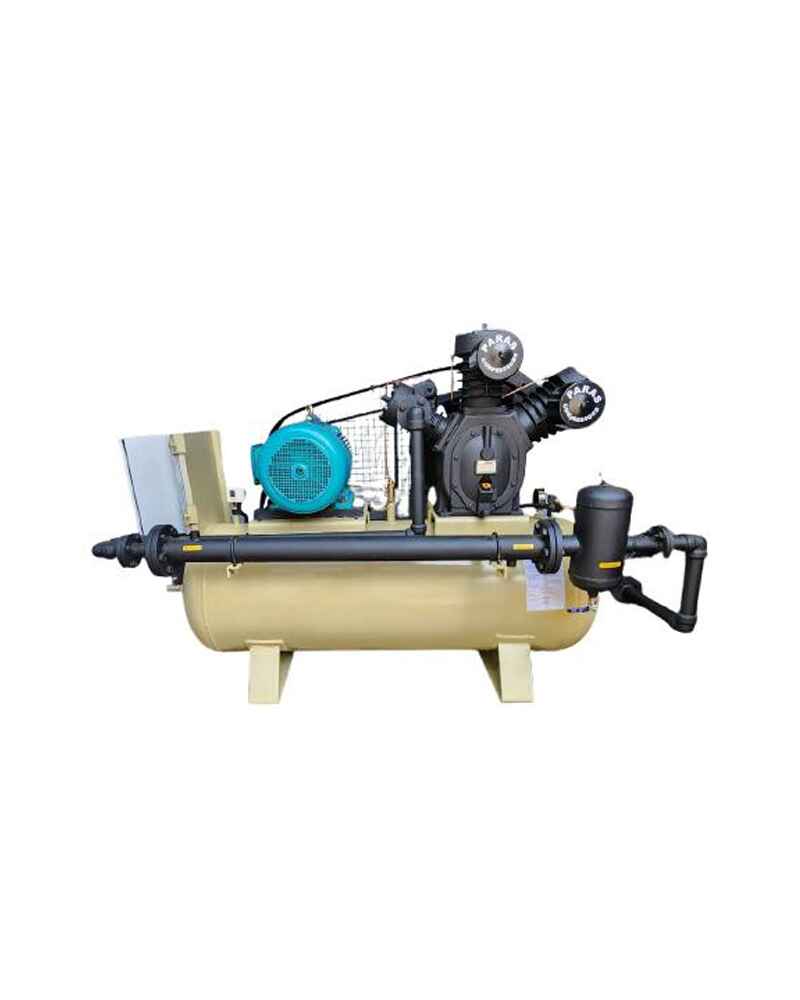

Booster Air Compressor – High Pressure Models
Our high-performance Booster Air Compressors are designed for industrial applications requiring exceptional pressure capabilities. Featuring multi-stage compression with optional inter-cooling, these systems deliver superior performance and extended reliability for all moving components. Available in both standard and duplex configurations, our compressors are engineered to meet the most demanding operational requirements.
Description
Booster Air Compressor – High Pressure Models
Multi-Stage High Pressure Air Cooled/Water Cooled Systems
Multi-Stage Design – Advanced multi-stage compression system for higher efficiency and pressure output.
Cooling Options – Available in both air-cooled and water-cooled variants with optional inter-cooling.
Enhanced Reliability – Engineered for longer service life with robust components and precision manufacturing.
High Pressure Capability – Capable of delivering pressures up to 1000 PSIG for demanding applications.
Standard Compressor Models – Multi Stage High Pressure Air Cooled/Water Cooled with Optional Inter Cooling for higher performance & longer reliability of moving components
|
( Multi stage high pressure Air Cooled / Water Cooled ( Optional inter cooling )for higher perfomance & loger reliablity of moving components )
|
|||||||
|
Model
|
Motor H.P.
|
No. of Cylinder
|
Piston Displacement C.F.M
|
Free Air Delivery C.F.M
|
Max. Pressure PSIG
|
Air Receiver (ltrs) (horr)
|
|
|
Kg
|
CM2
|
||||||
| PC-23-231 |
3
|
2
|
7.4
|
4.8
|
500
|
35.15
|
100/150
|
| PC-23-251 |
5
|
2
|
10.8
|
6.45
|
500
|
35.15
|
100/150
|
| PC-23-7174 |
5
|
2
|
13.1
|
6.4
|
1000
|
70.00
|
200/300
|
| PC-23-772 |
7.5
|
2
|
24
|
14.3
|
500
|
35.15
|
300
|
| PC-23-772 |
10
|
2
|
36
|
23
|
285
|
20
|
300
|
| PC-23-772 |
10
|
2
|
31.95
|
18.35
|
500
|
35.15
|
300
|
| PC-23-772 |
12.5
|
2
|
36
|
29
|
355
|
25
|
300/500
|
| PC-23-772 |
12.5
|
2
|
36
|
21.6
|
500
|
35.15
|
300/500
|
| PC-23-772 |
15
|
2
|
40.5
|
24.3
|
500
|
35.15
|
300/500
|
| PC-23-1512 (SP) |
15
|
3
|
41.22
|
34
|
425
|
30
|
500
|
| PC-23-1512 |
15
|
3
|
35.75
|
26.6
|
1000
|
70
|
500
|
| PC-23-1512 (SP) |
20
|
3
|
49.5
|
42
|
425
|
30
|
500
|
| PC-23-1512 |
20
|
3
|
49.5
|
36.9
|
1000
|
70
|
500
|
| PC-23-1512 |
15
|
3
|
41.2
|
31.41
|
500
|
35.15
|
500
|
| PC-23-1512 |
20
|
3
|
49.5
|
37.7
|
500
|
35.15
|
500
|
| PC-23-201H |
20
|
3
|
72.68
|
52
|
355
|
25
|
500
|
| PC-23-25H |
25
|
3
|
98.5
|
70
|
355
|
25
|
500
|
| PC-23-15H |
15
|
3
|
54.50
|
45
|
355
|
25
|
500
|
|
Duplex Compressor Models
|
|||||||
|
Model
|
Motor H.P.
|
No. of Cylinder
|
Piston Displacement C.F.M
|
Free Air Delivery C.F.M
|
Max. Pressure PSIG
|
Air Receiver (ltrs) (horr)
|
|
|
Kg
|
CM2
|
||||||
| PC-23-1512 DUPLEX |
20+20
|
3+3
|
98.8
|
75.4
|
500
|
35.15
|
500
|
| PC-23-201H DUPLEX |
20+20
|
3+3
|
145
|
104
|
355
|
25
|
500
|
| PC-23-25H DUPLEX |
25+25
|
3+3
|
197
|
140
|
355
|
25
|
500
|
| PC-23-15H DUPLEX |
15+15
|
3+3
|
108
|
81
|
355
|
25
|
500
|
| PC-23-1512 DUPLEX |
15+15
|
3+3
|
74.1
|
56.58
|
500
|
35.15
|
500
|
