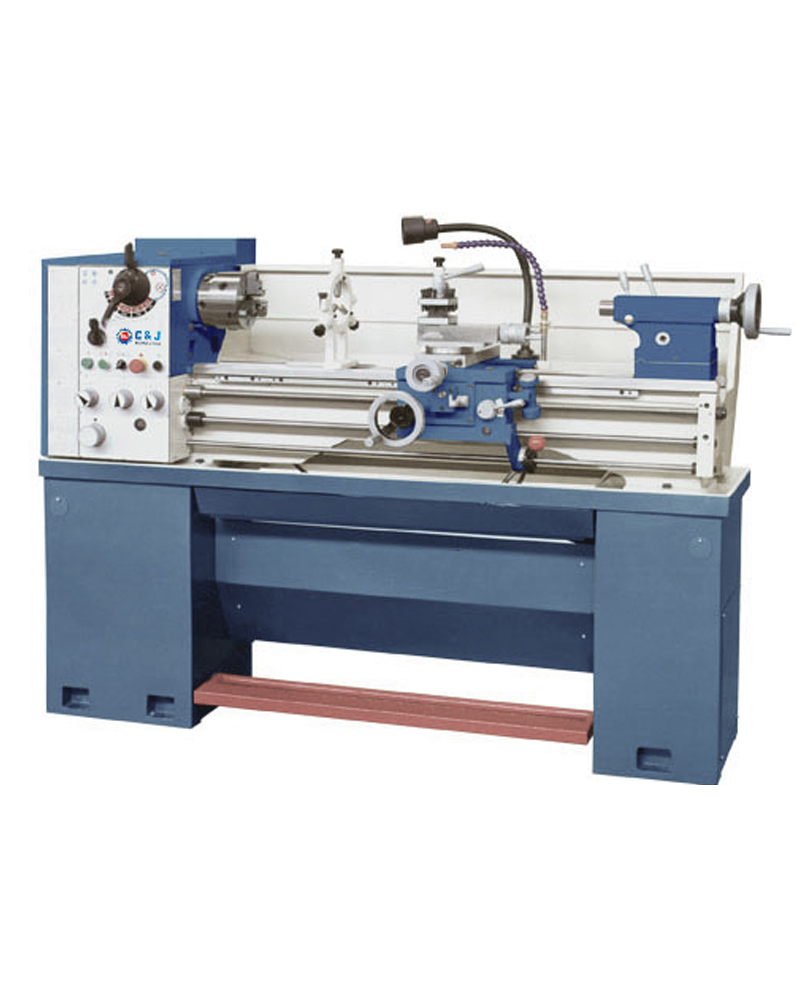

C0636D Metal Bench Lathe Machine
Features :
- Precision ground hardened bedways
- The spindle is supported with precision roller bearings
- Headstock gears are made of high quality steel, ground and hardened
- Removable gap is provided for larger diameter work
- Easy operation speed change levers
- Spindle speed range 70~2000r/min
- Two different length beds are available
- Easy operating gear box has various feeds and thread cutting function
- No change gear in tool box. The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread
- Minimum Cross feed 0.01 mm/rev, Minimum Longitudinal feed 0.046 mm/rev
Description
The C0636D is a precision metal bench lathe machine designed for professional machining applications. It features a robust construction with precision-ground hardened bedways and high-quality steel components. With a spindle speed range of 70-2000r/min and versatile threading capabilities (metric, imperial, diametral, and module threads), this lathe offers exceptional performance for various turning operations. The machine includes convenient features like easy operation speed change levers, a removable gap for larger diameter work, and two different bed length options to suit different workspace requirements.
|
Specification
|
C0632D
|
C0636D
|
| Swing over bed |
330mm (13″)
|
360mm (14″)
|
| Swing over cross slide |
198mm (7-25/32″)
|
224mm (8-13/16″)
|
| Swing in gap diameter |
476mm (18-3/4″)
|
502mm (19-3/4″)
|
| Swing in lengtd |
210mm (8-1/4″)
|
|
| Center height |
166mm (6-1/2″)
|
179mm (7″)
|
| Admits between |
750mm (30″) or 1000mm (40″)
|
|
| Spindle bore |
38mm (1-1/2″) or 40mm (1-9/16″)
|
|
| Spindle nose |
D1-4 or D1-5
|
|
| Taper in nose |
NO.5 morse
|
|
| Speeds number |
8
|
|
| Speeds range |
70-2000r/min
|
|
| Cross slide travel |
170mm (6-11/16″)
|
|
| Compound rest travel |
95mm (3-9/16″)
|
|
| Lead screw tdread |
8T.P.I. or 3mm pitch
|
|
| Feed rod diameter |
19mm (3/4″)
|
|
| Cutting tool max section |
16mm×16mm (5/8″×5/8″)
|
|
| tdreads imperial pitches |
42 Nos. 4-112T.P.I
|
|
| tdreads metric pitches |
44 Nos. 0.1-7mm
|
|
| tdreads diametral pitches |
25 Nos. 16-112DP
|
|
| tdreads module pitches |
34 Nos. 0.1-1.75MP
|
|
| Longitudinal feeds imperial |
24 Nos. 0.00168-0.1175″/rev
|
|
| Longitudinal feeds metric |
24 Nos. 0.046-3.249 mm/rev
|
|
| Cross feeds imperial |
32 Nos. 0.00046-0.03231″/rev
|
|
| Cross feeds metric |
24 Nos. 0.01-0.703 mm/rev
|
|
| Quill diameter |
32mm (1-1/4″) or 42mm (1-21/32″)
|
|
| Quill travel |
100mm (3-15/16″)
|
|
| Quill taper |
NO.3 morse
|
|
| Main motor power |
1.5KW 2PH
|
|
| Coolant pump power |
40W (1/16HP)
|
|
| Packing size (cm) |
168×76×153(750mm) or 193×76×153(1000mm)
|
|
| NG/GW (kg) |
510/630(750mm) or 540/645(1000mm)
|
|
