C1 Micro Lathe Variable Speed 6X10 Mini Lathe

Features :

  • Electric Variable Speed
  • Inside Lead Screw
  • Perfect introduction to metal turning
  • DC Powerful Motor
  • Electric Variable Speed Adjustable
  • Hardened and ground bed guide ways
  • Over-Load Protection
  • Hot invention for beginners
  • Auto and Manual Lead screw Feed
  • Emergency-Stop Push Button
  • ISO9001 Factory With CE Certification
  • Metric and Imperial thread cutting
  • Light weight and fits anywhere
  • Low power electronics
  • Cast iron and steel construction
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2 Categories: , ,

Description

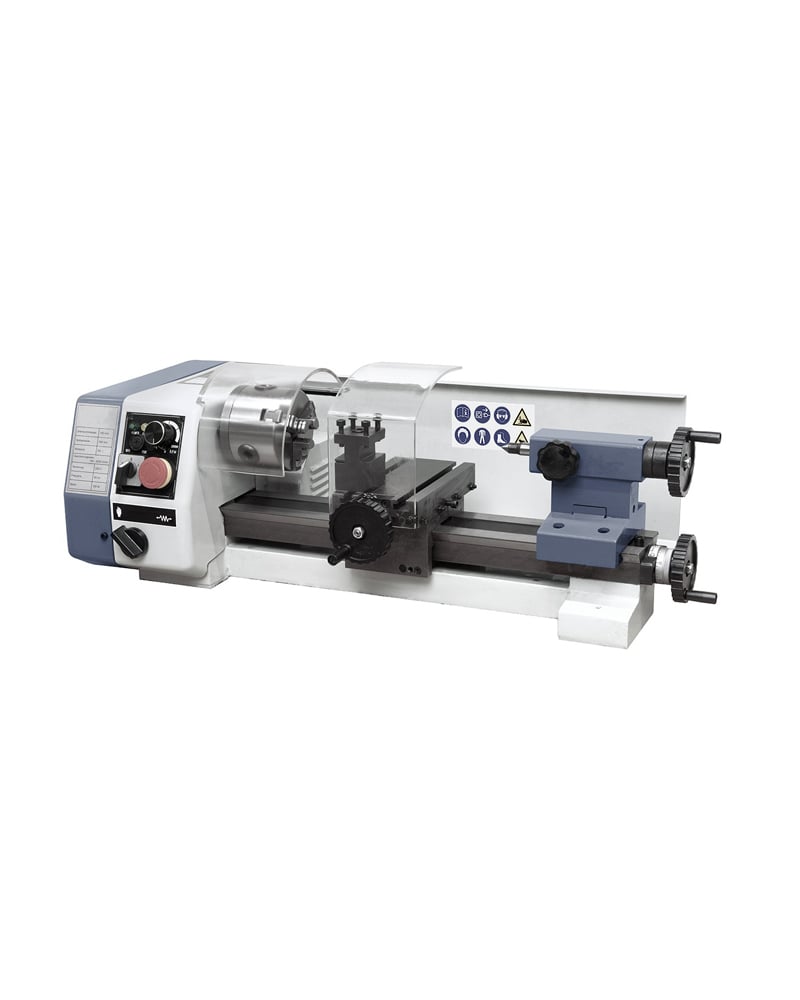

C1 Micro Lathe Variable Speed 6 X 10 Mini Lathe

Such model of MM-C1 Micro Lathe the High Precision Variable Speed 6″ X 10″ inch Metal Mini Lathe is a perfect Hobby Lathe for someone who wants a durable and well-designed metal small lathe that can fit in a small location. This quality metal mini bench Lathe gives model makers, tool makers, gun hobbyists, and the weekend machinist a way to economically produce small precision parts, threaded parts, fittings, and dies. Small in size yet packed full of features, this miniature lathe machine could provide the perfect introduction to those wanting to have a first try at metal turning. The lathe machine is small enough to fit into the corner of a workshop and is light enough to be truly portable. The construction is predominantly of cast iron and steel.

The item of MM-C1 Micro Lathe is the variable speed small metal lathe with control panel conveniently located for easy access contains a variety of functions for lathe machine operation. Functions such as the rotation selector knob, speed dial and clutch knob allow for a variety of adjustments to accommodate your turning needs. Created for the mini lathe machine enthusiast, the MM-C1 Micro Lathe is the new hobby lathe has all the features and precision you demand for small scale turning. In fact, it”’s the perfect small metal lathe for scale model building. Its Lathe Machine Tools includes a three jaw chuck and thread gears, and a full selection of optional accessories is also available for a wide variety of setups.

Product Name
Variable Speed 6″ X 10″ inch Metal Hobby Lathe
Product Item
C1 Micro Lathe
Max. Swing Over bed
Ø 140 mm
Distance Between Centers
250 mm
Hole through Spindle
Ø 10 mm
Spindle Taper
MT 2
Tailstock Taper
MT 1
Swing over Cross Slide
110 mm
Cross Slide Travel
50 mm
Range Of Metric Threads
0.5 – 2 mm ( 5 thread pitches )
Range Of Imperial Threads
16 – 24 TPI ( 5 thread pitches )
Spindle Accuracy
0.01 mm
Spindle Speed
100-2000 RPM
Main Motor
150W
Connecting Voltage
Single Phase 230V or 110V
Frequency
50HZ or 60 HZ
Net Weight
23 KGS
Gross Weight
32 KGS
Packing Size
690 X 350 X 330 mm
Standard Accessory
3-Jaw Self-centering Chuck with internal & external Jaws, MT1 Center, Wrench Set, Oil Cup, Tools and Toolbox
