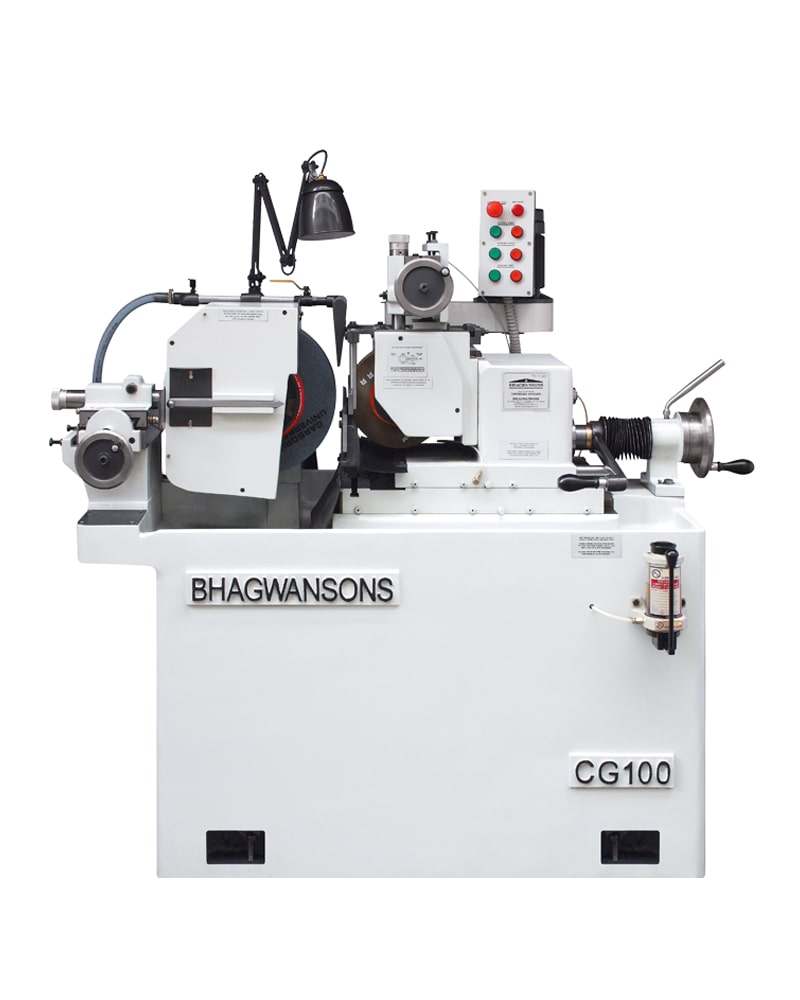

CG-100 Grinding Machine
Features:
- Supports grinding for workpieces from 1 mm to 75 mm in diameter.
- Efficient grinding witd high-speed wheels.
- Adjustable tilting angles for precision alignment.
- Compact dimensions suitable for limited workspace.
- Reliable motor configurations for grinding, regulating, and coolant systems.
Description
CG-100 Grinding Machine
TheCG-100 centerless grinding machine is a compact and efficient grinding solution designed for smaller diameter components. It provides precision grinding with adjustable tilting angles and speed control, making it ideal for fine grinding applications in manufacturing industries.
|
Specification
|
CG-100
|
| Grinding Capacity (Diameter) |
Min. 1 mm – Max. 75 mm
|
| Grinding Wheel Diameter (mm) |
350
|
| Grinding Wheel Widtd (mm) |
100
|
| Grinding Wheel Bore (mm) |
152
|
| Grinding Wheel Speed |
Min. 1800 RPM – Max. 2000 RPM
|
| Regulating Wheel Diameter (mm) |
225
|
| Regulating Wheel Widtd (mm) |
100
|
| Regulating Wheel Bore (mm) |
76
|
| Regulating Wheel Speed |
Min. 20 RPM – Med. 40 RPM – Max. 100 RPM
|
| Tilting Angle |
+5° to -2°
|
| Grinding Wheel Motor |
5.5 / 7.5 KW / HP
|
| Regulating Wheel Motor |
0.75 / 1.0 KW / HP
|
| Coolant Pump Motor |
0.12 / 0.16 KW / HP
|
| Dimensions – Lengtd (mm) |
1700
|
| Dimensions – Widtd (mm) |
1150
|
| Dimensions – Height (mm) |
1530
|
| Centre Height of Wheels (mm) |
1000
|
