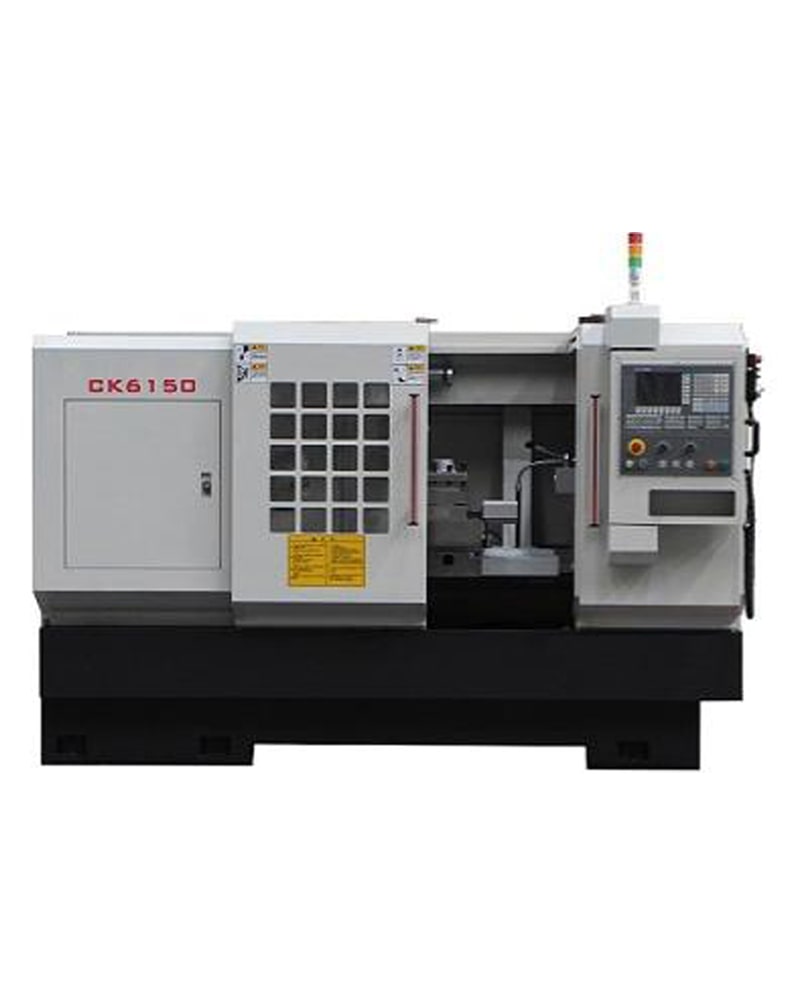

CK6150E Metal Bed CNC Lathe
Features :
- One-piece bed adopts high strength iron to ensure rigidity and precision.
- Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
- Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Description
This document details the features and technical specifications of the CK6150E Metal Bed CNC Lathe. It highlights special design aspects like double V guide-ways for stability, mid-position lead-screw for accuracy, and protective covers. General features include a high-strength one-piece bed for rigidity, ultrasonic quenched guide-ways for wear resistance, and Turcite B on contact surfaces for accuracy. The specifications table provides comprehensive data covering capacity, spindle details, turret and carriage travels, tailstock dimensions, motor power, precision ratings, overall dimensions, and net weight for the CK6150E model.
Machine tool feature
- This model adopts double V guide-ways to ensure processing stabilities.
- Application of mid-position lead-screw installation ensure high accuracy.
- Guide-way and lead-screw adopt full protect cover to avoid chip damage.
|
ITEMS
|
UNIT
|
MODEL CK6150E
|
|
|
Capacity
|
Swing over bed |
mm
|
Φ500
|
| Swing over cross slide |
mm
|
Φ270
|
|
| Distance between centers |
mm
|
1000/1500/2000/3000/4000
|
|
| Widtd of bed way |
mm
|
400
|
|
| Max. load capacity |
T
|
1
|
|
|
Spindle
|
Spindle bore |
mm
|
Φ82
|
| Spindle bore taper |
–
|
Metric Φ90/MT5
|
|
| Spindle nose type |
–
|
C8
|
|
| Spindle speed range |
rpm
|
3 steps/80-1500
|
|
| Chuck size |
mm
|
Φ250
|
|
| Chuck type |
–
|
3-jaw manual
|
|
|
Turret
|
Turret type |
–
|
NC turret 4 position
|
| Tool shank size |
mm
|
25×25
|
|
|
Carriage
|
X axis travel |
mm
|
270
|
| Z axis travel |
mm
|
850/1350/1850/2850/3850
|
|
| X axis rapid traverse speed |
mm/min
|
4000
|
|
| Z axis rapid traverse speed |
mm/min
|
6000
|
|
|
Tailstock
|
Tailstock quill diameter |
mm
|
Φ75
|
| Tailstock quill taper |
mm
|
MT5
|
|
| Tailstock quill travel |
mm
|
150
|
|
|
Motors
|
Main spindle motor |
kW
|
7.5
|
| Coolant pump motor |
kW
|
0.125
|
|
|
Accuracy
|
Positioning accuracy |
mm/m
|
0.020
|
| Repositioning accuracy |
mm/m
|
0.010
|
|
|
Dimensions
|
Widtd × Height |
mm
|
1600×1600
|
| Lengtd |
mm
|
2700/3200/3700/4700/5700
|
|
|
Weight
|
Net weight |
T
|
2.7/3.0/3.3/3.9/4.5
|
