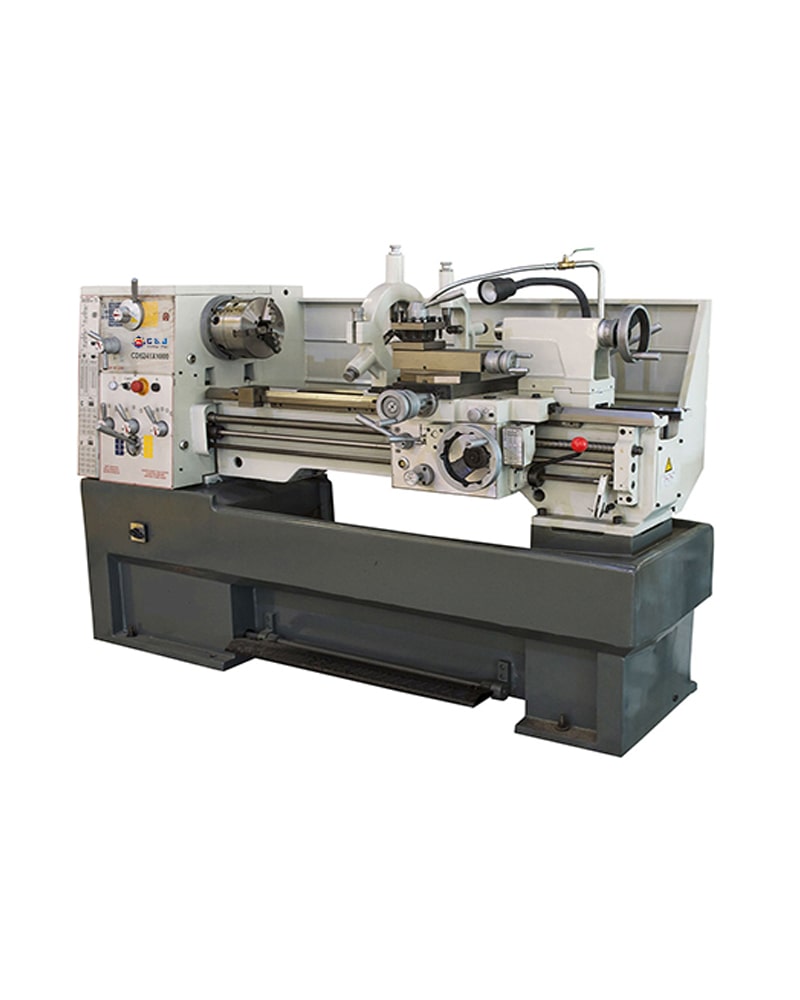

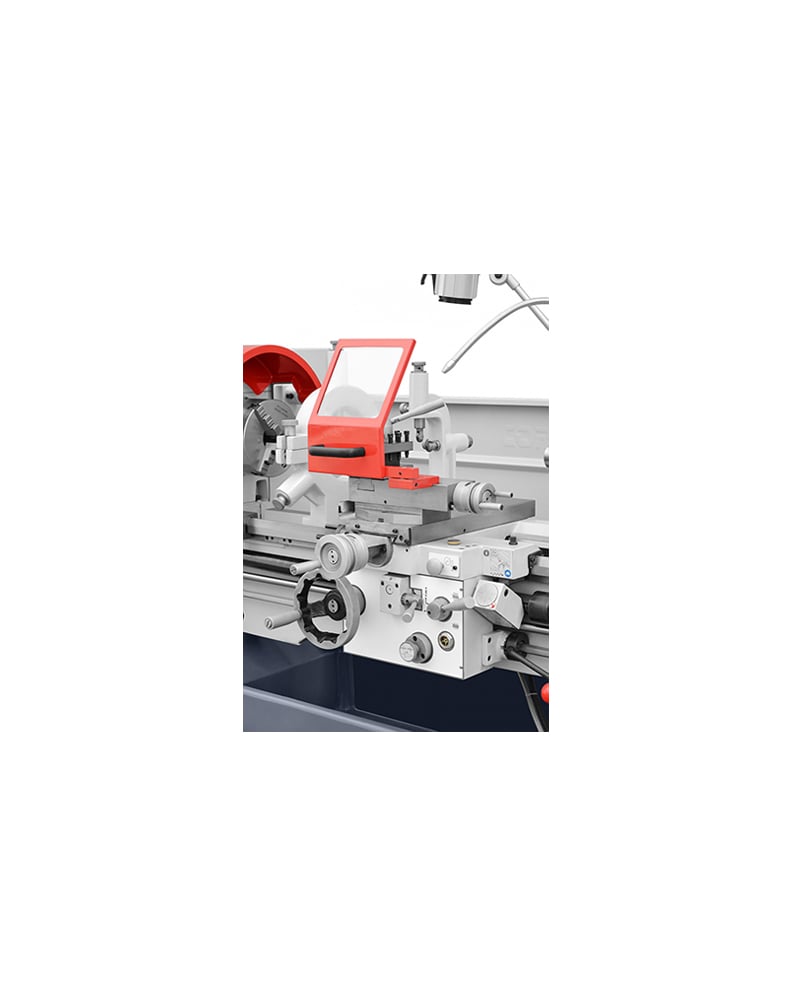

CM6241 Lathe Machine
Features :
- Precision ground and hardened bed ways
- The spindle bore is supported with precision roller bearings
- Head stock gears are made of high quality steel ground and hardened.
- Easy operating speed change levers
- Removable gap is provided for large diameter work
- Easy operating gear box has various feed sand thread cutting function.
Description
The lathe boasts precision ground and hardened bed ways for durability and accuracy. Its spindle bore is supported by precision roller bearings, and the headstock gears are made of high-quality, ground, and hardened steel. It offers easy-to-operate speed change levers and a removable gap for handling large diameter workpieces. The machine also includes an easy-operating gearbox with various feed and thread-cutting functions.
Optional accessories available are a Taper Turning Attachment, Live Center, Work Light, Leadscrew Guard, Digital Readout (1 and 2-axis options), Quick Change Tool Post, Chuck Guard, and Drill Chuck + Drill Arbor.
|
Standard Accessories:
|
Optional Accessories:
|
|
3 Jaw Chuck
|
Taper Turning Attachment
|
|
Change Gears Set
|
Live Center
|
|
Chasing Dial Indicator
|
Work Light
|
|
Reduction Sleeve
|
Leadscrew Guard
|
|
Dead Centers
|
Digital Readout
|
|
Full Lengtd Splash Guard
|
Quick Change Tool Post
|
|
Coolant System
|
Chuck Guard
|
|
Brake System
|
Digital Readout (2 Axis)
|
|
4 Jaw Chuck
|
Drill Chuck+Drill Arbor
|
|
Face Plate
|
|
|

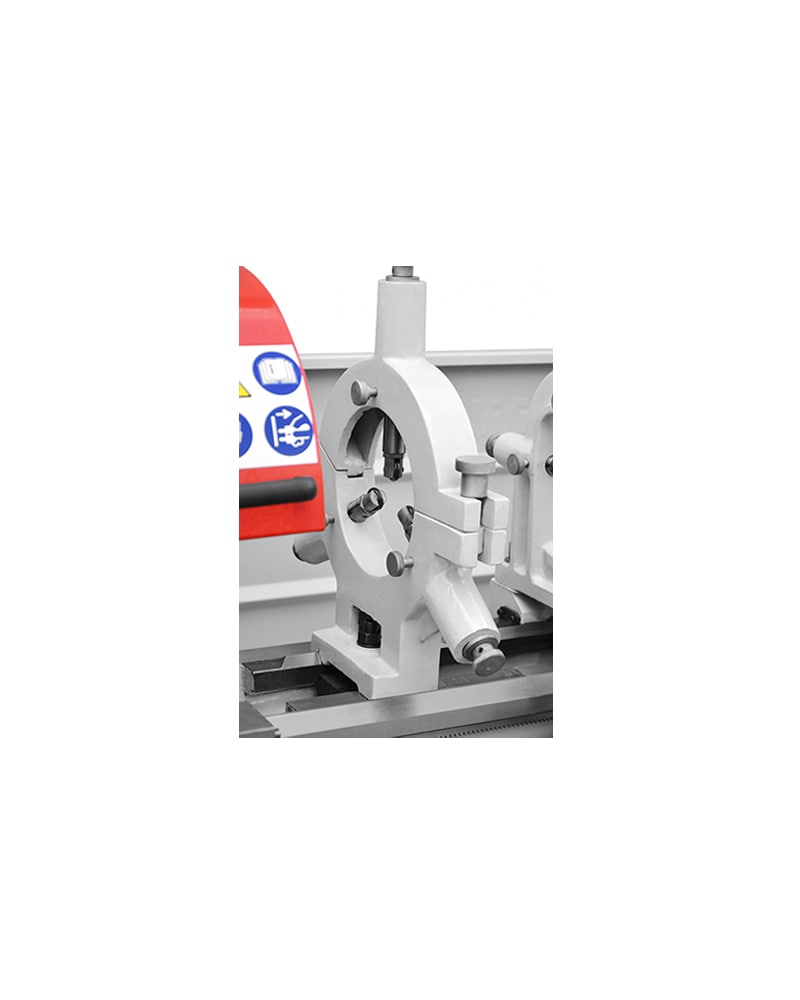

Steady Rest
|
|
|
Follow Rest
|
|
|
Tool Box&Tools
|
| Model |
CM6241×1000
|
CM6241×1500
|
|
| Max.swing over bed |
Φ410mm(16″)
|
||
| Max.swing over cross slide |
Φ255mm(10″)
|
||
| Max. swing over gap |
Φ580mm(23″)
|
||
| Center height |
205mm(8″)
|
||
| Distance between centers |
1000mm(40″)
|
1500mm(60″)
|
|
| Widtd of bed |
250mm(10″)
|
||
| Max.section of tool |
20mm×20mm(3/4″×3/4″)
|
||
| Max.travel of cross slide |
210mm(8 1/2″)
|
||
| Max.travel of compound rese |
140mm(5 1/2″)
|
||
| Spindle bore |
Φ52mm(2″)
|
||
| Spindle nose |
D1-6
|
||
| Taper of spindle speed |
M.T.#6
|
||
| Range of spindle speed |
16 changes 25-1800 r/min
|
||
| Leadscrew pitch |
4 T.P.I.
|
||
| Range of metric longitudinal feeds range |
0.05-1.7mm/rev (17 Nos)
|
||
| Range of inch longitudinal feeds |
0.002″-0.067″/rev (17 Nos)
|
||
| Range of metric cross feeds |
0.025-0.85mm/rev (17 Nos)
|
||
| Range of inch cross feeds |
0.001″-0.0335″/rev (17 Nos)
|
||
| Range of metric tdreads |
0.2-14mm (NO. 39)
|
||
| Range of inch tdreads |
2-72 T.P.I. (NO. 45)
|
||
| Range of Diametrical pitch |
8-44 D.P. (21 Nos)
|
||
| Range of module pitches |
0.3-3.5 M.P. (18 Nos)
|

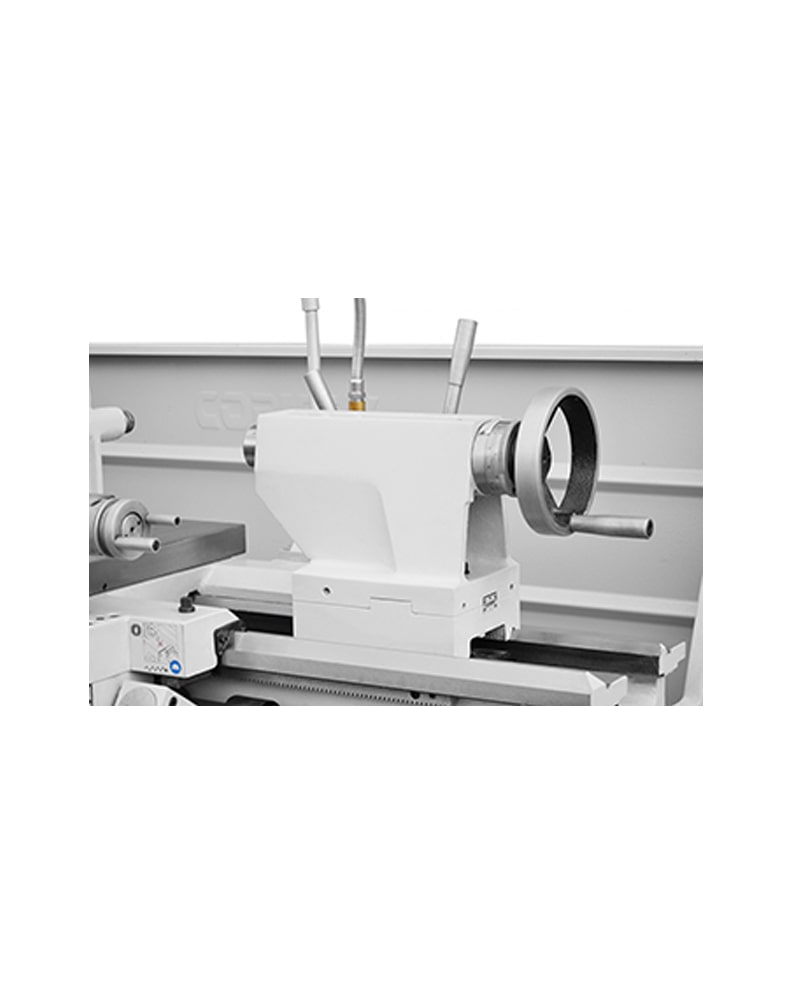

||
| Dia. of tailstock sleeve |
50mm(2″)
|
||
| Travel of tailstock sleeve |
120mm(4 3/4″)
|
||
| Morse taper of tailstock sleeve |
M.T.#4
|
||
| Power of main motor |
2.2/3.3kw (optional 3/5.5kw)
|
||
| Power of coolant pump |
4P, 3PH 90W
|
||
| Overall dimension(L*W*H) |
1940mm×850mm×1320mm
|
||
