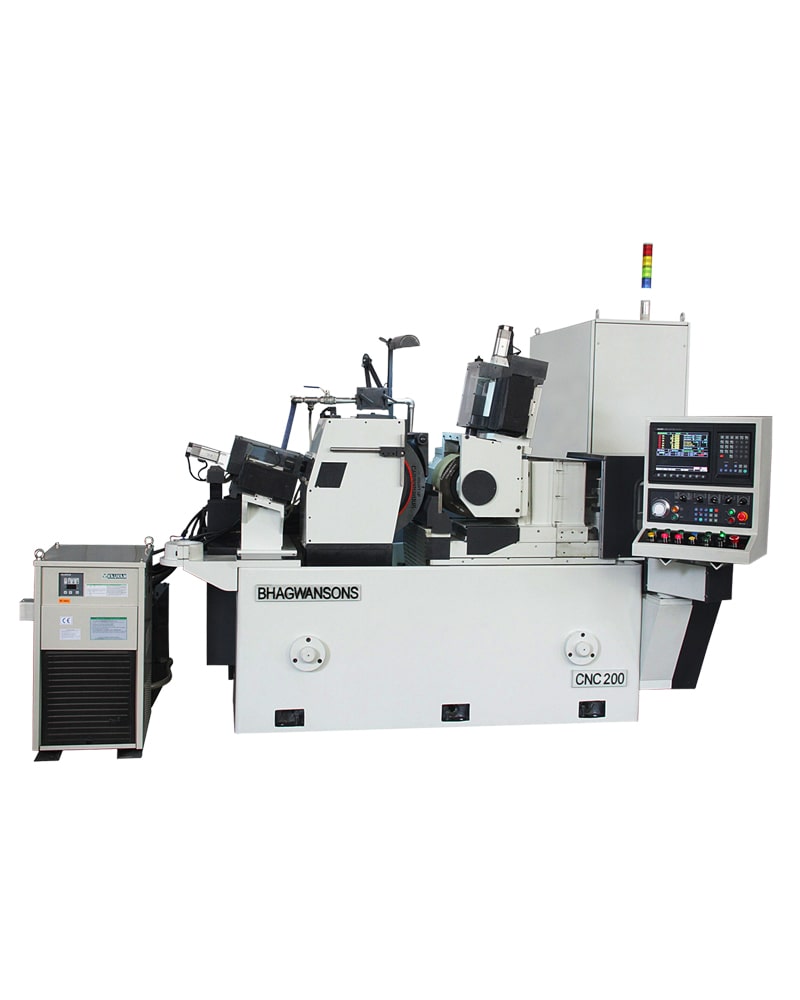

CNC Centerless Grinding Machine

Features:

  • Wide grinding capacity for different diameter ranges.
  • High precision grinding using servo drives.
  • Adjustable tilting and swivelling angles.
  • Efficient power usage witd various motor configurations.
  • Compact dimensions witd robust construction for long-lasting performance.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1 Categories: ,

Description

CNC Centerless Grinding Machine

The CNC Centerless Grinding Machine is designed for precise and efficient grinding of cylindrical workpieces. It provides high speed, stability, and accuracy witd advanced servo drives and robust construction. The machine is suitable for industrial applications, offering excellent grinding capacity with various models tailored to different requirements.

Specification
CNC-250
CNC-200
CNC-150
CNC-100
Grinding Capacity (Diameter mm)
2-125
2-125
1-100
1-75
Width Infeed (mm)
250
200
150
100
Grinding Wheel Diameter (mm)
500
500
400
350
Grinding Wheel Width (mm)
254
200
150
100
Grinding Wheel Bore (mm)
304.8
304.8
203.2
152
Speed width VFD
33 m/s
33 m/s
33 m/s
33 m/s
Regulating Wheel Diameter (mm)
305
300
250
225
Regulating Wheel Width (mm)
254
200
150
100
Regulating Wheel Bore (mm)
127
127
110
76
Speed RPM-VFD
15-250
15-250
20-250
20-250
Speed-Servo Drive
10-300
10-300
15-300
15-300
Tilting Angle
+6° to -3°
+6° to -3°
+5° to -3°
+5° to -3°
Swivelling Angle
+1°
+1°
+1°
0°
Grinding Wheel Motor
18.75 KW
15.0 KW
7.5 KW
7.5 KW
Regulating Wheel Motor
2.2 KW
2.2 KW
1.5 KW
1.5 KW
Coolant Pump Motor
0.37 KW
0.37 KW
0.18 KW
0.12 KW
Lubrication Pump
0.18 KW
0.18 KW
0.18 KW
0.18 KW
Hydraulic Unit Motor
0.75 KW
0.75 KW
0.75 KW
0.75 KW
Dimensions – Length (mm)
3210
3210
2600
2500
Dimensions – Width (mm)
1940
1940
1750
1650
Dimensions – Height (mm)
2260
2260
2210
2200
Net Weight Approx (Kgs)
5600
5200
3000
2800
