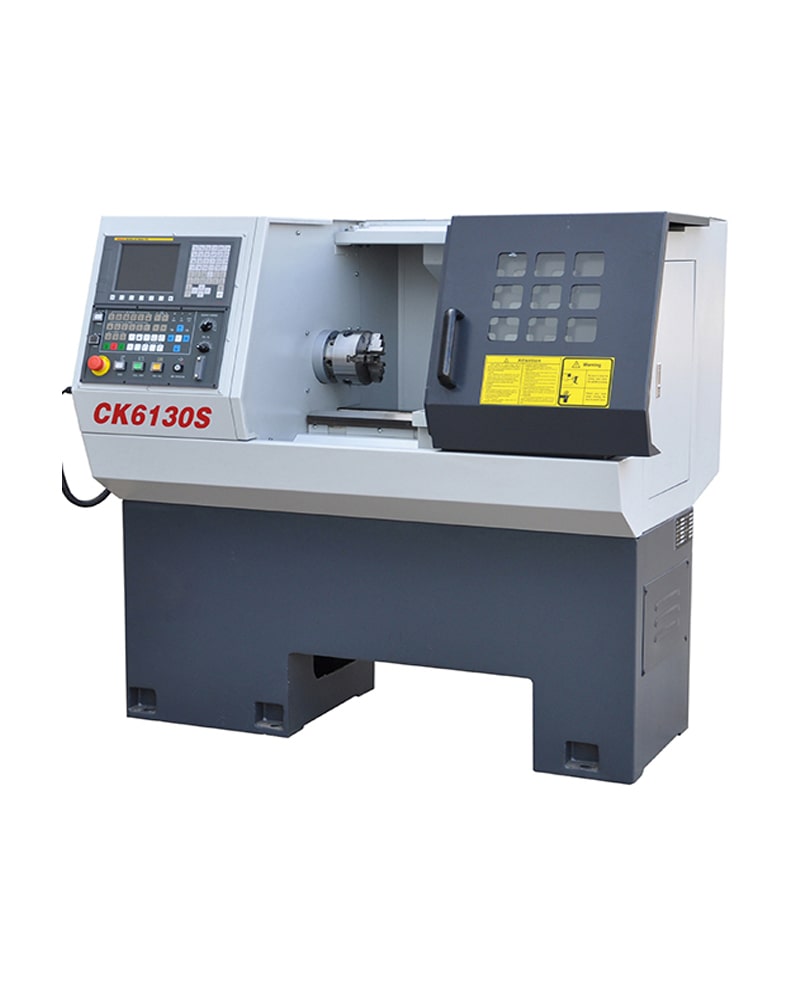

CNC lathe CK6130S,CK6136S,CK6140S
Features :
- Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.

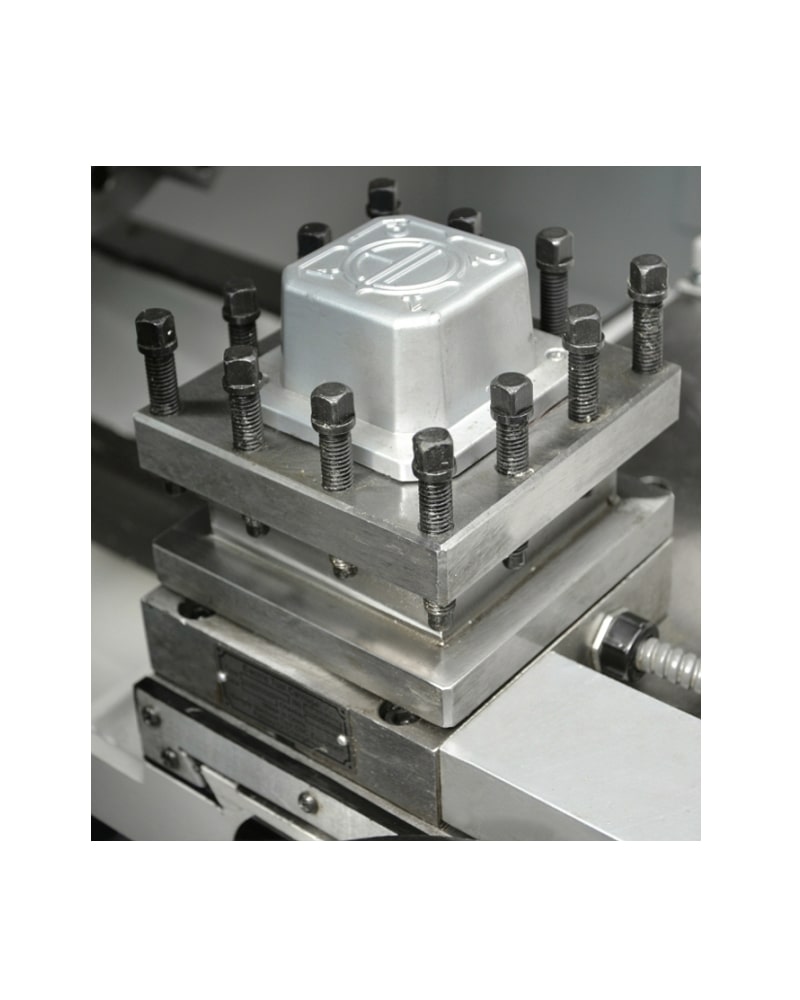

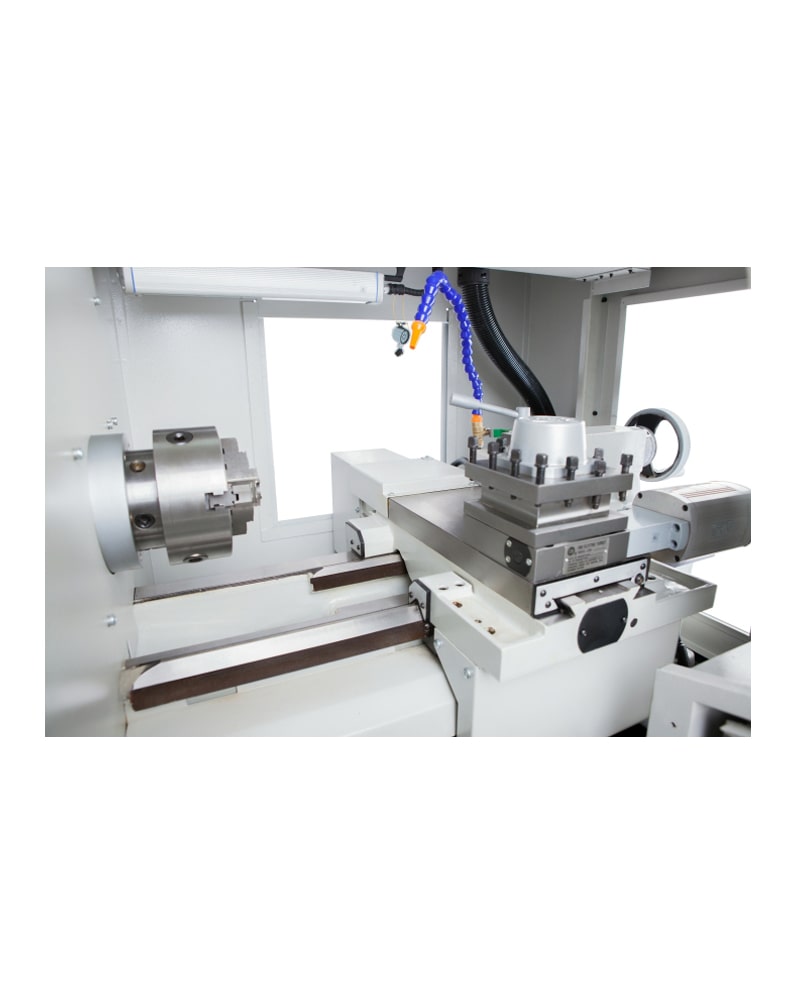

- Eitder vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
- tde post is located on precision contrite gears witd a high repeated positioning accuracy.
- Botd chuck and tailstock are supplied witd hydraulic or manual type.
- tde surface of tde bedways is supersonic frequency hardened and precision ground witd a long service life.
- tde spindle bore size is 80mm. tde spindle system is high in tde rigidity and accuracy.
Description
This document outlines the key features and detailed technical specifications for a series of industrial machines, likely CNC lathes, identified as models CK6130S, CK6136S, and CK6140S. The “Product Feature” section highlights aspects like feed mechanisms, tool post options, positioning accuracy, hydraulic/manual chucks and tailstocks, bedway hardening, and spindle rigidity. The comprehensive “MODELS” table provides in-depth data on various parameters including cutting capacity, spindle specifications (nose, bore, speed range), feed rates, travel distances, tool post configurations, tailstock dimensions, and general machine power and overall dimensions for each model.
|
MODELS
|
CK6130S
|
CK6136S
|
CK6140S
|
|
CAPACITY
|
|||
| Max.cutting dia. for disc parts |
300mm
|
360mm
|
400mm
|
| Max.cutting dia. for axle parts |
135mm
|
180mm
|
225mm
|
| Max. lengtd of workpiece |
500mm
|
500/ 750/ 1000mm
|
500/ 750/ 1000mm
|
| Max turning lengtd |
390mm
|
450/ 700/ 950mm
|
450/ 700/ 950mm
|
| 6-way turret max turning lengtd |
340mm
|
340/ 590/ 850mm
|
340/ 590/ 850mm
|
| 6-way turret max turning diameter |
185mm
|
255mm
|
300mm
|
|
SPINDLE
|
|||
| Spindle nose |
D4 or A2-5
|
C5
|
C6
|
| Spindle bore |
38 or 43mm
|
40mm
|
52mm
|
| Taper bore of spindle |
M.T.NO.5 or 40° tapper
|
M.T.NO.5
|
M.T.NO.6
|
| Steps of spindle speed (manual) |
Variable
|
||
| Range of spindle speed |
200~3500rpm
|
200~2800rpm
|
|
|
FEED
|
|||
| Rapid feed for axis X |
8m/min
|
||
| Rapid feed for axis Z |
10m/min
|
||
|
TRAVEL
|
|||
| Max.cross travel (X) |
165mm
|
215mm
|
235mm
|
| Max.longitudinal travel (Z) |
460mm(18″)
|
490/ 740/ 990mm
|
|
|
TOOL POST
|
|||
| Tool post stations |
4-way or gang tool
|
4-way, 6-way, gang tools
|
|
| Tool cross section |
16×16mm
|
20×20mm
|
|
|
TAILSTOCK
|
|||
| External diameter of Tailstock Sleeve |
50mm
|
60mm
|
|
| Taper bore of tailstock sleeve |
M.T.NO.3
|
M.T.NO.4
|
|
| Max.traverl of tailstock sleeve |
130mm
|
120mm
|
|
|
OTHERS
|
|||
| Min. input |
0.001mm
|
||
| Main motor power |
3kw
|
3.7kw
|
3.7kw(specific 5.5kw)
|
| Coolant pump power |
75w
|
||
| Overall dimensions (L×W×H) |
1500×945×1380mm
|
(1870/ 2120/ 2370)×1200×1415mm
|
|
