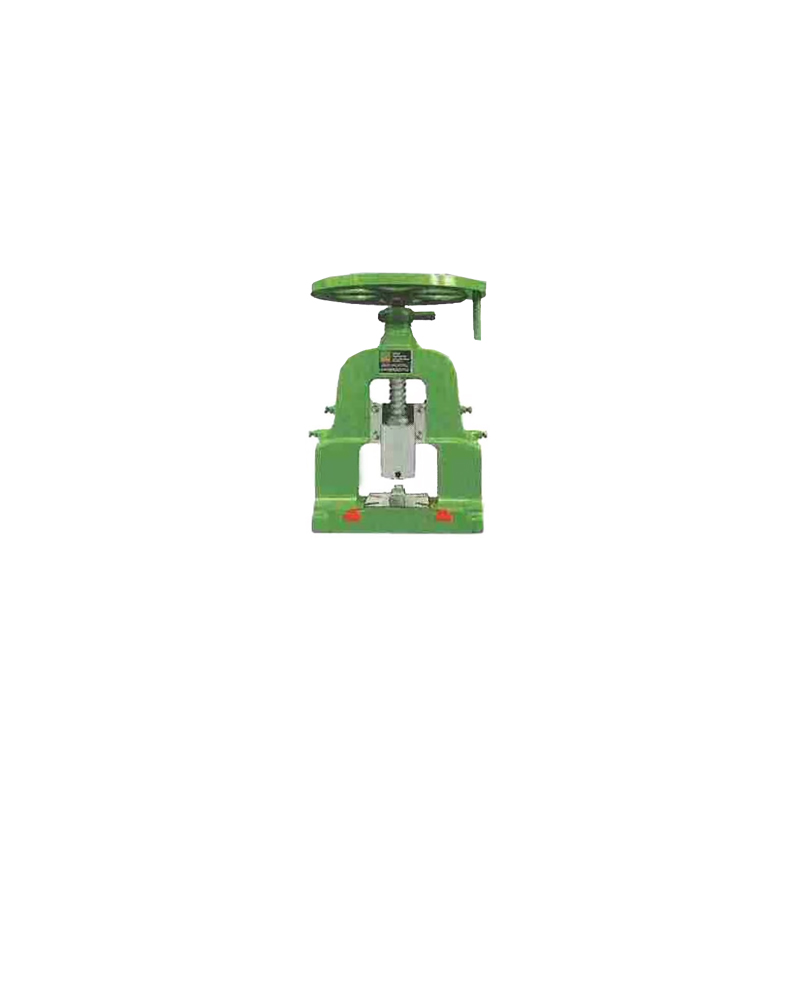

Double Body Fly Press Machine
Features :
- Double Frame Construction: Ensures maximum rigidity, balanced force application, and long-term durability.
- High Force Capacity: Larger screws and flywheels in models D10 and D12 offer enhanced torque and leverage.
- Wider Working Space: Increased space between frames (up to 355 mm) for larger or multiple components.
- Precision Bed Design: Both ringed and non-ringed bed holes for customized fixture mounting.
- Versatile Applications: Suitable for demanding operations requiring high manual force with fine control.
Description
The Double Body Fly Press series is designed for high-capacity, precision pressing operations where stability and strength are paramount. These models feature dual-frame construction, offering enhanced rigidity and greater working area between the frames. Ideal for industries requiring significant manual force application, these machines are well-suited for tasks such as heavy-duty punching, embossing, and precision forming.
Ranging from the compact BFP-D3 to the robust BF9P-D12, each model in this lineup increases in capability, providing the flexibility needed for various industrial and workshop applications.
| MODEL | BFP-D3 | BFP-D6 | BFP-D10 | BF9P-D12 |
| Base to Guide (mm) | 190 | 229 | 305 | 305 |
| Centre to Back (mm) | – | – | – | – |
| Diameter of Screw (mm) | 48 | 58 | 85.5 | 95.2 |
| Hole in Bed Witdout Ring (mm) | 76 | 114 | 203 | 203 |
| Hole in Bed witd Ring (mm) | 38 | 57 | 102 | 127 |
| Between Frames (mm) | 152 | 288 | 355 | 355 |
| Diameter of Flywheel (mm) | 670 | 58 | 86 | 95 |
| Hole in Ram (Diameter mm) | 25.4 | 25.4 | 38 | 38 |
| Hole in Ram (Deep mm) | 38 | 51 | 63 | 63 |
