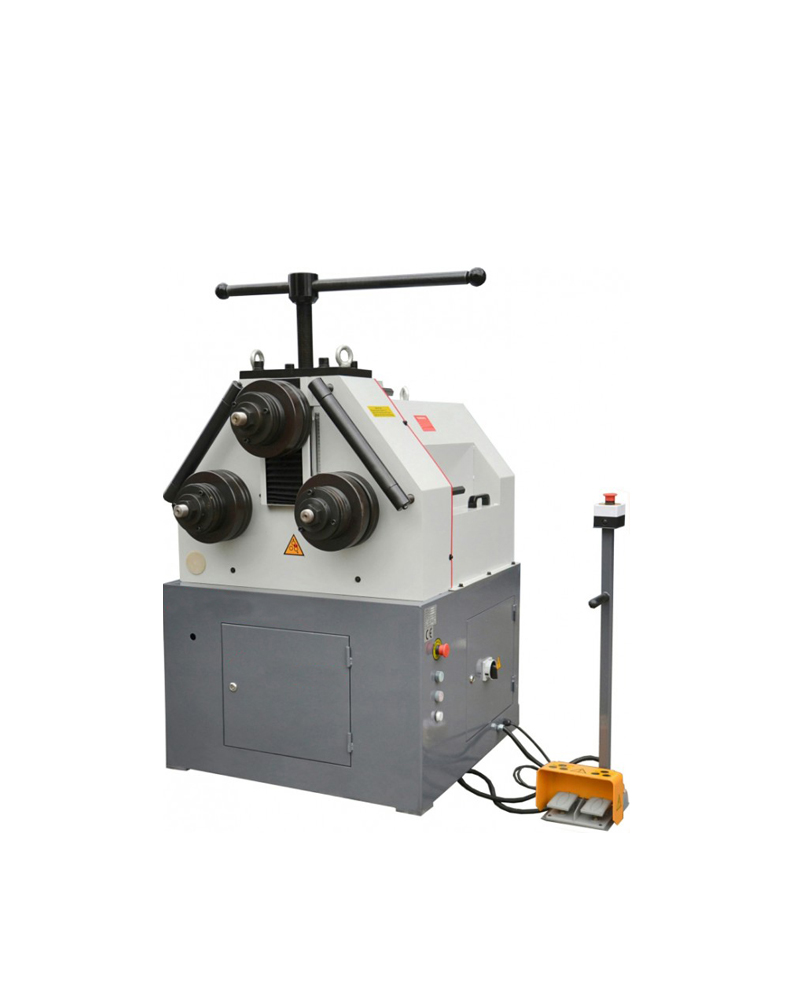

Electric Section Pipe Roll Bending Machine

The RBM65HV is a versatile Electric Profile Round Bending Machine designed for precision bending of plates, T-shaped materials, and various profiles. Featuring a robust three-roller-wheel structure and two-axis drive, it ensures efficient and adjustable bending operations. The machine supports both horizontal and vertical operation, comes with a standard foot pedal for ease of use, and includes reversible pedal switches for enhanced control. Compatible with multiple mold wheels, it adapts to diverse processing needs while maintaining high accuracy. Ideal for metalworking applications, this round bender combines durability, flexibility, and user-friendly operation for optimal performance.

SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1 Categories: ,

Description

RBM65HV Electric Profile Round Bending Machine / Profile Round Bender Features:

  • The round bending machine can be combined with various mold wheels in order to meet various processing demands.
  • Horizontal and vertical operation
  • With standard foot pedal
  • Round bending machine features an electric three-roller-wheel structure
  • 1t has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
  • It can conduct round bending processing for plates, T-shaped materials and so on.
  • Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally
  • The reversible pedal switch facilitates the operation.

RBM65HV Electric Profile Round Bending Machine

Model RBM40HV RBM50 RBM50HV RBM65HV
Dia. Of roller(mm) Ø40 Ø50 Ø65
Power 1.5kw/2HP 2.2kw/3HP 2.25kw
Spindle speed 9.3r/min 13r/min 9.3r/min
Packing Size 137x89x158cm 100x82x155cm 123x110x173cm
N.W./G.W. 425/495KGS 450/582KGS 730/780KGS

Capacity Specifications

Capacity Size Min Dia (mm) Size(mm) Min Dia (mm) Size(mm) Min Dia (mm)
50×10 600 60×10 500 80×25 600
20×6 800 40×10 650 40×10 500
60×20 800 100×15 920 120×25 600
30×6 1250 60×10 1150 50×10 400
30×30 650 35×35 600 50×50 600
10×10 1100 20×20 780 20×20 400
50×6 600 60×7 750 80x40x7 500
30×3 500 50×5 700 40x40x5 400
50×6 600 60×7 750 80x40x7 400
30×3 500 50×5 700 40x40x5 360
60x40x6 600 80x45x6 600 100x50x6 600
30x15x4 900 65x40x5 550 50x40x5 500
Special Roller
Model HRBM40HV HRBM50HV HRBM65HV
Profile Size Min Dia (mm) Size(mm) Min Dia (mm) Size Min Dia (mm)
30×2 35×2 700 30×2 35×2 600 3-1/2″x2″ 900
40×2 45×2 40×2 45×3 2-1/8″x2″ 500
50×2 55×2 50×2 55×2 ø 100x2mm 1000
60×2 65×2 60×2 65×2 ø 60x2mm 500
