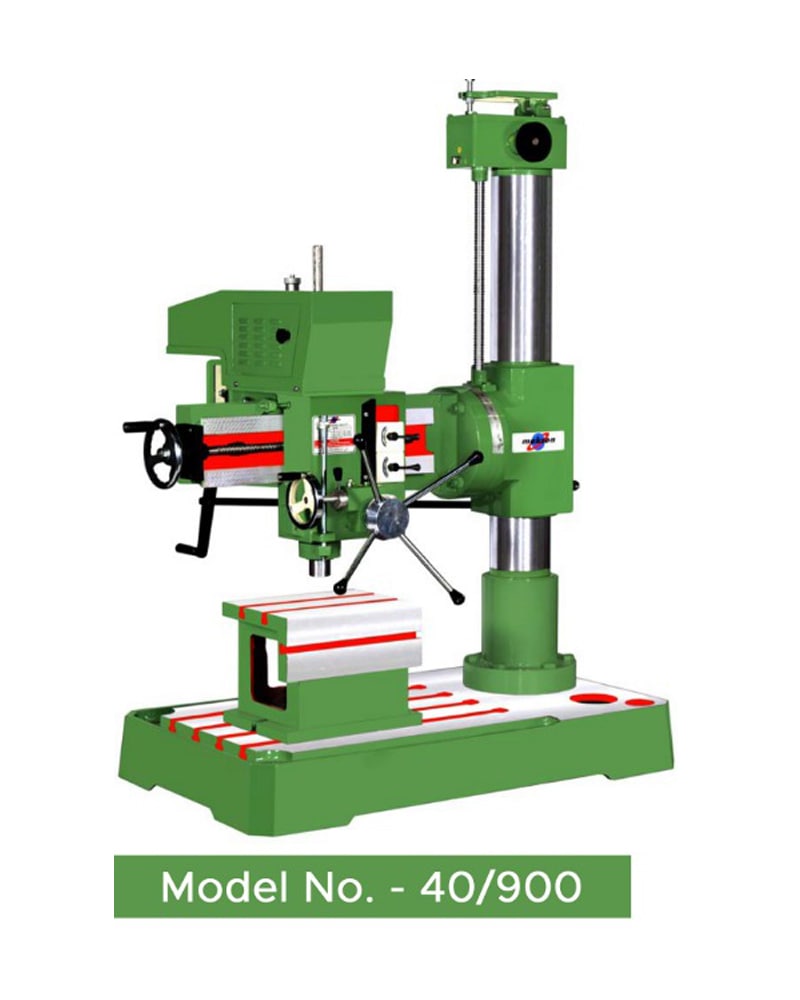

Fine Feed Cone Pulley Type Radial Drill Machine – 40/900 Model
Salient Features :
- Main Spindle and Pinion made from EN Steel by Forging.
- Main Spindle Run Out is checked for accuracy as per is 2199.
- All Moving Parts are Fine-Finished With Grinding to a Close Tolerance.
- Main Spindle NTN Japan Make Bearings With Grease With Grease Bath, So Permanent Oiling.
- Main Gear and Pulley are Perfectly Balanced.
- All Gears Are Made From FGI Casting and Boring Drive.
- Accessories are designed for a longer life and to prevent corrosion and pillage associated with usual chhrine plating.
- Work Table T-Slot Machining.
Description
The Makson “Fine Feed Cone Pulley Type Radial Drill Machine” is a precision-engineered radial drilling machine designed for accuracy and durability. It features a robust design and high-quality components for reliable performance in various industrial drilling applications. The machine is known for its fine feed capability and is a popular choice for metalworking.
|
Description
|
Parameters
|
|
CAPACITY
|
|
| Drilling (M.S.) |
35 MM
|
| Drilling (C.I.) |
40 MM
|
| Boring |
50 MM
|
| Tapping (M.S.) |
18 MM
|
| Tapping (C.I.) |
20 MM
|
|
DRILLING HEAD
|
|
| Spindle Nose |
MT-4
|
| Spindle Nose Outside Diameter |
54 MM
|
| Spindle Slive Diameter |
78 MM
|
| Travel of Spindle |
220 MM
|
| Number of Spindle Speed |
8 STEP PULLY
|
| Speed Min./Max. |
70-2000
|
| Number of Power Feeds |
MANUAL
|
| Range of Power Feeds |
—
|
|
POWER
|
|
| Drilling Head Motor |
1.5 HP, 1440 RPM
|
| Elevating Motor For Arm |
0.5 HP, 1440 RPM
|
| WORKING RANGE | |
| Column Diameter |
165
|
| Dist From Spindle To Base Min./Max. |
300 x 910
|
| Dist. From Column Face To Spindle Center Min./Max. |
350 x 900
|
| Drilling Head Traveras |
450
|
| Drilling Radius |
980
|
| Traverse of Arm |
720
|
|
BASE PLATE
|
|
| Height of Base Plate |
180
|
| Working Surface |
590 x 800
|
| Number of T Slot |
4
|
| Width of Cast Side |
15 mm
|
| Overall Dimensions (L*W*H) |
1300 x 900 x 1800
|
|
WEIGHT
|
|
| Approximate |
800 kg
|
