Folding Machine

Features:

  • A Fully Welded Structure.
  • Compact High Quality Engineering.
  • Ensure Minimum Maintenance, Together With Simple and Safe Operation.
  • With Foot Control. It Is Easy For Operation And Relax Hands.
  • With foot control, it is easy for operation and relax hands for adjusting the material.
  • They have the function of air spring which can be installed inside the arm (Optional).
  • The press blade and folding blade are segment structure.
  • A fully developed quick release system for the clamp beam segment ensure fast interchangeability.
  • The folding beams are fitted with a counter balance and angle stop to provide a perfect and effective operation with in the full capacity of the machine.
  • The optional back-guage can be easily mounted when using the pre-drilled fixing points.
SKU: NMDE-002-1-2-1-2-1-1 Categories: ,

Description

Folding Machines – PBB Series The PBB Series Folding Machines offer a comprehensive solution for precision sheet metal bending across various thicknesses and lengths. These robust machines are constructed with a fully welded frame, ensuring maximum durability and stability during operation. Engineered for both industrial and workshop applications, they combine compact, high-quality design with ease of use, maintenance, and enhanced safety.

Each model is equipped with advanced features tailored for user comfort and efficiency:

  • Foot-controlled operation simplifies the bending process and frees the operator’s hands.
  • Select models (such as PBB 1020/2A) feature air spring systems and segmental blades, enhancing material handling and blade versatility.

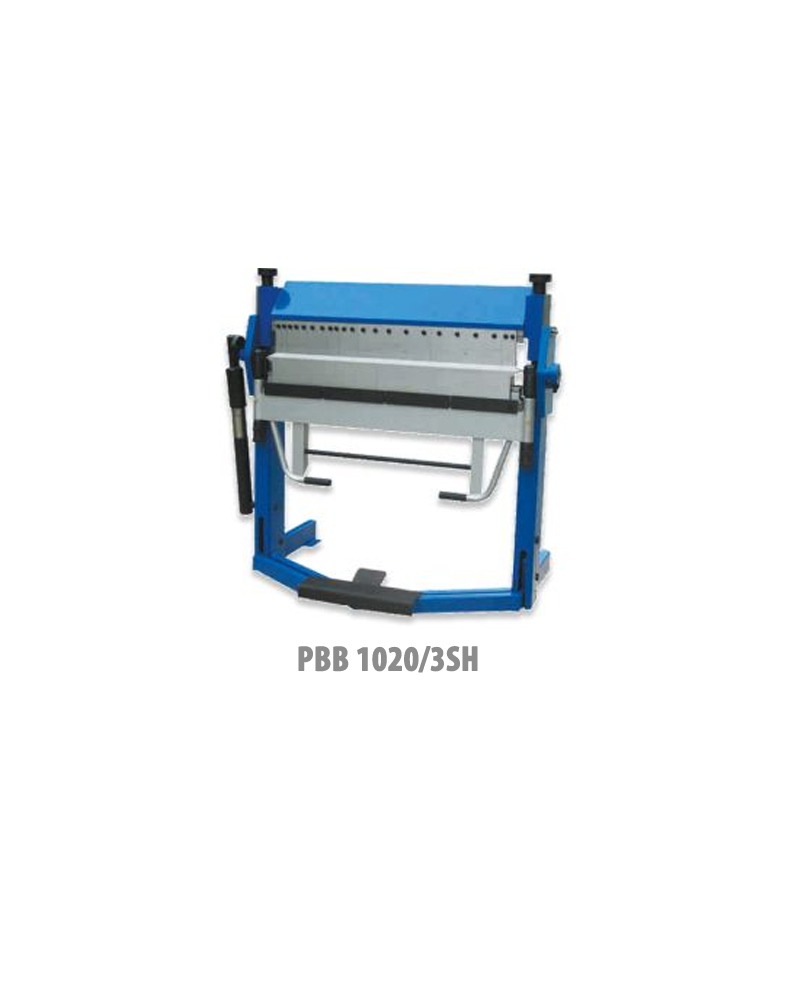

  • The PBB 1020/3SH includes a quick-release system for clamp beam segments, counterbalance arms, and angle stops to ensure precise and repeatable bends.
  • A pre-drilled back-gauge option allows for even more efficient setup and consistency in repetitive tasks.

With folding angles up to 150°, clamping bar lifts of up to 47mm, and a range of working lengths from 1020mm to 2520mm, these machines cater to various bending needs while maintaining accuracy and reliability. The design ensures minimal maintenance and fast interchangeability of components, ideal for high-volume or custom fabrication tasks.

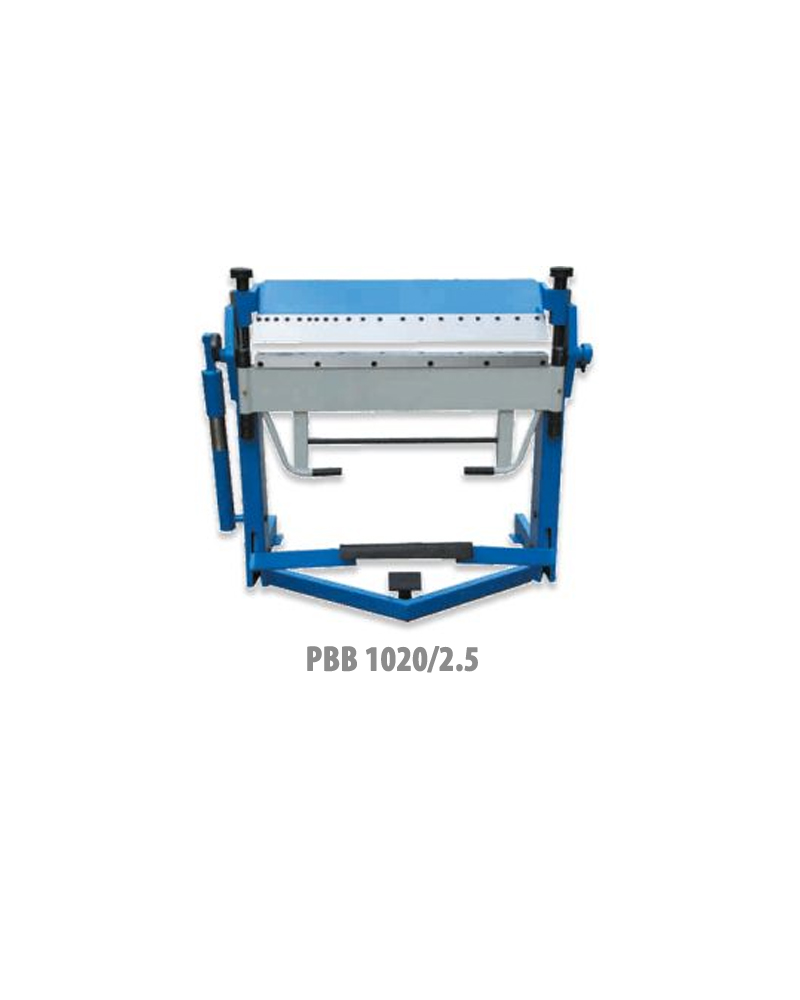

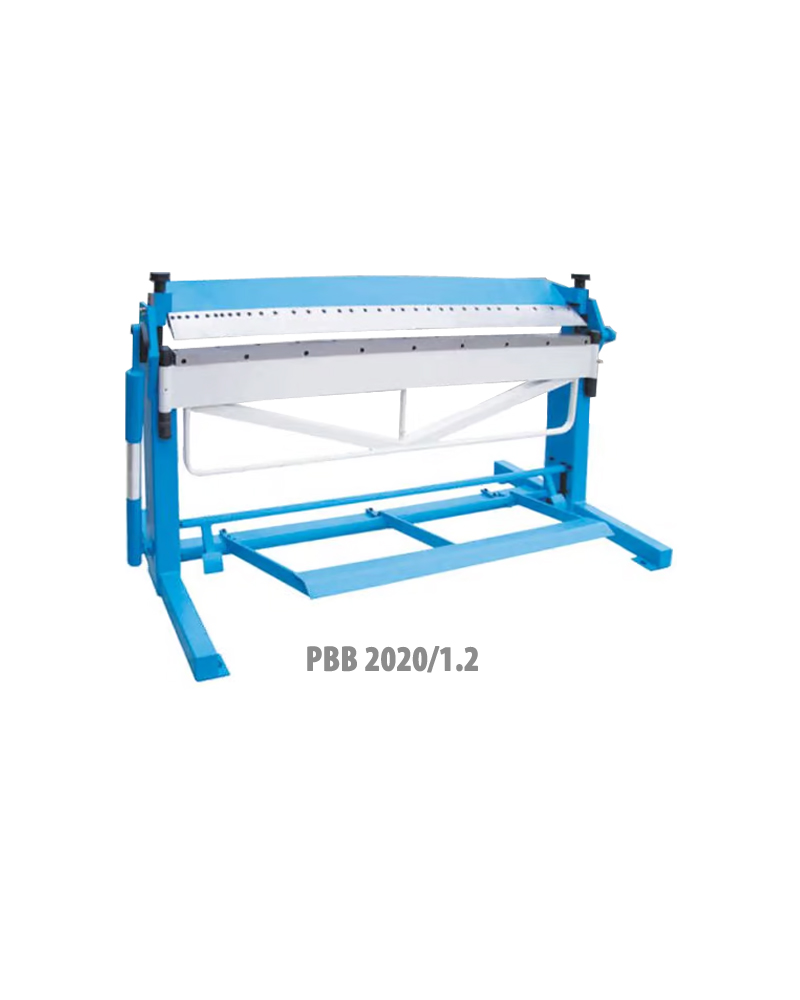

MODEL PBB 1020/2.5 PBB 1270/2.0 PBB 1520/1.5 PBB 2020/1.2 PBB 2520/1.0
Maximum Working Lengtd 1020mm 1270mm 1520mm 2020mm 2520mm
Maximum Sheet tdickness 2.5mm 2.0mm 1.5mm 1.2mm 1.0mm
Maximum Clamping Bar Lift 47mm 47mm 47mm 47mm 47mm
Folding Angle 0 – 135° 0 – 135° 0 – 135° 0 – 135° 0 – 135°
Packing Dimension 1460×620×1270mm 1700×710×1270mm 1960×710×1300mm 2470×940×1320mm 2970×940×1320mm
Net Weight 285Kgs. 320Kgs. 385Kgs. 490Kgs. 590Kgs.
MODEL PBB 1020/2A PBB 1270/2A PBB 1520/1.5A PBB 1020/3SH PBB 1270/3SH
Maximum Working Lengtd 1020mm 1270mm 1520mm 1020mm 1270mm
Maximum Sheet Thickness 2.0mm 2.0mm 1.5mm 2.0mm 1.5mm
Maximum Clamping Bar Lift 47mm 47mm 47mm 45mm 45mm
Folding Angle 135° 135° 135° 150° 150°
Packing Dimension 1460×640×1310mm 1700×710×1300mm 1960×710×1300mm 1420×590×1420mm 1670×660×1420mm
Net Weight 320Kgs. 350Kgs. 395Kgs. 420Kgs. 465Kgs.
