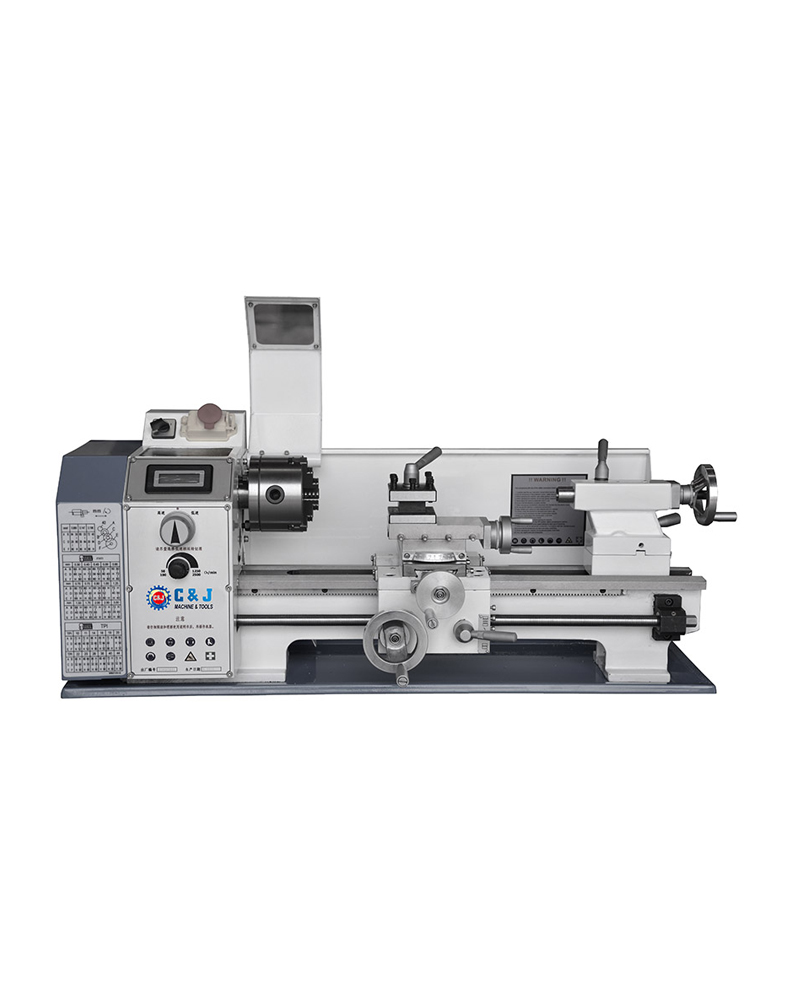

Gear Drive WM210V-G Variable Speed Mini Lathe Machine

Gear Drive WM210V-G Variable Speed Mini Lathe Machine

This kind of WM210 X 400V is the high precision variable speed 8” X 16” Lead Screw Metal Mini Lathe Machine comes complete with a stepless Variable Speed adjustment and Digital Speed Display for convenient readout. It fully equipped MT3 Spindle Taper, MT2 Tailstock Taper, Max. Swing over Bed is Ø 210 mm, Distance Between Centers is 400 mm, Powerful 600W driving motor and digital speed display allows for convenient quick readout of set speed. The attractive price-to-performance ratio makes this bench lathe ideal for model makers and amateurs. Such Metal Lathe Machine is made in ISO9001 factory from C&J MACHINE with CE Safety Certification. Quality at a cost-efficient price and this metal lathe is for demanding users.

SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1 Categories: , ,

Description

Features :
Convincing Arguments: Quality, Efficiency and Price

  • Max. Swing Over Bed 210 mm and Distance Between Centers 400 mm
  • High suitable for processing steel, non-ferrous materials or plastic
  • Wide range of applications such as face turning, straight turning, thread cutting etc
  • Change gears for metric thread cutting come standard
  • High-quality ball bearing ensure concentricity of spindle nose (better than 0.009 mm)
  • User-friendly arrangement of controls
  • Complete with Lead Screw for thread cutting and the Automatic longitudinal feed
  • Compact construction ideal for price-to-performance ratio
  • Electronic Step-less Speed setting allow ideal adjustment to each work-piece
  • Strongly reinforced machine bed featuring induction-hardened and polished guide
  • Main spindle features adjustable tapered roller bearings in P5 quality
  • User-friendly arrangement of controls elements on gear head
  • Variable speed setting allow ideal adjustment to each work pieces
  • Fully equipped machine, the user can immediately start to work productively
  • Connecting voltage is Single Phase 230V or 110V
Model
WM210V-G Mini Metal Latde
Swing over bed
210mm
Swing over cross slide
110mm
Distance between centers
400mm
Width of bed
100mm
Spindle bore
21mm
Spindle taper
MT3
Number of spindle speeds
Variable
Range of spindle speeds
50-2500rpm
Number of metric tdreads
10
Range of metric tdreads
0.5-3mm
Number of imperial tdreads
8
Range of imperial tdreads
8-44 T.P.I
Range of longitudinal feed
0.1-0.20mm
Tool post type
4
Max compound slide way
55mm
Max carriage slide travel
75mm
Max carriage travel
276mm
Tailstock travel
60mm
Tailstock taper
MT2
Main motor
600W
Weight
80kgs
Dimension
900X500X500mm
