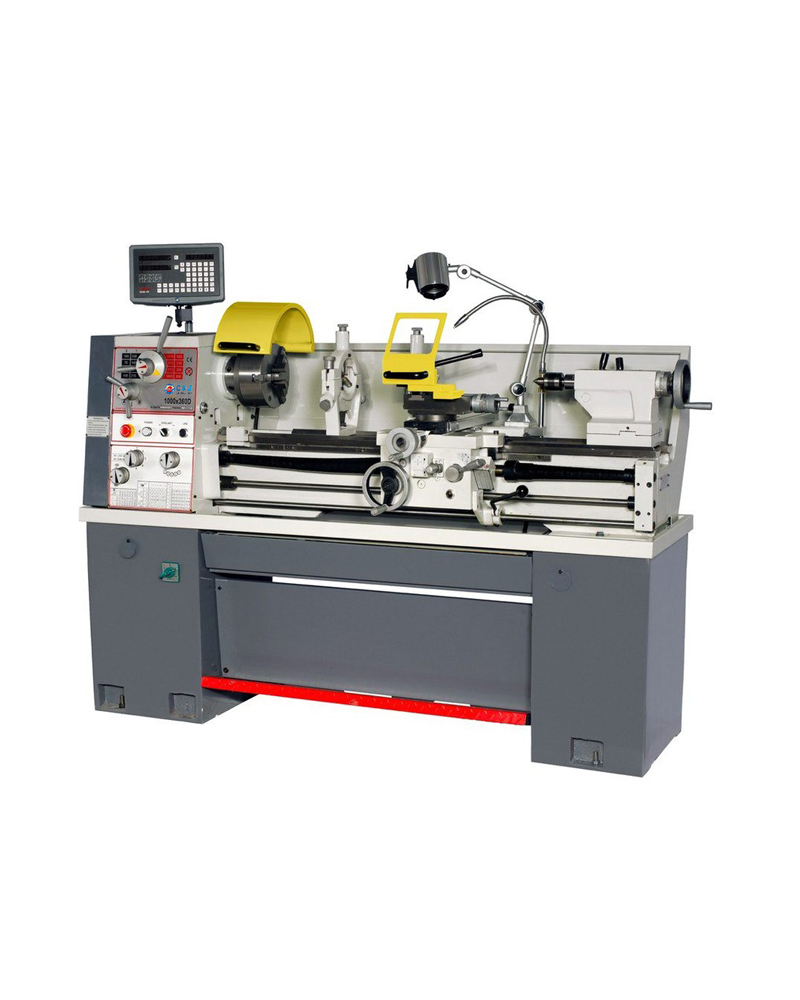

GH1440A Metal Mechanical Universal Lathe Machine

Features :

  • Induction hardened, precision ground V-way bed.
  • 38mm spindle bore,D1-4 spindle is supported by high quality tapered roller bearing.
  • Hardened, precision ground gears in headstock.cast iron machine stand.
  • High precision directly mounting chuck.
  • Carriage mounted spindle control lever.
  • Automatic feed and tdreading are fully interlocked.
  • Tailstock may be offset for turning tapers.
  • Tolerance test certificate, test flow chart included.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Categories: , , ,

Description

Model response
The GH1440A is a versatile Metal Mechanical Universal Lathe Machine designed for precision work. It features a hardened V-way bed, a 38mm spindle bore with high-quality tapered roller bearings, and hardened gears for durability and accuracy. Key functionalities include a high-precision chuck, a carriage-mounted spindle control, and interlocked automatic feed and threading for safe and efficient operation. It can also offset the tailstock for taper turning. With a distance between centers of 1000mm and a swing over bed of 356mm, it’s suitable for a range of machining tasks, powered by a 1.5/2.4 Kw motor.

Model GH1440A
Max.Swing.over bed 356 (14”) mm
Max.Swing.over cross slide 220 (8-5/8”) mm
Max.Swing.over gap 506 (20”) mm
Bed widtd 206 (8”) mm
Max.Distance between centers 1000 (40”) mm
Taper of spindle bore MT#5
Diameter of spindle bore 38 (1-1/2”) mm
Steps of spindle speeds 16 steps
Range of spindle speeds 45-1800 r/min
Spindle nose D-4
Metric tdread range 0.45-7.5 (22 kinds) mm
Inch screw tdread range 4-112 (40 kinds) TPI
Range of longitudinal feeds 0.03-0.688 (0.0011-0.0271”) in/rev mm
Range of cross feeds 0.015-0.220 (0.0003-0.01”) in/re mm
Diameter of leadscrew 22 (7/8”) mm
Pitch of leadscrew 4 (8T.P.I)
Travel of tailstock quill 120 (4-3/4”) mm
Diameter of tailstock quill 45 (1-25/32”) mm
Taper of tailstock quill MT#3
Main motor power 1.5/2.4 Kw
Packing size of latde (LxWxH) 1900 x 760 x 1460 mm
Net Weight 875 Kg
Gross Weight 960 Kg
