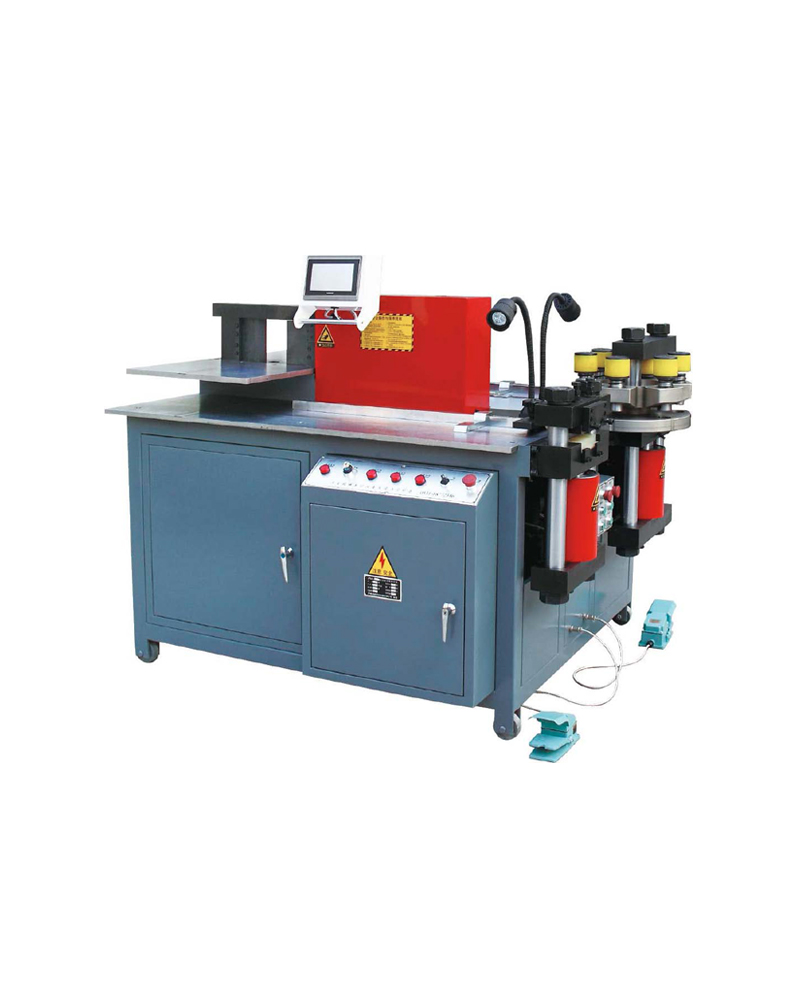

Heavy Duty Bus Bar

Description

Main characteristics:

• The punching station uses nodular Cast Iron Heavy Six Station turret with integral rotary table(One-piece machined parts, more accuracy and extend service life，No need to change the mould frequently, greatly improve production efficiency)
• Cutting unit uses double column and double knife type shear structure. Upper and lower knife installed vertically and horizontally, keeping the knife movement smooth which allows minimum waste of material during cutting.
• Bending unit uses closed bending. The output point and input point is connected by 50mm thickness beam, which is much heavier and rigid than open type bending.
• More options on Bending position – On U-type bending, the minimum distance of U-type is 40mm.
• The hydraulic oil tank is made heavy duty steel plate. Phosphating is done on the tank which improves the shell life of hydraulic oil.
• The Electrical control panel is built to international standard, strong and durable and easy to maintain
• Available in Conventional and CNC models
• For large production volume, available 3 Motor, 3 pump, CNC, Double or Single Table options

Busbar Processing Capacity : 150 x 12 mm / 200 x 16 mm

PUNCHING STATION

• Well designed – strong and stable and more accurate for processing
• Turret type punching table. Help change moulds with ease. Saves time and increases efficiency
• Polyurethane pad and good quality spring moulds for faster return
• Can operate either by Hand switch or foot switch
• Rigidly built supporting column & Heavy duty Hydraulic Cylinder makes the cylinder movement smooth and gives good punching quality

CUTTING STATION

• Provides a sharp shearing.
• No burr & No shear waste.
• The working table is provided with a measuring scale
• Elastic polyurethane pad for better cutting effect.
• Can operate either by Hand switch or foot switch

BENDING STATION

• The working table is fitted with measuring scale for positioning
• Horizontal processing, safe and convenient
• Heavy Hydraulic cylinder bending force. More stable & more accurate bending effect
• Heat treatment bending die to desired hardness
• Closed integral frame structure :
  • Bending and embossing is more uniform and give good repeatability
  • Have both the option of conventional and PLC based for more precision and faster productivity.
