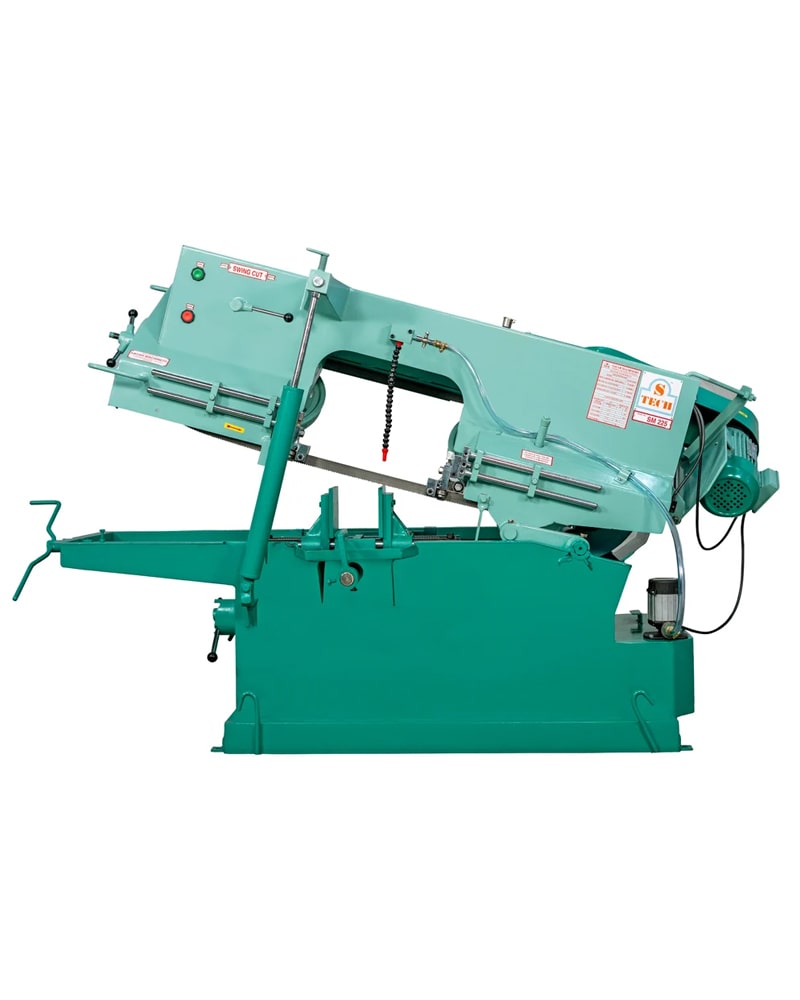

Horizontal Metal Cutting Band Saw Machine SH-225

Features :

  • Heavy body structure for better performance and long life.
  • Heavy duty bronze worm gearbox.
  • Synthetic gear oil eliminates refilling of gear oil and breakdown of gearbox.
  • Feature of Swing out offers long blade life and the best cutting edge.
  • Four step pulley offers the variable blade speeds to cut the different materials like Mild Steel, Alloy Steel, Stainless Steel, Brass, Copper, Aluminum Etc.
  • Feed control valve of hydraulic cylinder provides down speed control.
  • It can cut Round Bars, Square Bars, Flat Bars, Pipes, Angles, Channels and Structural Steels very smoothly and precisely.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2-1-1-1-1-1 Categories: , ,

Description

Horizontal Metal Cutting Band Saw Machine SM-225

The SH-225 is a horizontal metal cutting band saw machine designed for high-speed and precise cutting of various metal materials. It features a heavy-duty body and a synthetic gear oil refilling system for long-term performance and low maintenance. The machine’s design includes a ‘Swing out’ feature and a four-step pulley for variable blade speeds, making it suitable for cutting a wide range of materials from mild steel to alloy steel and stainless steel.



Model
SH-225
SH-275
SH-325
SH-425
SH-600
Cutting Capacity Round (mm)
225
275
325
425
600
Cutting Capacity Square (mm)
200×200
225×225
275×275
350×350
450×450
Blade Size (mm)
3000x27x0.9
3515x27x0.9
3760x27x0.9
4420x34x1.1
5800x41x1.3
Motor Power
1 HP/1440 RPM
1.5 HP/1440 RPM
2 HP/960 RPM
2 HP/960 RPM
5 HP/960 RPM
Coolant Pump Power
0.15 HP/2800 RPM
0.15 HP/2800 RPM
0.15 HP/2800 RPM
0.15 HP/2800 RPM
0.25 HP/2800 RPM
Blade Speed Mtr/Min
22-37-57-77
Weight (kg)
375
400
460
750
1300
Over All Dimensions
2×0.85×1
2.3×0.85×1.5
2.5×0.85×1.8
2.7×0.9×1.2
3.7×0.95×1.3
