Hydraulic Profile Bending Machine

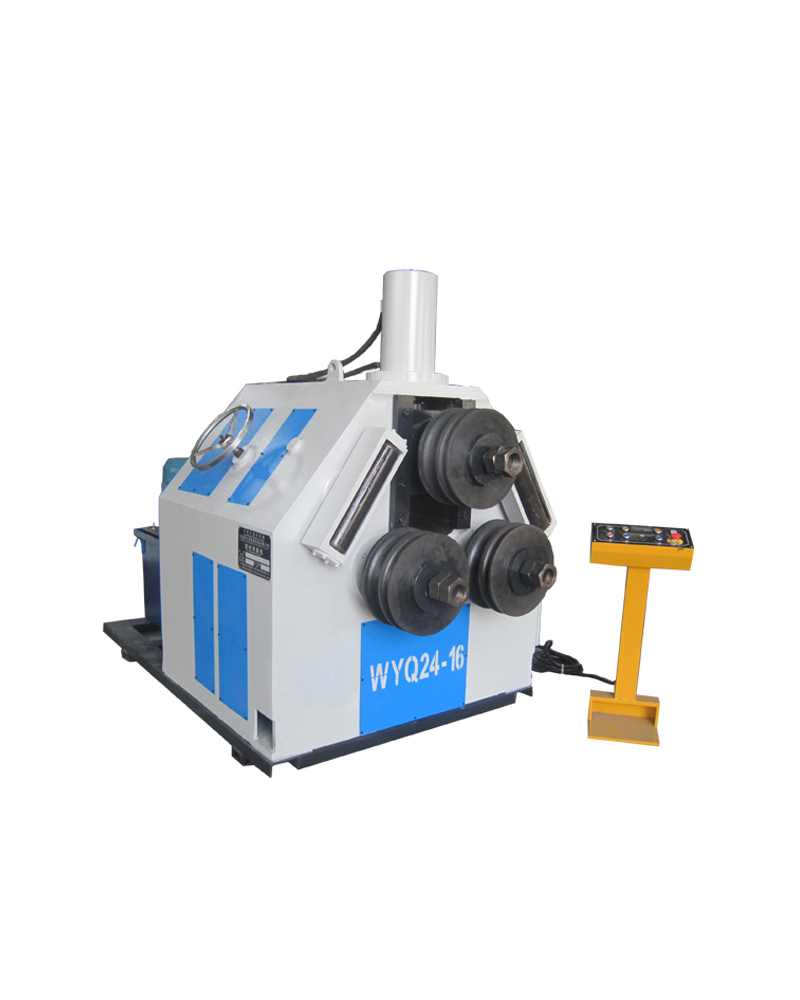

WYQ24 -16 Half Hydraulic Profile Bending Machine
Equipment statement:
*This profile bending machine is a high efficiency equipment used to bend all kinds of profiles such as angle, channel, I-beam, flat bar, square tube, tube, pipe and so on. Once feeding then finish bending and pre-bending. It’s widely in petrol, chemical, shipyard, metal working and machine manufacturing industries
Description
WYQ24 -16 Half Hydraulic Profile Bending Machine
Performance Featurs :
- WYQ24 series is half hydraulic type profile bending machine.
- 11 is widely in petrol, chemical. shipyard, metal worKing and machine manufacturing industries
- Once feeding can fin ish bending and checking circle . Two bottom rollers fixed. top roller lifting by hydraulic oil lank. Three drive rolls, the power come from hydraulic motor. The side guide rollers ensure the high quality bending of asymmetric profiles.
- Advanced and reliable structure.
- Small volume and full function.
- Ir’s an advanced metal forming equipment in the world at present.
| Technical data | W24SWY24-1 | ||||||||||
| 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | |
| Max.Bending Resistant Modulus | 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 |
| Bending Speed (m/min) | 6 | 5 | 4 | ||||||||
| Yield Limit (mpa) | S=250 | ||||||||||
Profile Bending Machine Specifications
 |
Angle Inner Bending | Max. section size (mm) | 40×5 | 70×8 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 | 150×16 | 160×16 | 180×14 | 200×18 |
 |
Angle Outer Bending | Max. section size (mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 | 150×16 | 160×16 | 180×14 | 200×18 | 200×24 |
 |
Channel Outer Bending | Channel size (mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 |
 |
Channel Inner Bending | Channel size (mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 |
 |
Plate Flat Bending | Max. section size (mm) | 100×18 | 150×25 | 180×25 | 200×30 | 220×40 | 250×40 | 280×50 | 300×50 | 330×50 | 360×60 | 400×75 |
 |
Plate Vertical Bending | Max. section Dia.(mm) | 50×12 | 75×16 | 90×20 | 100×25 | 110×40 | 120×40 | 150×40 | 180×30 | 190×40 | 190×50 | 200×50 |
 |
Tube Bending | Max. section size (mm) | 42×4 | 76×4.5 | 89×5 | 89×8 | 114×5 | 159×5 | 168×6 | 168×8 | 219×8 | 245×8 | 273×8 |
 |
Rod Bending | Max. section size (mm) | 38 | 52 | 62 | 75 | 85 | 90 | 100 | 110 | 120 | 135 | 150 |
 |
Square Bending | Max. section size (mm) | 45×3 | 60×4 | 70×4 | 80×6 | 90×8 | 100×10 | 125×10 | 140×10 | 150×10 | 165×10 | 180×12 |
