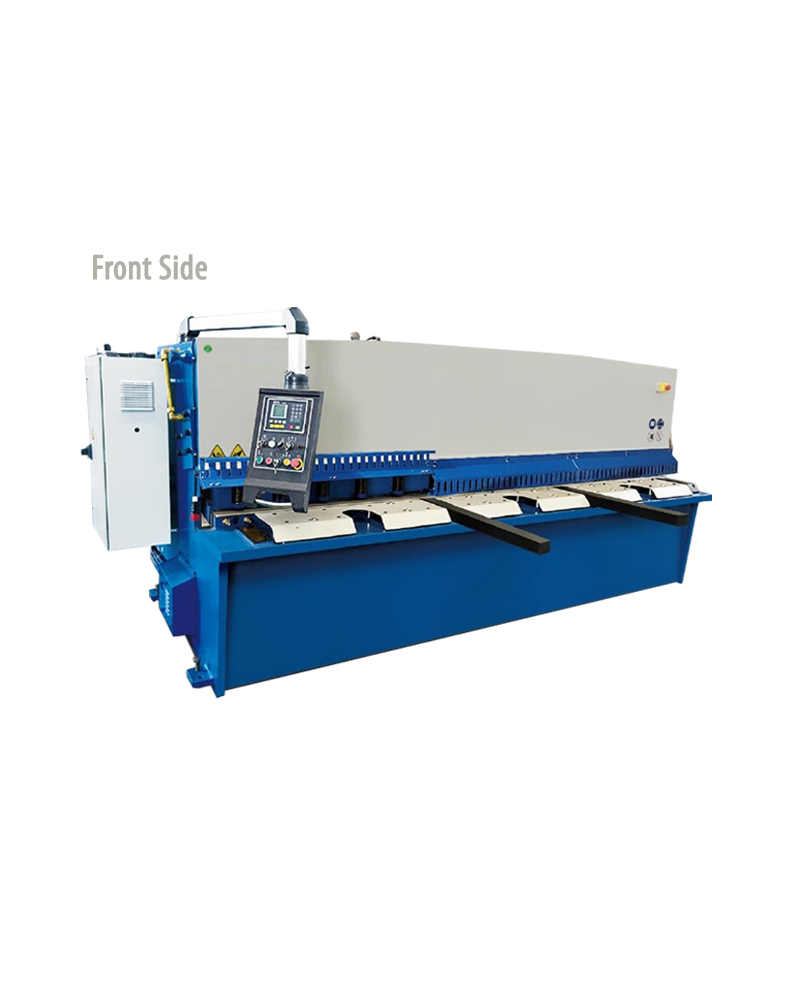

Hydraulic Swing Beam Shearing

Standard Equipment

  • 1.Estun E21S NC control System;
  • 2.X-axis electrical back-gauge
  • 3.DELTA Inverter controlled back gauge
  • 4.HIWIN Ball Screws & polished rod with 0.05 mm accuracy
  • 5.Squaring Arm and front Support Arms
  • 6.Bosch-Rexroth Hydraulic
  • 7.Germany EMB Tubing Connector
  • 8.Siemens Main Motor
  • 9.Schneider Electrics
  • 10.Hydraulic & Electrical overload protction
  • 11.Cutting Line llumination and wire for shadow line Cutting
  • 12.Top blade with two cuttting edges and bottom blade with four cutting edges
SKU: NMDE-002-1-1 Categories: ,

Description

Accuracy ball screw + linear guide construction, high performance servo motor and driver, to ensure the stop position precision. Synchronous transmission construction of unique design, stable and reliable.

Fast blade gap adjustment device
Simple and efficient manual adjustment style to reach blade gap step less adjustment.

Bosch-Rexroth Hydraulic System
Integrated hydraulic system, hydraulic drive, smooth, reliable, integrated, Hydraulic system design to reduce
problems brought about by leakage of hydraulic oil

Servo motor
High speed of servo motor and rotation smooth, stable torque, motor maintenance, high efficiency, low operating temperature.

Safety Euipment

  • Safety Standards (2006/42/EC):
    • EN 12622:2009+A1 : 2013
    • EN ISO 12100 : 2010
    • EN 60204-1:2006+A1:2009
  • Front Safety Fence
  • South Korea Kacon Foot Switch.
  • Back Safety Fence
  • Relay equipped with safety switch and protection device.
Model Cutting Thickness Cutting length Cutting Angle Material strength Stroke time Main motore Overall Dimensions
Type (mm) (mm) (°) (Mpa) (min) (kw) L x W x H (mm)
4 x 2500 4 2500 1°30′ ≤ 450 18 4 3040 x 1610 x 1620
4 x 3200 4 3200 1°30′ ≤ 450 18 7.5 3840 x 1610 x 1620
4 x 4000 4 4000 1°30′ ≤ 450 12 7.5 4600 x 1700 x 1700
4 x 6000 4 6000 1°30′ ≤ 450 7 11 6460 x 2100 x 3200
8 x 2500 6 2500 1°30′ ≤ 450 18 7.5 3040 x 1610 x 1620
6 x 3200 6 3200 1°30′ ≤ 450 14 7.5 3840 x 1610 x 1620
6 x 4000 6 4000 1°30′ ≤ 450 12 7.5 1620 x 1760 x 1700
6 x 6000 6 6000 1°30′ ≤ 450 8 11 5400 x 1760 x 1700
8 x 2500 8 2500 1°30′ ≤ 450 14 11 6480 x 2100 x 2300
8 x 3200 8 3200 1°30′ ≤ 450 12 11 3040 x 1700 x 1700
8 x 4000 8 4000 1°30′ ≤ 450 10 11 3860 x 1700 x 1700
8 x 5000 8 5000 1°30′ ≤ 450 8 7.5 4640 x 1700 x 1700
8 x 6000 8 6000 1°30′ ≤ 450 8 11 5400 x 2400 x 2000
10x 2500 10 2500 1°30′ ≤ 450 10 11 6480 x 2100 x 2350
10x 3200 10 3200 1°30′ ≤ 450 10 11 3040 x 1700 x 1700
10x 4000 10 4000 1°30′ ≤ 450 8 11 3860 x 1700 x 1700
10x 6000 10 6000 1°30′ ≤ 450 5 15 4650 x 2100 x 2000
12 x 2500 12 2500 2° ≤ 450 10 15 6500 x 2100 x 2000
12 x 3200 12 3200 2° ≤ 450 9 15 3140 x 2150 x 2000
12 x 4000 12 4000 2° ≤ 450 8 18.5 3880 x 2150 x 2000
12 x 5000 12 5000 2° ≤ 450 6 18.5 4680 x 2150 x 2000
12 x 5000 12 5000 2° ≤ 450 6 18.5 4680 x 2150 x 2000
12 x 6000 12 6000 2° ≤ 450 5 18.5 5900 x 2150 x 2000
12 x 8000 12 8000 2° ≤ 450 5 18.5 6900 x 2600 x 2700
16 x 2500 16 2500 2° ≤ 450 8 18.5 9000 x 3500 x 3500
16 x 3200 16 3200 2° ≤ 450 7 18.5 3140 x 2150 x 2000
16 x 4000 16 4000 2° ≤ 450 6 18.5 3880 x 2150 x 2000
16 x 5000 16 5000 2° 30′ ≤ 450 6 18.5 4850 x 2150 x 2200
16 x 6000 16 6000 2° 30′ ≤ 450 5 22 5900 x 2800 x 2700
16 x 8000 16 8000 2° 30′ ≤ 450 5 22 6900 x 2700 x 2700
20 x 2500 16 8000 3° ≤ 450 8 22 9000 x 3500 x 3500
20 x 3200 20 8000 2° 30′ ≤ 450 6 22 3440 x 2300 x 2500
20 x 4000 20 8000 2° 30′ ≤ 450 5 22 4150 x 2350 x 2700
20 x 8000 20 8000 3° ≤ 450 4 22 4850 x 2600 x 2400
25 x 2500 25 2500 3° ≤ 450 6 37 6700 x 3000 x 3000
25 x 3200 25 3200 3° ≤ 450 6 37 3200 x 2700 x 2900
30 x 2500 30 2500 3° ≤ 450 4 37 3300 x 2900 x 3000
30 x 3200 30 3200 3° 30′ ≤ 450 4 40 4200 x 2500 x 2600
40 x 2500 40 2500 4° ≤ 450 3 75 3200 x 3300 x 3200
