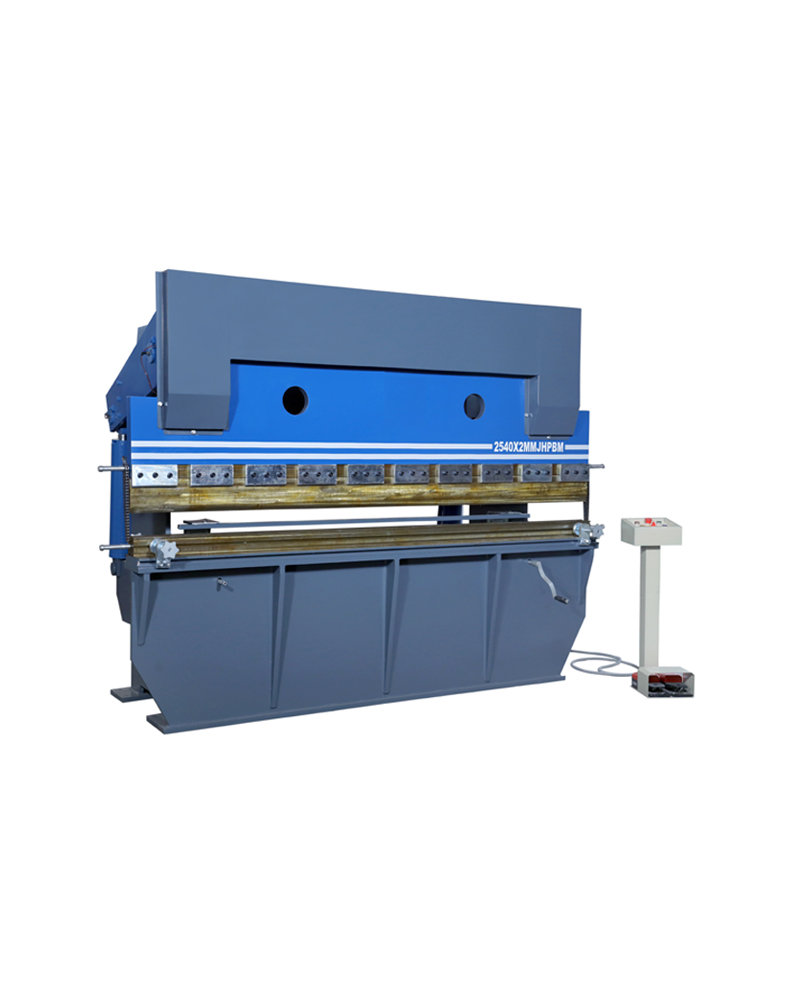

Indian Press Brake

Indian Press Brake

Optional Accessories

  • Goose Neck Punch & Other Tooling (drawing Required)
  • Motorized Back Guage With Delta Controlles
  • Nc Control Back Guage With Servo Motor
  • Electronic Stroke Counter
  • Automatic lubrication System.
  • First Fill Of Hydraulic Oil
SKU: NMDE-002-1-2-1-2 Categories: , ,

Description

Everest Engineers Hydraulic Press Brakes Are All Part Steel Constructed, Fabricated From Steel Is 226 Grade.Designed And Developed Through Years Of Experience In Sheet Metal Working Machineries.Everest Engineers Hydraulic Press Brakes Are Developed By Keeping Latest Technology In Mind. Both Cylinders Are Mounted At Back Side Of Press Brake And Are Synchronized For Parallelism Between Ram & Table, By Providing Mechanical links Connected With Cylinder. The Heavy Duty Steel Construction Frame Is So Designed To Absorb Heavy Shocks Of Overload. All Welding Edges Are Properly Machined For Best Weld Joints. The Electric Control Panel Is Fixed On Side Wall At Conventional Place For Easy Reach Of Operator. It Includes Push Button Pendant And Foot Switch. Standard “V” Block & “V” Punch And Manually Operated Back Gauge System Which Is Front Operated Are Supplied As A Standard Accessories. Hydraulic Components Are Of Reputed Make like Vickers, Rexroth, Dowty, Yuken, Polyhedron Etc.

Frame
The Frame Is Of All Steel Constructed, Fabricated From Steel Is 226 Grade. The Frame Is Designed To Take Heavy loads. The Interlocked Design Put The Direct Support To Frame. Thus Frame Is Strain Free And Eliminates Welds At Load Supports. Thus The Accuracy Of The Machine Is Never Disturbed.

Gauge
Mechanical Back Gauge Is Operated By Screw Arrangement For Easy And Accurate Cutting Operations.

lubrication
All Moving Parts Are Provided lubrication By Oil Cups & Hand Operated Pump For Smooth Operation

Standard Accessories

  • Main Drive Motor
  • Manual Back Gauge
  • Standard V-block & Punch
  • Movable Work Station With Pair Of Foot Switch
  • Fine Stroke Adjustment Rod With limit Switches
  • Electrical Control Panel With Selection Of Inch-once-auto Mode Of Operation

Note : Electrical Items Are Not Under Guarantee.

Model Ton Capacity (LXT) Table Length Hydraulic Press Brake Bending Capacity (in M.S. UTS)45KG/MM2 Table width Clear Pass Throat Depth Ram Stroke Open Height Power H.P. Ram Speed
Over All Packing Dimension Approx. weight in kgs.
length width height
JHPB-1 20 1525 1525×2 1250×3 180 1000 200 100 250 3 37 9 50 1700 1050 1900 1800
JHPB-2 30 2030 2030X2 1525X3 180 1500 200 100 250 5 33 7 45 2200 1150 1900 2200
JHPB-3 40 2540 2540×3 2030×3 200 2000 125 100 250 5 33 7 45 2700 1150 2000 2600
JHPB-4 50 3100 3100×2 2540×3 200 2500 200 125 250 5 30 8 45 3350 1200 2300 3600
JHPB-5 60 1525 1525×4 1250×4 200 1000 200 125 330 7.5 36 5 42 2750 1050 1900 3500
JHPB-6 60 2030 2030×4 1525×5 215 1500 200 125 330 7.5 36 5 42 2750 1150 1900 4200
JHPB-7 80 2540 2540×4 2030×5 215 2000 200 150 330 10 35 5 40 3350 1200 2030 5300
JHPB-8 100 3100 3100×4 2540×5 215 2500 250 150 330 10 35 5 40 3350 1200 2030 5300
JHPB-9 125 4000 4000×3 3100×5 215 3500 250 150 330 15 30 5 42 4350 1650 2540 7500
JHPB-10 80 1525 1525×6 1250×8 215 1000 250 150 330 7.5 36 6 41 1750 1550 2000 2800
JHPB-11 100 2030 12030×6 1525×8 215 1500 250 150 330 10 35 5 40 2250 1550 2200 4800
JHPB-12 125 2540 2540×6 2030×8 235 2000 300 150 350 10 40 5 42 2750 1650 2540 5900
JHPB-13 160 3100 3100×6 2540×8 235 2500 300 150 350 15 35 6 38 3350 1800 2600 7600
JHPB-14 200 4000 4000×6 3100×8 235 3500 300 200 350 20 37 6 39 4350 2050 2750 9600
JHPB-15 100 1525 1525×8 1250×10 235 1000 250 150 330 10 35 5 40 1750 1700 2100 4300
JHPB-16 125 2030 2030×8 1525×10 235 1500 300 150 350 10 40 5 42 2250 1800 2300 5800
JHPB-17 160 2540 2540×8 2030×10 250 2000 300 150 350 15 35 6 38 2750 1800 2600 7200
JHPB-18 200 3100 3100×8 2540×10 250 2500 300 200 400 20 37 6 39 3350 2050 2750 8700
JHPB-19 250 4000 4000×8 3100×10 250 3500 300 200 400 25 35 6 35 1350 2100 2800 12000
JHPB-20 125 1525 1525×10 1250×12 250 1000 300 150 330 10 40 5 42 1750 1850 2600 5100
JHPB-21 200 2030 2030×10 1225×12 250 1500 300 200 350 20 37 6 39 2250 1850 2600 6500
JHPB-22 200 2540 2540×10 2030×12 275 2000 300 200 400 20 37 6 39 2750 1800 2600 8700
JHPB-23 250 3100 3100×10 2540×12 275 2500 300 200 400 25 35 6 35 3350 2100 2800 11500
JHPB-24 300 4000 4000×10 3100×12 275 3500 300 250 400 30 35 6 36 4350 2150 2900 14500
JHPB-25 200 2030 2030×12 1525×16 275 1500 300 200 400 20 37 6 39 2250 200 2600 7200
JHPB-26 250 2540 2540×12 2030×16 300 2000 300 200 400 25 35 6 35 2750 2000 2700 10500
JHPB-27 300 3100 3100×12 2540×16 300 2500 300 200 400 30 35 5 36 3350 2150 2900 12500
JHPB-28 400 4000 4000×12 3100×16 300 3500 350 250 500 40 32 5 32 4350 2200 3100 18500
JHPB-29 300 2030 2030×16 1525×20 300 1500 350 200 400 30 35 5 36 2250 2150 2700 8000
JHPB-30 300 2540 2540×16 2030×20 325 2000 350 200 400 30 35 5 36 2750 2150 2700 11500
JHPB-30 300 2540 2540×16 2030×20 325 2000 350 200 400 30 35 5 36 2750 2150 2700 11500
JHPB-31 400 3100 3100×16 2540×20 325 2500 350 250 500 40 32 5 32 3350 2200 2900 19500
JHPB-32 500 4000 4000×16 3100×20 325 3500 350 250 500 50 28 5 30 4350 2300 3100 21500
