JM 3 Straightener Machine Series

Optional Accessories & Features :

  • Turbine down pressure adjustment
  • Manual grease pump
  • Material discharge arc wheel adjustment
  • Material rack hydraulic expansion
  • Swelling reinforcement wheel
SKU: NMPN-002-1-1-1-1 Categories: , ,

Description

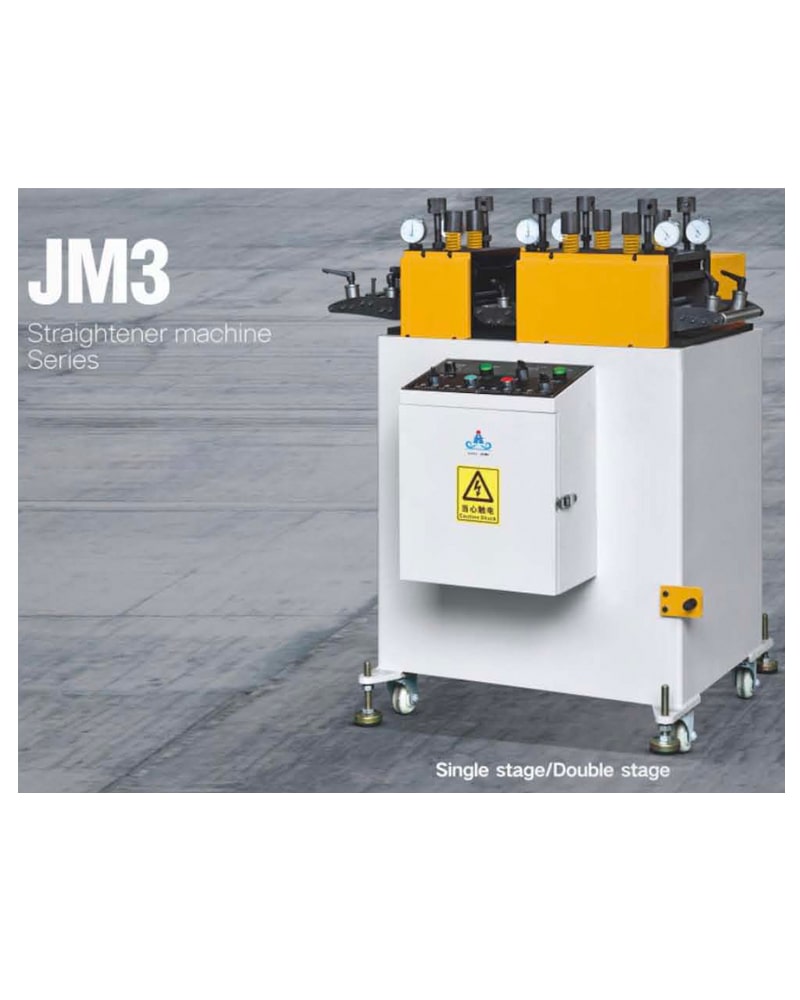

JM 3 Straightener Machine Series
Precision Material Straightening Solutions
Single Stage / Double Stage

The JM3 Straightener Machine Series offers precision straightening solutions for industrial applications. Designed with advanced engineering, these machines provide reliable performance for various material processing needs. Available in both single and double stage configurations, the JM3 series ensures optimal material flatness and consistency for enhanced manufacturing quality and efficiency.

  • Four-Point Independent Adjustment
    Precise control with four-point independent pressing system for optimal material straightening and consistency.

  • Dual Stage Options
    Available in both single stage and double stage configurations to suit different production requirements.

  • Consistent Performance
    Maintains a steady straightening speed of 15M/min across all models for reliable production output.

  • Manual Coil Expansion
    Convenient hand crank operation for coil expansion, ensuring easy material loading and setup.

  • Precision Roller System
    32mm diameter rollers with 7 upper and 8 lower rollers for effective material straightening.

  • Flexible Material Handling
    Accommodates material widths from 200mm to 500mm with consistent 0.2-1.2mm thickness range.

Model
Material Width (mm)
Material Thickness (mm)
Roller Diameter (Φ)
Adjustment Method
Speed (M/min)
Motor Power
Material Weight (kg)
Material ID (Φ)
Coil Expansion
DSL32-200
200
0.2-1.2
32 (7 upper, 8 lower)
Four-point independent pressing
15
400W+750W
2000
450-530
Hand crank
DSL32-300
300
0.2-1.2
32 (7 upper, 8 lower)
Four-point independent pressing
15
400W+1.5KW
500
450-530
Hand crank
DSL32-400
400
0.2-1.2
32 (7 upper, 8 lower)
Four-point independent pressing
15
400W+1.5KW
2000
450-530
Hand crank
DSL32-500
500
0.2-1.2
32 (7 upper, 8 lower)
Four-point independent pressing
15
400W+1.5KW
2000
450-530
Hand crank
