KGS Hydraulic Surface Grinder Machine
Main Features :
- Well-designed cast iron structure provides excellent dampening.
- Flange mount spindle cartridge for superior side grinding rigidity.
- Grinding spindle with low-maintenance, preloaded high precision angular ball bearings (NSK P4 grade).
- “V” and flat type guide ways with precision hand-scraped turcite saddle ways for smooth and long-lasting performance.
- Table guideways hardened, ground, and counter-laminated with PTFE (TEFLON) for high wear-resistance.
- Centralized automatic lubrication system supplies oil to guide-ways and lead-screws during operation.
- Separate hydraulic tank prevents heat and vibrations from transferring to the machine.
- Electric components and functional modules are well arranged in the electric cabinet for easy maintenance and troubleshooting.
- Adjustable magnetic force.
- Safety 24V control circuit power.
Description
KGS Hydraulic Surface Grinder Machine

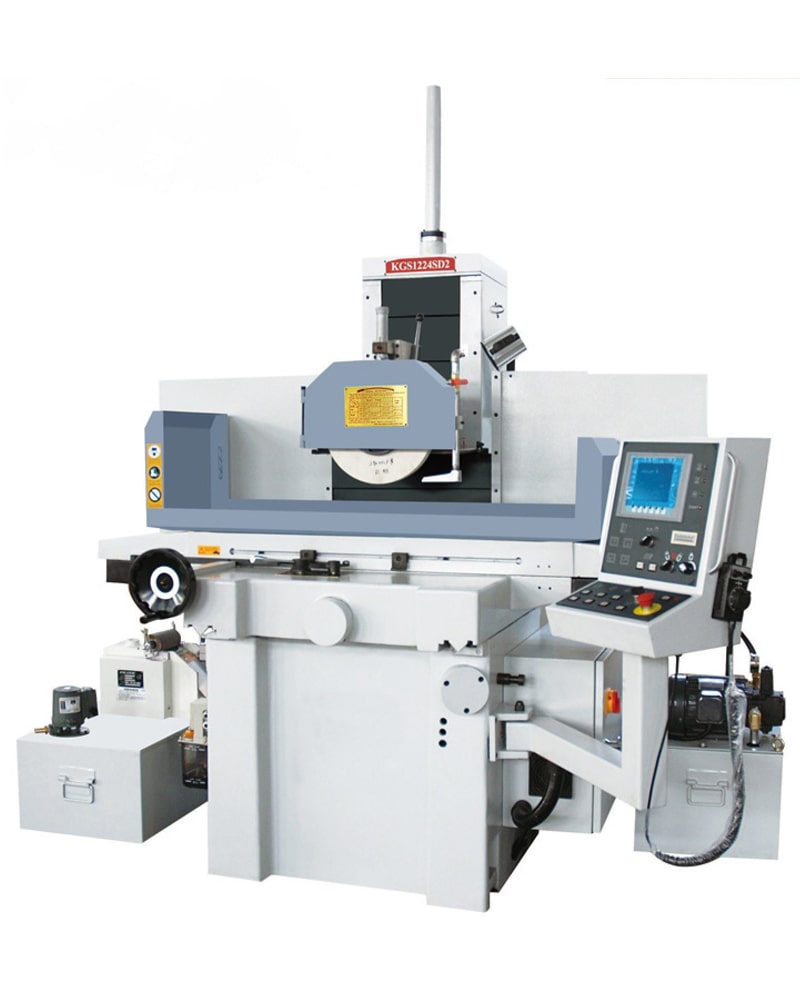

KGS1224SD / KGS1024SD Full Auto PLC Hydraulic Surface Grinder Machine – The KGS SD series PLC-controlled hydraulic surface grinder features a touchscreen interface and servo drive for precise vertical spindle feed. With programmable operations including rough grinding, fine grinding, and spark out, it ensures high precision grinding. The minimal automatic vertical feed of 0.001mm makes it ideal for applications requiring extreme accuracy.
Standard Accessories
|
No.
|
Accessory
|
No.
|
Accessory
|
|
1
|
Grinding wheel
|
2
|
Wheel flange
|
|
3
|
Wheel balancing base
|
4
|
Wheel balancing arbor
|
|
5
|
Extractor
|
6
|
Diamond dresser
|
|
7
|
Leveling pad
|
8
|
Anchor bolt
|
|
9
|
Tool box witd tools
|
10
|
Electric magnetic chuck
|
|
11
|
Cooling system
|
12
|
Working light
|
Optional Accessories
|
Serial No.
|
Name of Article
|
|
1
|
Rear splash guard
|
|
2
|
Overhead parallel dresser
|
|
3
|
Hydraulic tank oil cooling
|
|
4
|
Cooling & suction device
|
|
5
|
Magnetic separator
|
|
6
|
Cooling magnetic paper filter
|
|
Parameter
|
Unit
|
KGS1224SD
|
KGS1024SD
|
|
| Working Surface of Table |
mm
|
300×600 (12″×24″)
|
255×600 (10″×24″)
|
|
| Max. Table Travel |
mm
|
660
|
660
|
|
| Max. Cross Travel |
mm
|
340
|
280
|
|
| Distance Between Table Surface and Spindle Center |
mm
|
520
|
535
|
|
| Max. Table Load |
kgs
|
420
|
300
|
|
| T-Slot (Number×Widtd) |
mm
|
1×14
|
1×14
|
|
| Table Speed |
m/min
|
5~25
|
5~25
|
|
| Cross feed Handwheel | 1 gard |
mm
|
0.02
|
0.02
|
| 1 rev |
5
|
5
|
||
| Automatic Cross feed of Saddle |
mm
|
0.5~12
|
0.5~12
|
|
| Power Cross Feed | 50 HZ |
mm/min
|
790
|
790
|
| 60 HZ |
950
|
950
|
||
| Grinding Wheel Dimensions |
mm
|
355×40×127
|
200×25×32/31.75
|
|
| Spindle Speed 50HZ |
rpm
|
1450
|
2850
|
|
| Spindle Speed 60HZ |
1740
|
3420
|
||
| Vertical Handwheel | 1gard |
mm
|
0.001
|
0.001
|
| 1 rev |
0.5
|
0.1
|
||
| Automatic Down Feed Rate |
mm
|
0.001~1
|
0.001~1
|
|
| Power Head Increment |
mm/min
|
210
|
210
|
|
| Spindle Motor |
kW
|
4
|
2.2
|
|
| Vertical Motor |
W
|
90
|
90
|
|
| Hydraulic Motor |
kW
|
1.5
|
1.5
|
|
| Dust Collection Motor |
W
|
550
|
550
|
|
| Coolant Motor |
W
|
90
|
90
|
|
| Crossfeed Motor |
W
|
90
|
60
|
|
| Floor Space |
mm
|
2600×2500
|
1900×2400
|
|
| Packing Dimensions |
mm
|
2150×1940×2195
|
2090×1680×2135
|
|
| Net Weight |
kgs
|
1910
|
1730
|
|
| Gross Weight |
kgs
|
2210
|
1980
|
|
