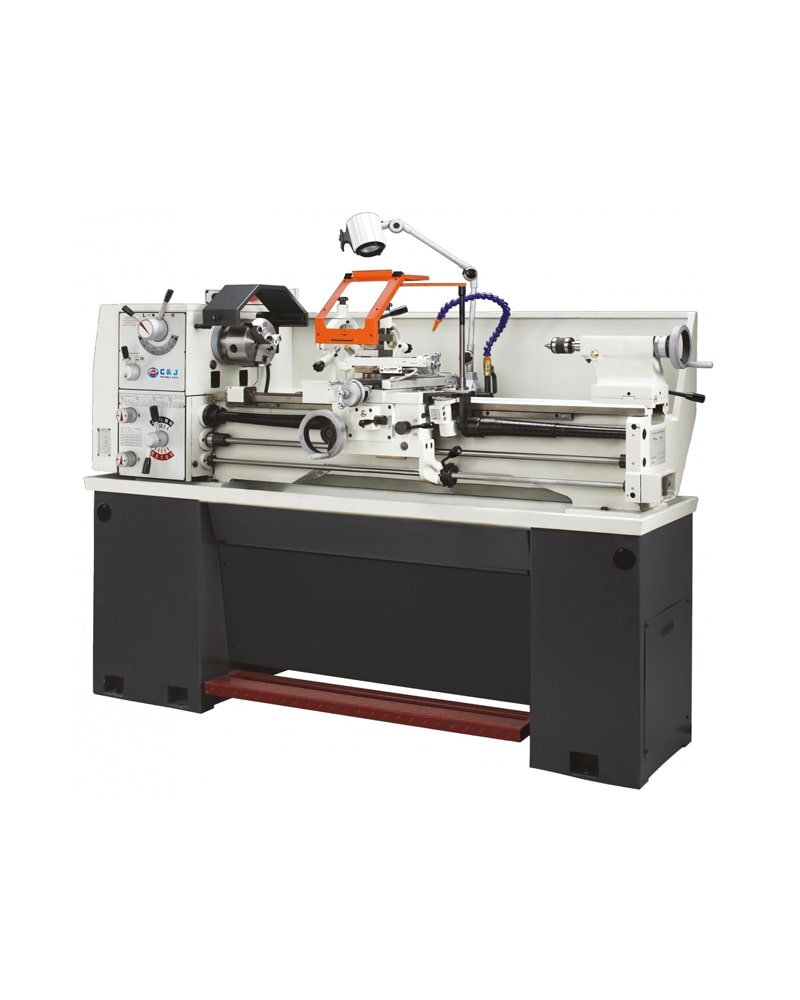

Lathe Machine C0636A

Features :

  • Precision ground and supersonic frequency hardened bed ways
  • The spindle is supported with precision roller bearings
  • Headstock gears are made of high quality steel, ground and hardened
  • Spindle speed range 70-2000RPM
  • Sealed and easy operating feed box has various feeds and thread cutting functions.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Categories: , , ,

Description

Lathe Machine C0636A is a precise and durable tool featuring a robust construction with precision ground and supersonic frequency hardened bed ways. Its headstock gears are made of high-quality, ground, and hardened steel, supported by precision roller bearings for consistent performance. Offering a wide spindle speed range of 70-2000 RPM across 8 steps, it’s suitable for various tasks. The machine includes a sealed, easy-to-operate feed box with diverse feeds and thread cutting functions, supporting both inch (4-56 T.P.I.) and metric (0.4-7mm) threading, as well as diametral and module threads. It is powered by a 2HP (1.5KW) electric motor available in multiple voltage configurations.

Model
C0636A
Max. swing over bed
13″(330mm)
14″(360mm)
Max. swing in gap
183/4″(476mm)
197/8″(506mm)
Max. swing over slide
71/4″(185mm)
81/2″(215mm)
Bed widtd
73/8″(187mm)
Max. Lengtd of workpiece
30″(750mm)40″(1000mm)
Spindle nose
D1-4
Spindle bore
11/2″(Φ38mm)
Taper of bore in spindle Morse
No.5
Spindle speed steps
8
Spindle speed scope
70~2000r/min
Inch tdread
4~56T.P.I/32
Metric tdread
0.4~7mm/32
Diametral tdread
8~120D.P./33
Module tdread
0.2~3.5MP/27
Longitudinal feed range
0.0032~0.1067in/r(0.082~2.71mm/r)
Cross feed range
0.00086~0.0367in/r(0.022~0.933mm/r)
Max. travel of tailstock quill
35/8″(95mm)
Taper hole of tailstock
No.3
Electric motor
2HP(1.5KW)110v or 220v(1ph)
220v or 380v(3ph)
Net weight / Gross weight (1000mm)
495/595kg
