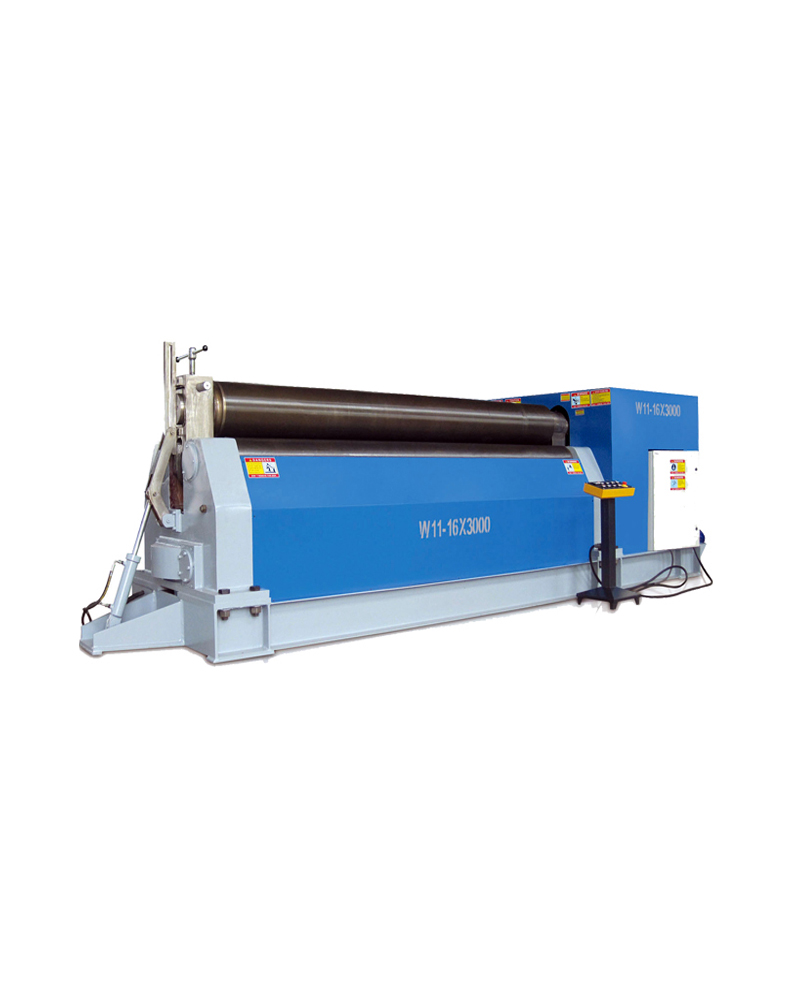

Mechanical Theess Roller Rolling Machine
The Wl11-25X2500 Mechanical Theess Roller Rolling Machine is a high-performance metal plate rolling machine designed for precision and durability. Ideal for fabrication workshops, this three-roll mechanical model provides efficient bending capabilities for medium to heavy-duty sheets. Its robust construction, user-friendly operation, and reliable output make it a trusted tool in the metalworking industry.
Description
Wll-25 X 2500 Mechanical Theess Roller Rolling Machine
- The W11 is the latest evolution of the traditional three-roll double pinch plate-bending machine. It has been designed to cover the needs of the fabrication shop: Strength, User Friendliness, and Versatility. Jugao’s experience in manufacturing heavy and super-heavy duty machines is applied to the design of the W11 series of plate rolls.
- The Wl1 series is the most precise 3-roll machine in its category. The RGS design reduces to a minimum the distance between the bending points guaranteeing higher bending accuracy.
- The MCS bearing system, incorporating 4 independent bearings for each bending roll is a standard feature of the W11. It guarantees higher reliability (higher capacity of load absorption) and increases the range for tilting the side rolls, resulting in more versatility, when rolling cones.
| Model | Max roll Thickness (mm) | Max roll width (mm) | Yield strengtd (Mpa) | Roll speed (m/min) | Min roll dia (mm) | Upper roller dia (mm) | Down rollers dia (mm) | Bottom rollers distance (mm) | Motor (kw) | Dimension (mm) |
| W11-4X1500 | 4 | 1500 | 245 | 5 | 300 | 150 | 140 | 185 | 3 | 2900×720×1000 |
| W11-6X1500 | 6 | 1500 | 245 | 5 | 380 | 160 | 140 | 220 | 4 | 2900×720×1000 |
| W11-6X2000 | 6 | 2000 | 245 | 4.5 | 380 | 170 | 160 | 260 | 5.5 | 3650×820×1050 |
| W11-6X3200 | 6 | 3200 | 245 | 4.5 | 380 | 220 | 180 | 280 | 7.5 | 4850×1100×1100 |
| W11-8X2000 | 8 | 2000 | 245 | 4.5 | 400 | 185 | 170 | 260 | 5.5 | 3700×820×1050 |
| W11-8X2500 | 8 | 2500 | 245 | 4.5 | 550 | 240 | 180 | 280 | 7.5 | 4150×1100×1100 |
| W11-12X2000 | 12 | 2000 | 245 | 4.5 | 550 | 240 | 180 | 280 | 7.5 | 3650×1100×1100 |
| W11-12X2500 | 12 | 2500 | 245 | 4.5 | 600 | 260 | 220 | 320 | 11 | 4200×920×1200 |
| W11-12X3000 | 12 | 3000 | 245 | 4 | 700 | 280 | 240 | 360 | 11 | 4900×1300×1300 |
| W11-16X2000 | 16 | 2000 | 245 | 4 | 600 | 260 | 220 | 320 | 7.5 | 3700×920×1200 |
| W11-16X2500 | 16 | 2500 | 245 | 4 | 700 | 280 | 240 | 360 | 11 | 4400×1300×1300 |
| W11-16X3200 | 16 | 3200 | 245 | 4 | 850 | 340 | 260 | 430 | 15 | 5300×1400×1400 |
| W11-20X2000 | 20 | 2000 | 245 | 4 | 700 | 280 | 240 | 360 | 11 | 3900×1300×1300 |
| W11-20X2500 | 20 | 2500 | 245 | 4 | 850 | 340 | 260 | 430 | 15 | 4600×1400×1400 |
| W11-25X2000 | 25 | 2000 | 245 | 4 | 850 | 330 | 270 | 480 | 15 | 4100×1400×1400 |
| W11-25X2500 | 25 | 2500 | 245 | 4 | 900 | 370 | 270 | 480 | 22 | 5200×1550×2000 |
| W11-30X2500 | 30 | 2500 | 245 | 4 | 1200 | 420 | 360 | 550 | 30 | 5760×1700×2100 |
| W11-30X3000 | 30 | 3000 | 245 | 4 | 1200 | 450 | 390 | 600 | 37 | 5400×1700×2100 |
| W11-30X3200 | 30 | 3200 | 245 | 4 | 1200 | 480 | 400 | 600 | 37 | 7600×2300×2600 |
| W11-40X2000 | 40 | 2000 | 245 | 4 | 1200 | 500 | 400 | 600 | 37 | 6400×2030×2800 |
| W11-40X2500 | 40 | 2500 | 245 | 4 | 1400 | 480 | 400 | 600 | 37 | 6900×2300×2800 |
| W11-40X3000 | 40 | 3000 | 245 | 4 | 1600 | 500 | 400 | 350 | 45 | 8500×1980×2250 |
| W11-50X3000 | 50 | 3000 | 245 | 4 | 2000 | 600 | 480 | 700 | 60 | 9900×3100×3500 |
| W11-60X3000 | 60 | 3000 | 245 | 4 | 2000 | 700 | 560 | 800 | 75 | 9700×3200×2700 |
