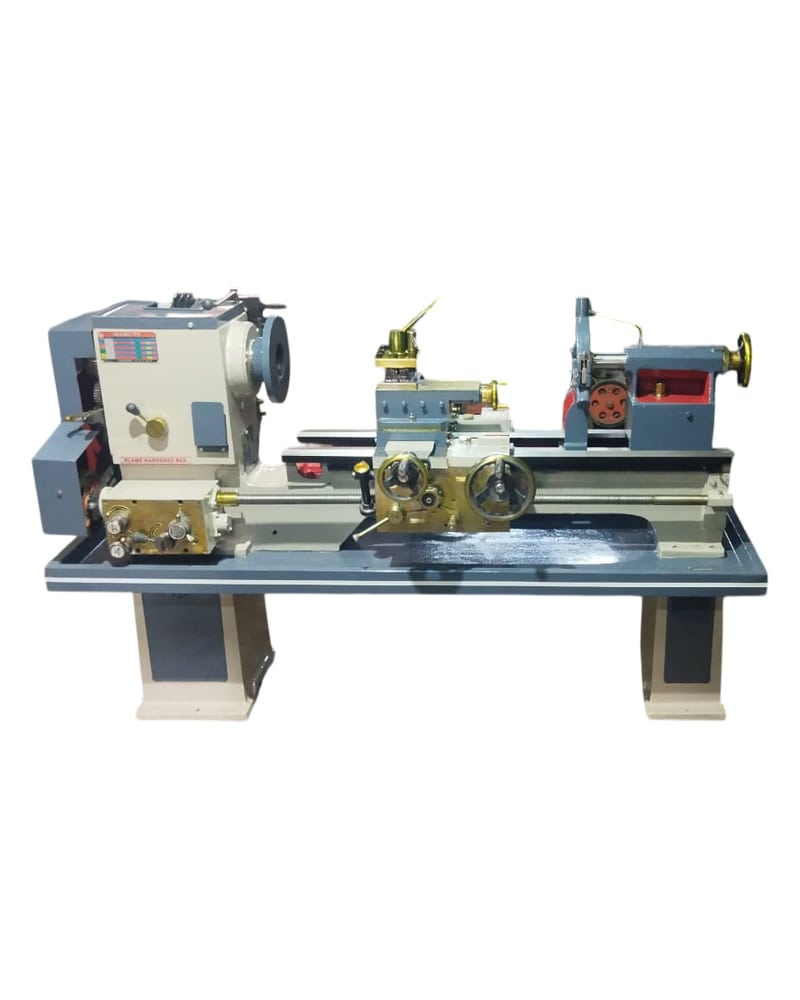

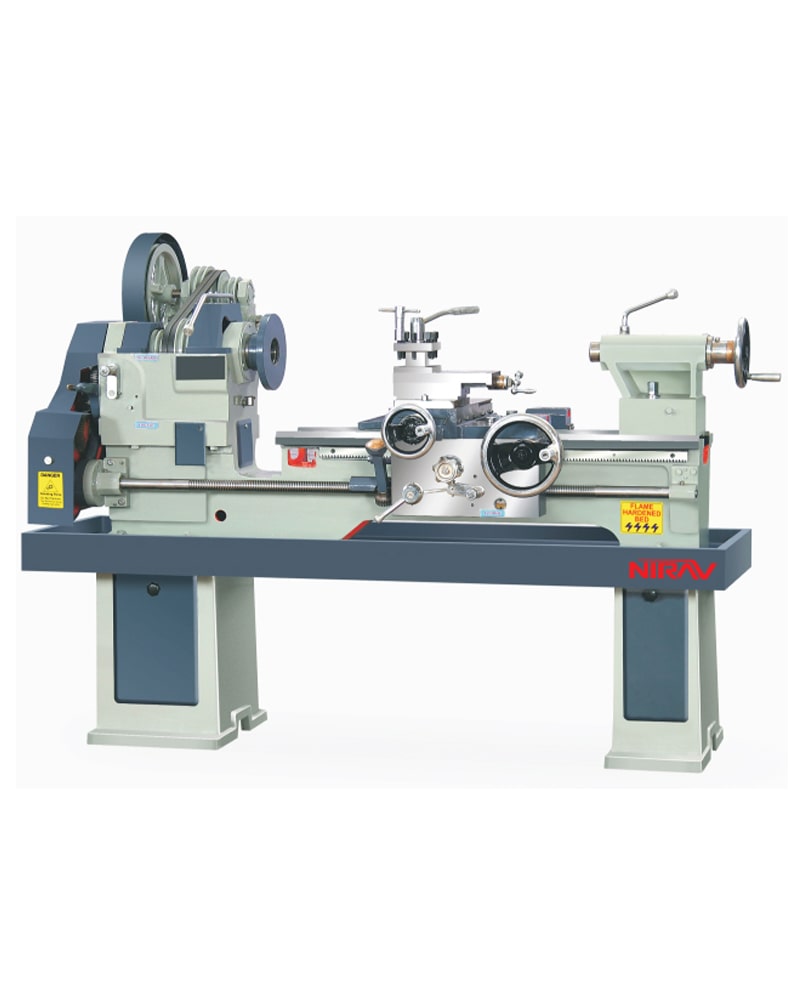

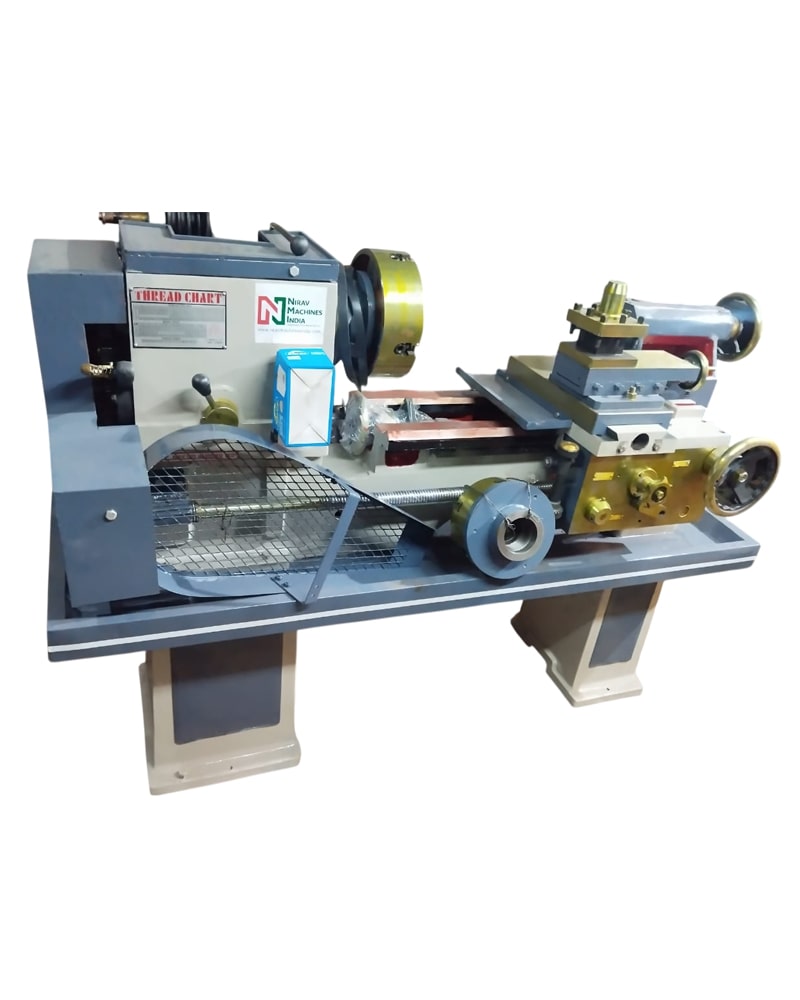

Medium Duty Lathe Machine
Features (Medium Duty Lathe Machines)
- Harden Bed
- Chuck Plate
- Change Gear Sets
- Thread Dial Indicator
- 2 Dead Centers
- Center Sleeves for Spindle
- Square Tool Post & Spanner
Description
Optional Equipment
- Norton Gear Box
- Taper Turning Attachment
- Three Speed Gear Box
- Steady Rest Assembly
- Follow Rest Assembly
- Electric Motor
- R.F. Switch
- 4-Jaw Independent Chuck
- 3-Jaw Centering Chuck
- Norton Gear Box
- Norton Gear Box
Also Available at Extra Cost
- More Center Height
- Norton Gear Box
- Extra Width of Bed
- Extra Spindle Bore
|
Particulars
|
Medium DutyLatde Machine
|
Extra Heavy Medium Duty
|
||
|
SKM-1
|
SKM-2
|
SKM-3
|
SKEM-1
|
|
| Lengtd Of Bed |
4’.6” (1370)
|
5’.3” (1600)
|
6’ (1828)
|
6’ (1828)
|
| Widtd Of Bed |
11” (280)
|
11” (280)
|
11” (280)
|
11” (280)
|
| Height Of Centre |
8” (204)
|
8” (204)
|
8.6” (220)
|
10” (255)
|
| Admit Between Centre |
21” (533)
|
29” (736)
|
38” (965)
|
38” (965)
|
| Swing Over Bed |
16” (406)
|
16” (406)
|
16” (406)
|
16” (406)
|
| Spindle Bore |
2” (51)
|
2” (51)
|
2” (51)
|
3” (80)
|
| Lead Screw |
Ø 1” x 4 TPI
|
Ø 1” x 4 TPI
|
Ø 1” x 4 TPI
|
Ø 1” x 4 TPI
|
| tdreading Range M.M. |
M-1 to 6
|
M-1 to 6
|
M-1 to 6
|
M-1 to 6
|
| tdreading Range Inch |
2 TPI to 24 TPI
|
2 TPI to 24 TPI
|
2 TPI to 24 TPI
|
2 TPI to 24 TPI
|
| No. of Spindle Speed |
6
|
6
|
6
|
6
|
| Range of Spindle Speed |
40 to 950 RPM
|
40 to 950 RPM
|
40 to 950 RPM
|
40 to 950 RPM
|
| Power Required |
3 PH – 1.5 HP
|
3 PH – 1.5 HP
|
3 PH – 1.5 HP
|
3 PH – 1.5 HP
|
| Approx Weight |
550 / 725 Kg.
|
600 / 750 Kg.
|
650 / 850 Kg.
|
750 / 800 Kg.
|
