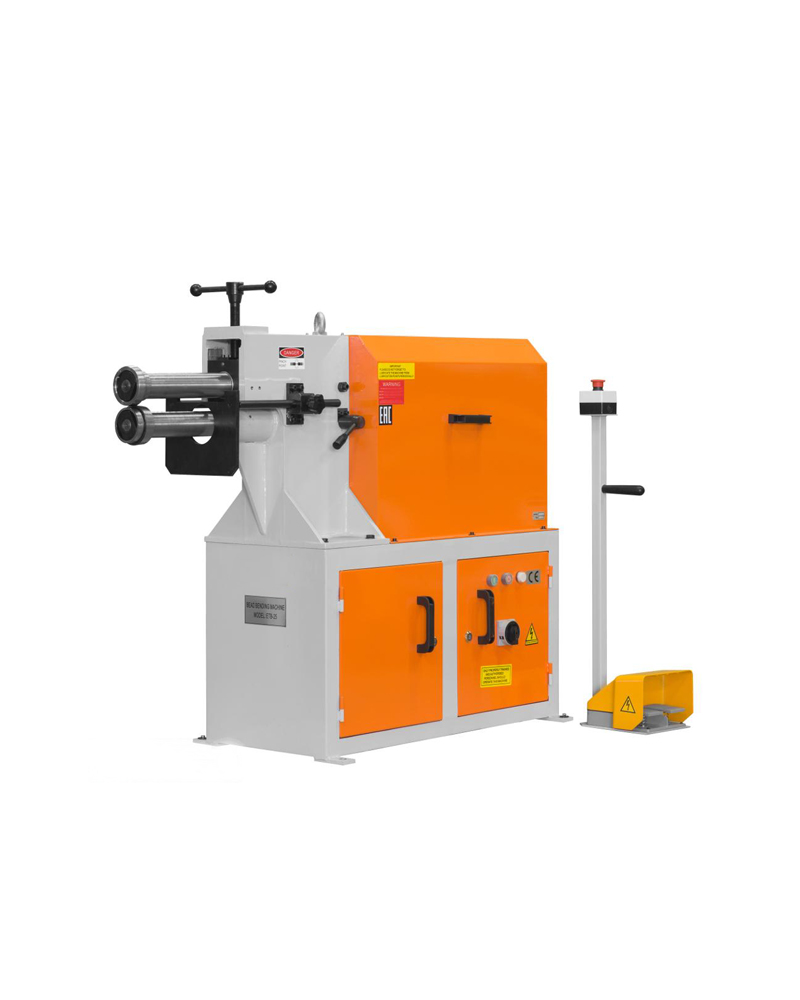

Motorised Beading Machine
The Hand Type Motorised Beading Machine is a robust and versatile manual tool designed for forming beads and strengthening sheet metal panels. It is built with heavy-duty cast iron construction, ensuring long service life and stable operation. Ideal for workshops, auto body repair, HVAC applications, and custom fabrication work.
Description
Technical Features of ETB-25 Electric Metal Bead Bending Machine:
- Heavy and solid cast iron construction for maximum durability.
- Adjustable bottom spindle made of special steel.
- Self-braking motor with subframe (for E-type models).
- Easy foot pedal control (E-type).
- Sturdy, steel welded construction frame.
- Adjustable idle roller for flexible operation.
- Steel shaft supported with bronze bushings.
- Reduction motor with integrated brake system.
- Convenient roller movement using foot pedal.
- Complete setup with a stand.
- Comes standard with 4 sets of forming rollers.
| Model | Max. Thickness (mm) | Max. Width (mm) | Dia. of roll (mm) | Motor Power (kW) | Packing Size (cm) | N.W/G.W (kg) |
| ESR-1300×2.5 | 2.5 | 1300 | 90 | 1.5 | 200x72x120 | 540/600 |
| ESR-1300×4.5 | 4.5 | 1300 | 120 | 2.2 | 200x76x127 | 750/830 |
| ESR-1550×3.5 | 3.5 | 1550 | 120 | 2.2 | 222x76x127 | 790/890 |
| ESR-2020×3.5 | 3.5 | 2020 | 127 | 40 | 270x87x130 | 1100/1300 |
| ESR-1300×6.5 | 6.5 | 1300 | 150 | 3 | 282x87x134 | 1100/1190 |
| ESR-2070×2.5 | 2.5 | 2070 | 120 | 2.2 | 282x87x130 | 1060/1200 |
| ESR-2070×3.5 | 3.5 | 2070 | 127 | 3 | 282x87x130 | 1110/1250 |
