Motorized Twin Decoiler / Re-Coiler

Features :

  • Double head decoilers with twin decoiling units.
  • Double end decoiler machine ranges start from 500 kg weight.
  • Two mandrels allow quick coil changeover to reduce downtime.
  • Low voltage antenna sensor and limit arm type sensor for loop control.
  • Speed of line adjustable up to 15 meters/min as per requirement.
  • Suitable for handling coils with varying diameters and widths.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1 Categories: , ,

Description

Motorized Twin Decoiler / Re-Coiler

We design and produce double head decoilers with twin decoiling units. These machines are designed for efficient coil handling in production lines. The double end decoiler ranges start from 500 kg weight capacity. Two mandrels allow the operator to keep a second coil ready while the first coil is being uncoiled, reducing downtime and improving productivity.

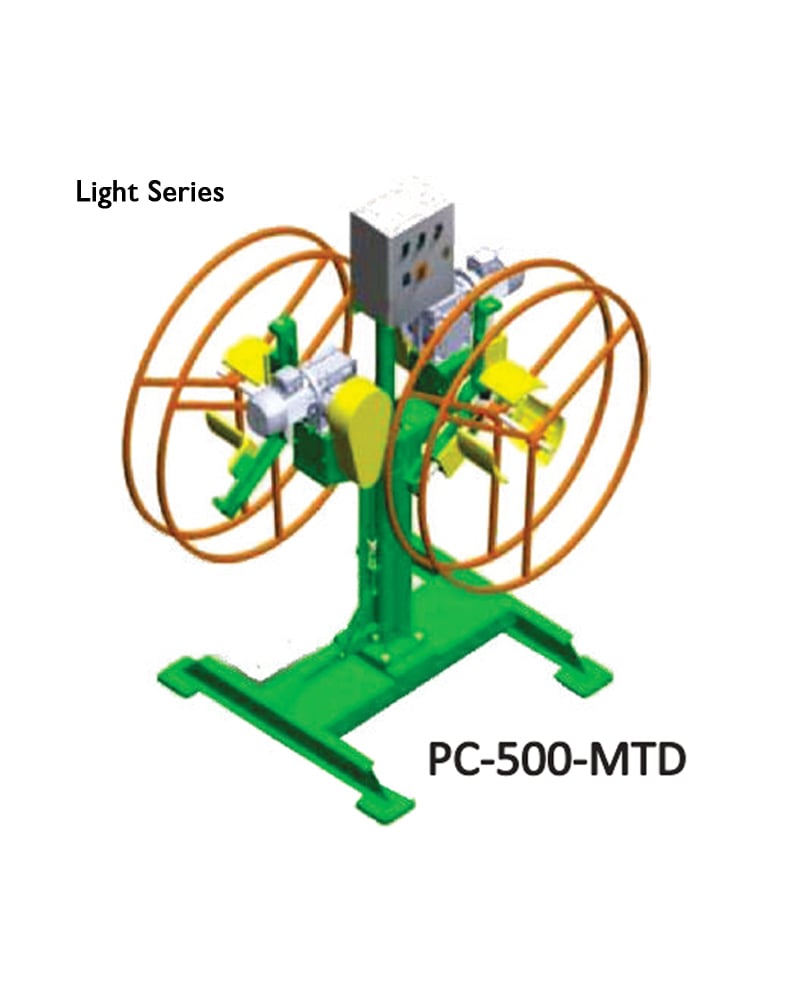

Light Series PC 500 MTD
Max Coil Weight
 500 x 2 Kgs.
Max Coil Width
 150 mm
Jaw Expansion Range
 150-400 / 250-500 mm
Coil Outer Diameter
 800 / 1200 mm
Speed of line
 12 – 15 Meter / Min. (As per requirement)
Loop Control
 VIA Low Voltage Antenna sensor / Limit arm type sensor

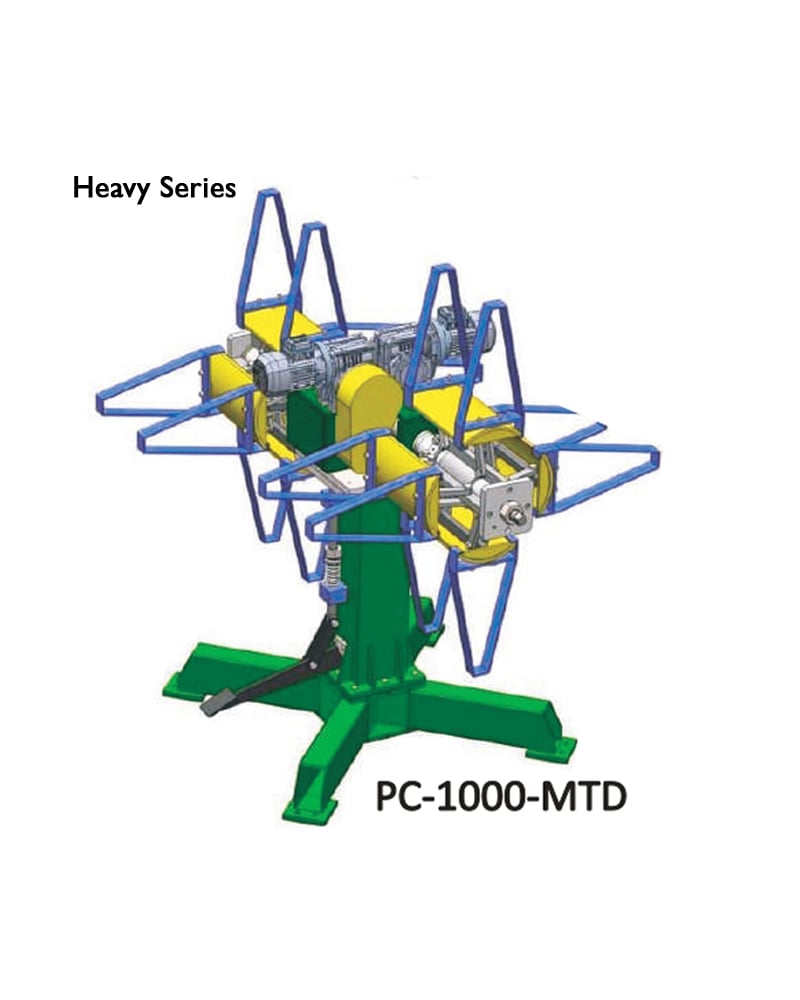

Heavy Series PC 1000 MTD
Max Coil Weight 1000 x 2 Kgs.
Max Coil Width 300 mm
Jaw Expansion Range 330-460 / 380-510 mm
Coil Outer Diameter 1200 mm
Speed of line 12 – 15 Meter / Min. (As per requirement)
Loop Control VIA Low Voltage Antenna sensor / Limit arm type sensor
