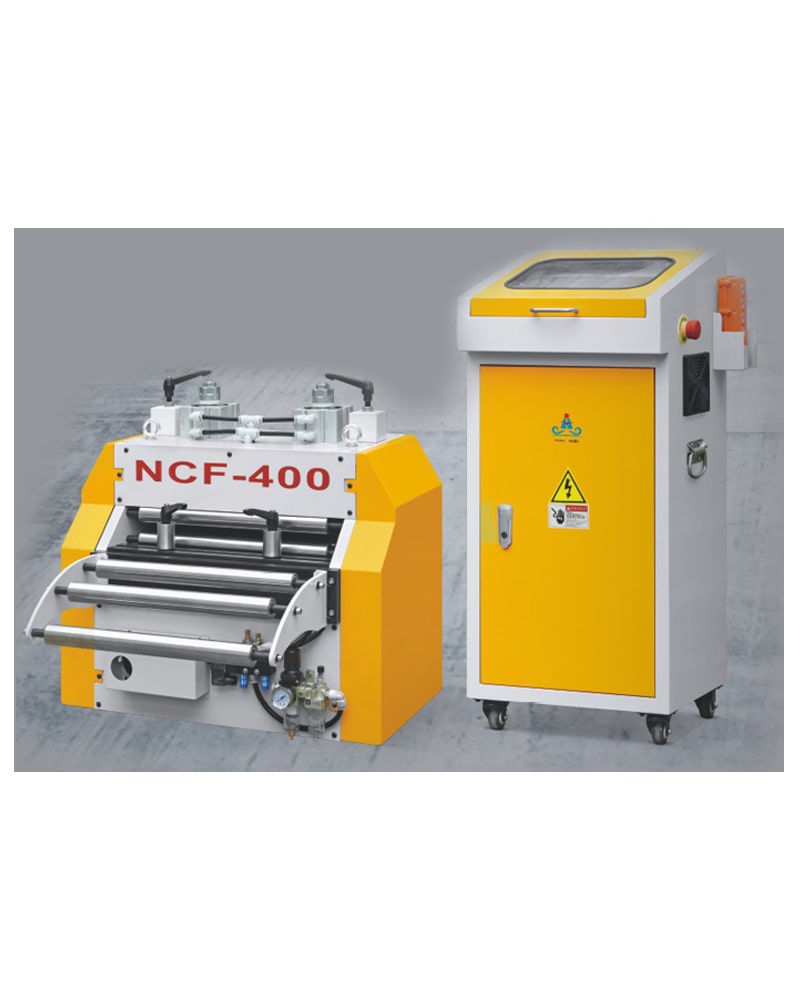

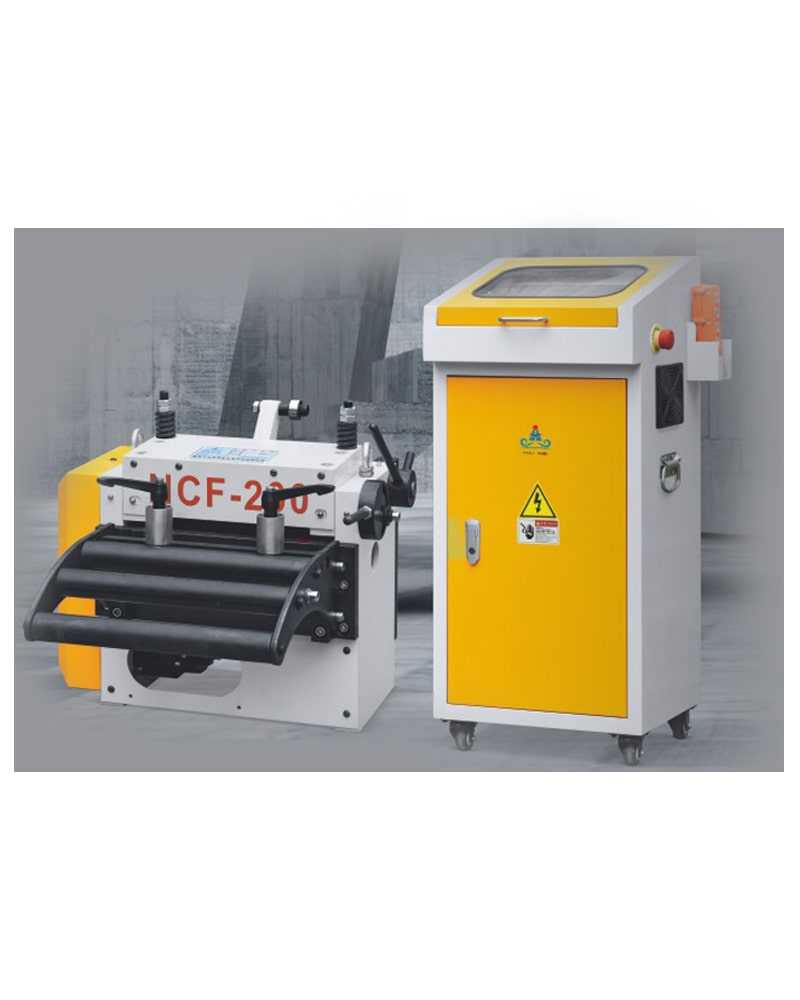

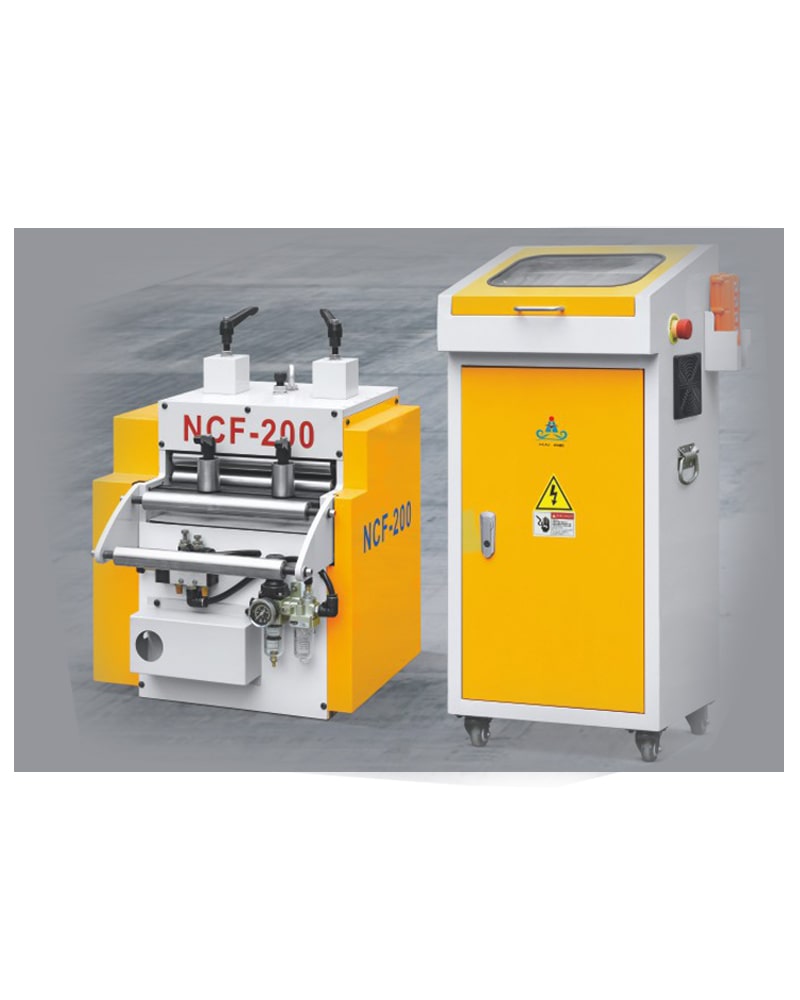

NCF Servo Roll Feeder
Features :
- High-precision feeding : Closed-loop control guarantees feeding accuracy within ±0.03mm.
- Multi-stage feeding : Up to 10 groups of feeding lengths; each group can run up to 999 repeats to meet mixed-length production.
- Efficient unwind device : Punch cam signal plus easy thickness and unwind-angle adjustment for fast setup.
- Control-panel length setting : Directly enter feeding length on the HMI to achieve required feeding steps.
- Hollow roller design : Lightweight hollow roller with hard chrome plating, surface hardness HRC60°, wear-resistant for long life.
- Simple structure & maintenance : Compact mechanical design for easy maintenance and quick adjustments.
Description
NCF Servo Roll Feeder
High-precision servo-driven roll feeder for accurate and repeatable material feeding. Multi-stage feeding, easy thickness adjustment and compact, hollow roller design for long service life.
High Accuracy Multi-stage Feeding Compact Roller Easy Setup
A (0.2-2.2mm)
| Model | NCF-100A | NCF-200A | NCF-300A | NCF-400A | NCF-500A | NCF-600A | NCF-700A | NCF-800A | NCF-1000A | NCF-1300A | NCF-1500A | NCF-1600A |
| Material Max Width (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1300 | 1500 | 1600 |
| Material Thickness Capacity (mm) | 0.2-2.2 | |||||||||||
B(0.2-3.2mm)
| Item & Model | NCF-100B | NCF-200B | NCF-300B | NCF-400B | NCF-500B | NCF-600B | NCF-700B | NCF-800B | NCF-1000B | NCF-1300B | NCF-1500B | NCF-1600B |
| Material Max Width (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1300 | 1500 | 1600 |
| Material Thickness Capacity (mm) | 0.2-3.2 | |||||||||||
C(0.3-4.5mm),
| Item & Model |
NCF-200C
|
NCF-300C
|
NCF-400C
|
NCF-500C
|
NCF-600C
|
NCF-700C
|
NCF-800C
|
NCF-1000C
|
NCF-1300C
|
NCF-1500C
|
NCF-1600C
|
|
| Material Max Width(mm) |
200
|
300
|
400
|
500
|
600
|
700
|
800
|
1000
|
1300
|
1500
|
1600
|
|
| Material Thickness Capacity (mm) |
0.3-4.5
|
|||||||||||
D(1.0-6.0mm)
| Item & Model |
NCF-200D
|
NCF-300D
|
NCF-400D
|
NCF-500D
|
NCF-600D
|
NCF-700D
|
NCF-800D
|
NCF-1000D
|
NCF-1300D
|
NCF-1500D
|
NCF-1600D
|
|
| Material Max Width(mm) |
200
|
300
|
400
|
500
|
600
|
700
|
800
|
1000
|
1300
|
1500
|
1600
|
|
| Material Thickness Capacity (mm) |
1.0-6.0
|
|||||||||||
| Max Feed Leanth (mm) |
9999
|
|||||||||||
| Max Feed Speed (m/min)(m/min) |
20m/min
|
|||||||||||
| Realease Method (Mechincal) |
Mechanical Pneumatic
|
|||||||||||
| Servo Motor |
Yaskawa, Japan
|
|||||||||||
| PLC Low Voltage Electric Components |
Mitsubishi
|
|||||||||||
| HMI |
Schneider
|
|||||||||||
| HMI Main Page Language |
Weinview, Taiwan
|
|||||||||||
| Voltage |
Can be switched between Chines to English ( it also can be made of buyers local language )
|
|||||||||||
| Remarks: |
3 phase 380v 50 hz ( or local voltage)
|
|||||||||||
