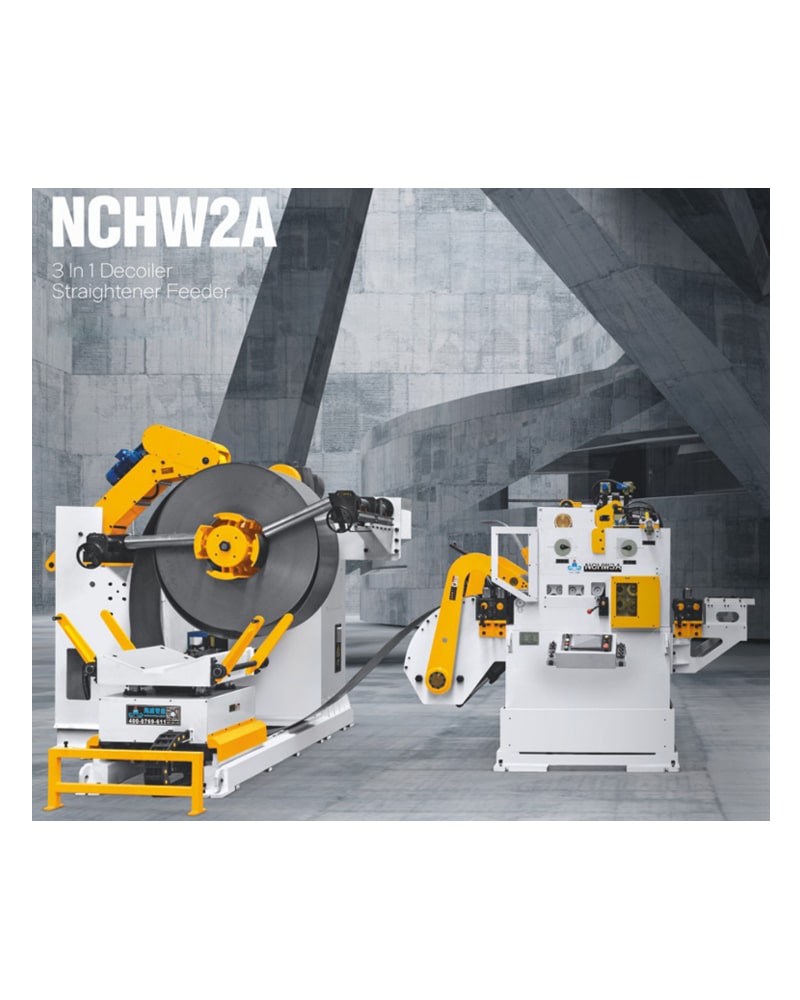

NCHW2A 3-in-1 Decoiler Straightener Feeder
Features
- Suitable for medium and high strength plates, stainless steel and other materials, with a thickness range of 0.5-4.5mm.
- The housing-type structure is specially designed for high-strength plates, and the upper and lower leveling rollers have reinforcement structures to ensure that the stress relief effect meets the standard.
- Electric adjusting straightener gap, replacing manually adjusting via turning handle wheels, making operation easier.
- The innovative mechanical structure minimizes the working space required by the whole machine.
- Full set of Siemens servo control system: high-precision feeding; humanized design and safety protection system etc., convenient for operating.
Description
NCHW2A 3-in-1 Decoiler Straightener Feeder
The NCHW2A 3-in-1 Decoiler Straightener Feeder is an advanced industrial machine designed for processing medium to high-strength plates and stainless steel materials. This integrated system combines decoiling, straightening, and feeding functions in a single unit, featuring an innovative mechanical structure that minimizes required workspace while ensuring high precision and operational safety.
With its electric adjustment system for straightening gap and a full Siemens servo control system, the NCHW2A offers superior performance for materials ranging from 0.5mm to 4.5mm in thickness, making it ideal for various industrial applications requiring precise material handling.
|

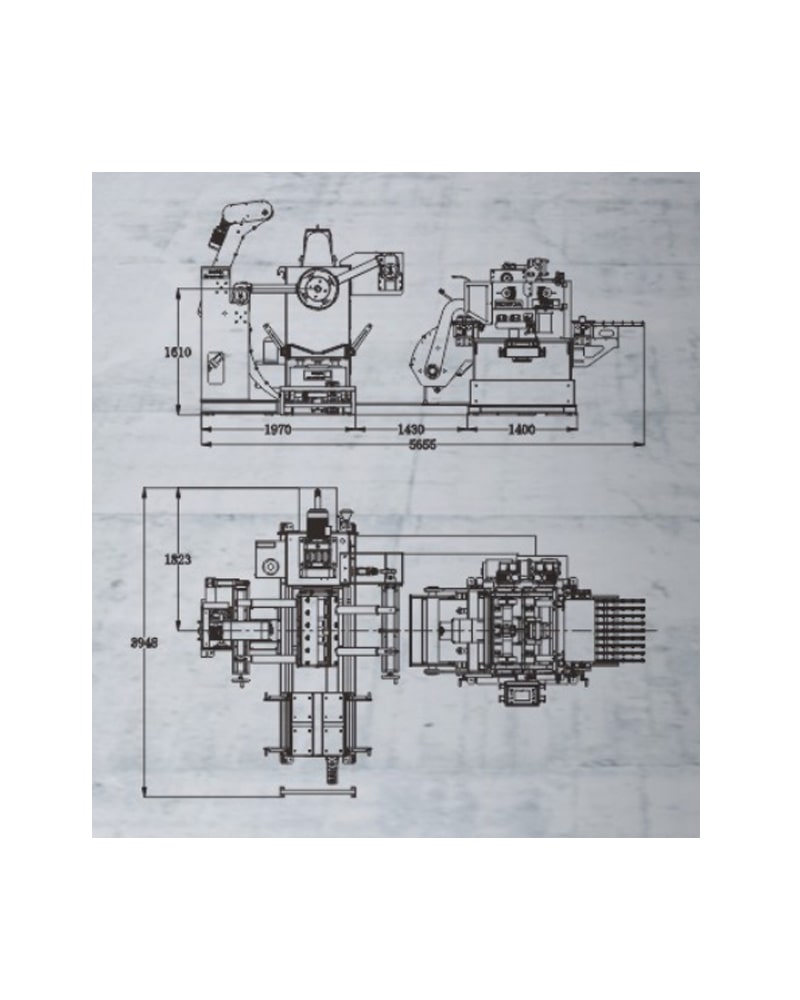

Parameter
|
NCHW2-400A
|
NCHW2-600A
|
NCHW2-800A
|
NCHW2-1000A
|
NCHW2-1300A
|
| Material Width (mm) |
70~400
|
70~600
|
70~800
|
70~1000
|
70~1300
|
| Material Thickness (mm) |
0.5~4.5
|
||||
| Coil Weight MAX (kg) |
3000
|
5000
|
7000
|
7000
|
10000
|
| Coil O.D (mm) |
1400
|
||||
| Coil I.D (mm) |
508/610
|
||||
| Max Feed Length (mm) |
0~9999.9
|
||||
| Feed Speed (m/min) |
16~24
|
||||
| Straightening Roller |
上5/下4 / Upper5/Lower4 上6/下5 / Upper6/Lower5
|
||||
| Straightening Diameter (mm) |
68
|
||||
| Feed Roller |
1
|
||||
| Feed Roller Diameter (mm) |
84
|
84
|
96
|
96/120
|
120
|
| Main Motor |
AC5.0
|
AC5.0
|
AC7.0
|
AC7.0/AC11.0
|
AC11.0
|
| Mandrel Expansion |
Hydraulic
|
||||
| Decoiler Motor (kW) |
2.2
|
2.2/3.75
|
3.75
|
3.75
|
5.5
|
| Power Supply |
380V/50HZ /3Phase380V/50HZ/As customer request
|
||||
| Air Pressure (MPa) |
0.5
|
||||
| Feeding line height adjust method |
Electric Adjustment
|
||||
|
Straightener Performance
|
|||||
|
Model & Material Thickness (mm)
|
NCHW2-400A
|
NCHW2-600A
|
NCHW2-800A
|
NCHW2-1000A
|
NCHW2-1300A
|
| 0.5~1.2 |
400
|
600
|
800
|
1000
|
1300
|
| 1.6 |
400
|
600
|
800
|
903
|
1024
|
| 2.0 |
400
|
520
|
520
|
520
|
657
|
| 2.3 |
400
|
394
|
394
|
394
|
466
|
| 2.5 |
333
|
333
|
333
|
333
|
395
|
| 2.8 |
266
|
266
|
266
|
266
|
315
|
| 3.2 |
203
|
203
|
203
|
203
|
241
|
| 4.5 |
103
|
103
|
103
|
103
|
122
|
