Pedal Shearing

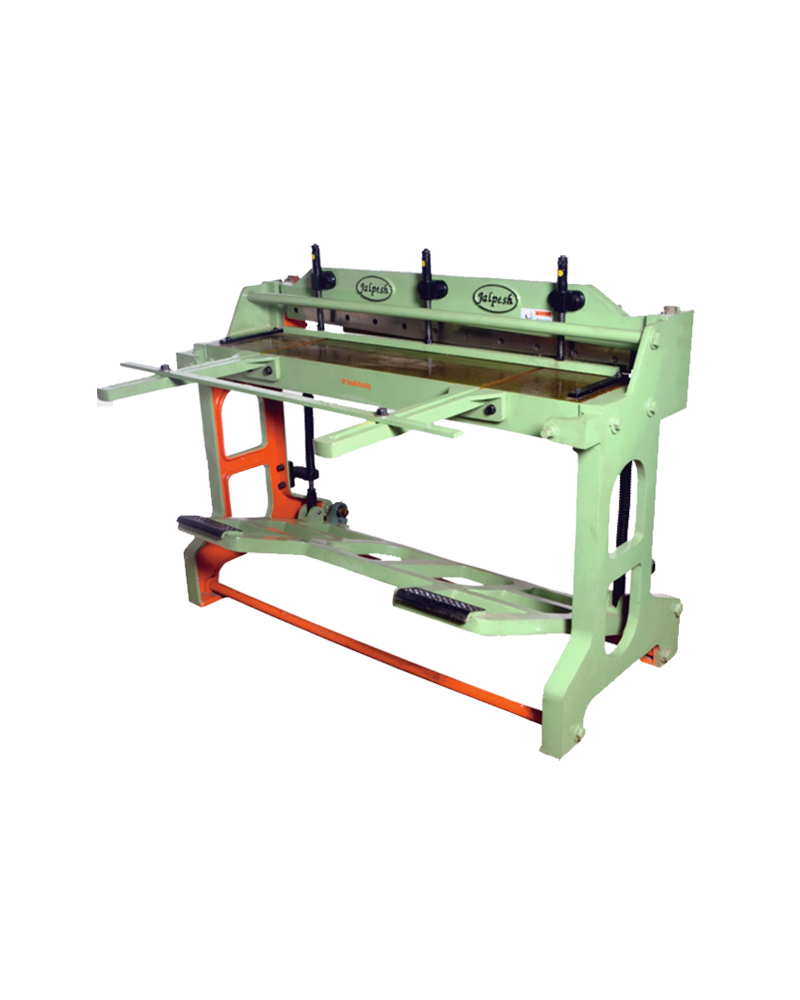

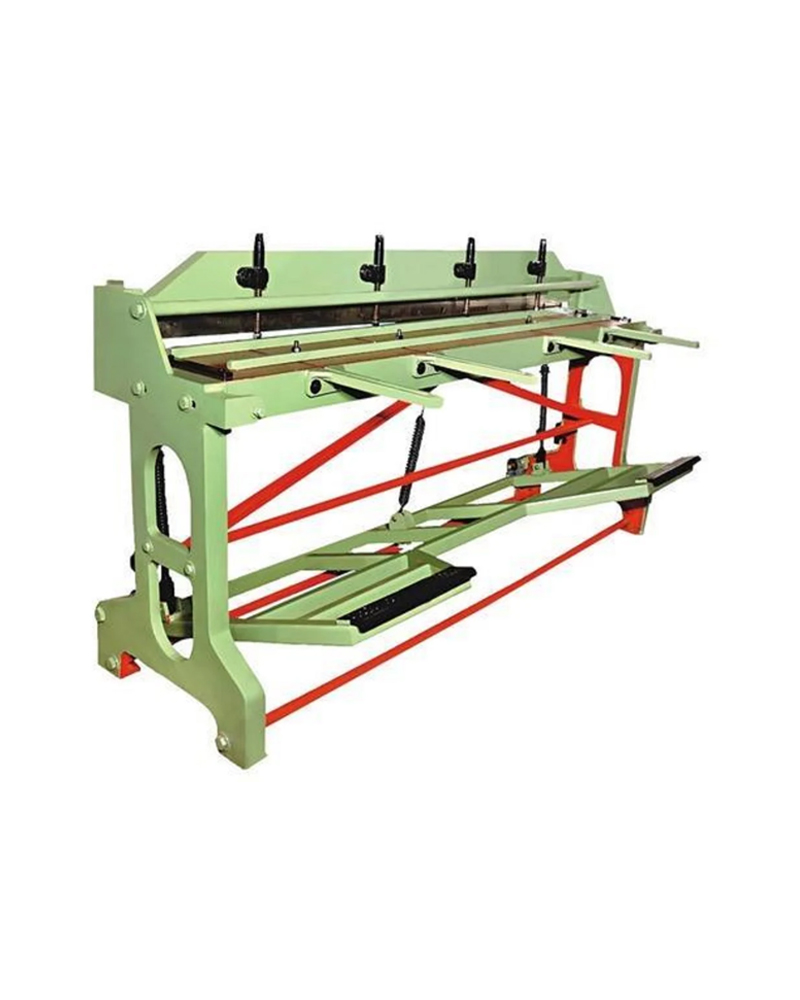

BODY TREADLE GUillOTINE SHEARING MACHINES
The Everest Cast Iron Body Treadle Guillotine shearing Machine With best Workmanship, Robust and streamline construction is developed and designed after maker’s extensive experience in manufacturing and Sales of such machines. The machine is having wide application In industries like: Tin Containers, Barrels, Drum P.P. Caps, Calendar Rims. Electrical is having With application in industries like : Fabrication, Control Panels & Boards, Brass, Aluminum, Furniture, M.5. & Steel Cutting, Block Makers and So Many other field.

SKU: NMDE-002-1-1-1-1 Categories: ,

Description

SALIENT FEATURES

  • Rigid and Streamline construction ensures vibration-free and fatigue less function of the machine. Upper Beam/Ram is moving in C. I. Guide ways with precision bearing surface and having adjustment for compensating
    wearandtear.
  • Adjustable front & back gauge with through slots which facil itates adjustment of different widths of cuts and avoids any sorts of waves and twisting of sheets whilecutting.
  • Adjustable bolts allows setting of blades to cut various thickness.
  • Machines are fitted with HCHCR quality four edge shearing blade to avail maximum use of blades.
  • The extra heavy tread le with proper weight is spring loaded and very well designed for operator’s convenience which takes minimum pressure while cutti ng. The springs fitted areof proper compression and strength.
  • All lubrication points are provide with lubrication cups at required places to ensure smooth, trouble, free and long of machine.
  • The setting bolts are provided for lower-fixed blade to adjust vertically when height of blade is reduced after resharpening.
Size of Machine Lengtd of Bed Widtd of Bed Cap tdickness M.S Size of Blade in M.M. Floor to Top of Bed Weight of Machine
305mm 12″ 407mm 16″ 203mm 8″ 0.9 mm 305x62x14 863mm 34″ 90 kg.
458mm 18″ 559mm 22″ 280mm 11″ 0.9 mm 482x62x14 889mm 35″ 210 kg.
610mm 24″ 712mm 28″ 280mm 11″ 0.9 mm 635x62x14 889mm 35″ 260 kg.
915mm 36″ 1020mm 40″ 280mm 11″ 0.9 mm 940x62x14 889mm 35″ 300 kg.
1020mm 40″ 1181mm 44″ 305mm 12″ 0.9 mm 1041x62x14 889mm 35″ 380 kg.
1270mm 50″ 1372mm 54″ 305mm 12″ 0.8 mm 1295x62x14 889mm 35″ 460 kg.
1524mm 60″ 1651mm 65″ 305mm 12″ 0.8 mm 1550x62x14 889mm 35″ 525 kg.
2058mm 81″ 2159mm 85″ 305mm 12″ 0.8 mm 2057x62x14 915mm 36″ 675 kg.

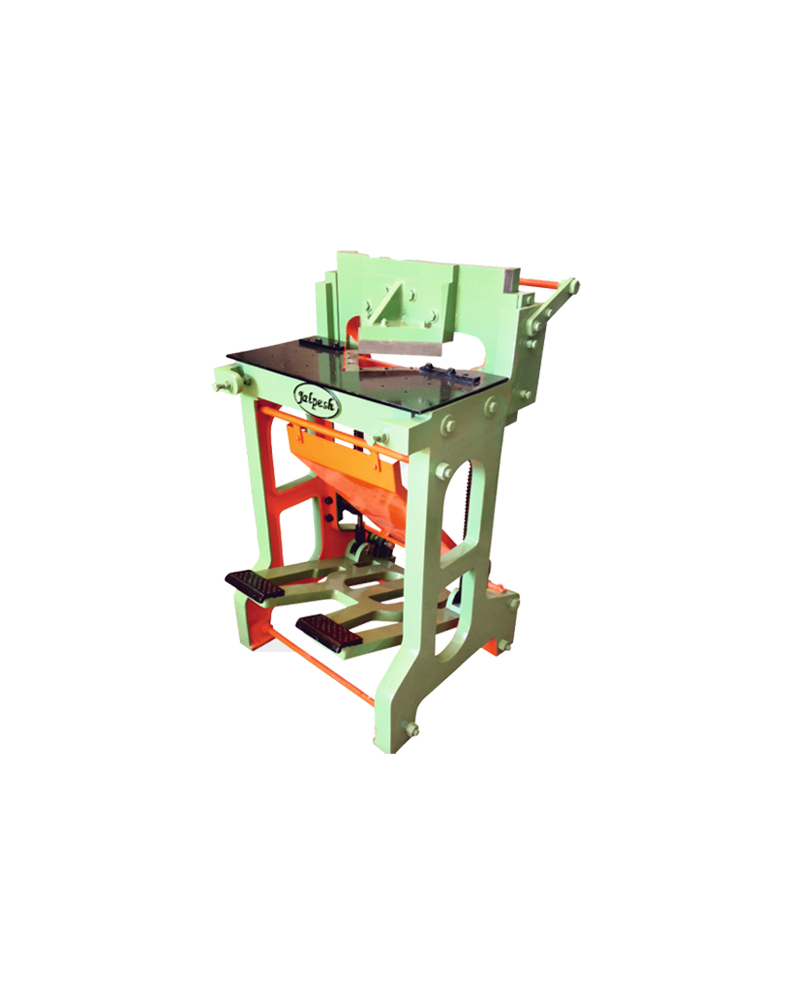

Notching Machine

Size of Machine Lengtd of Bed Widtd of Bed Cap tdickness M.S Size of Blade in M.M. Floor to Top of Bed Weight of Machine
6″ x 6″ x 9.5″ 565mm 298mm 11.6″ 1 mm 6″ x 6″ x 11″ 889mm 35″ 275 kg.
