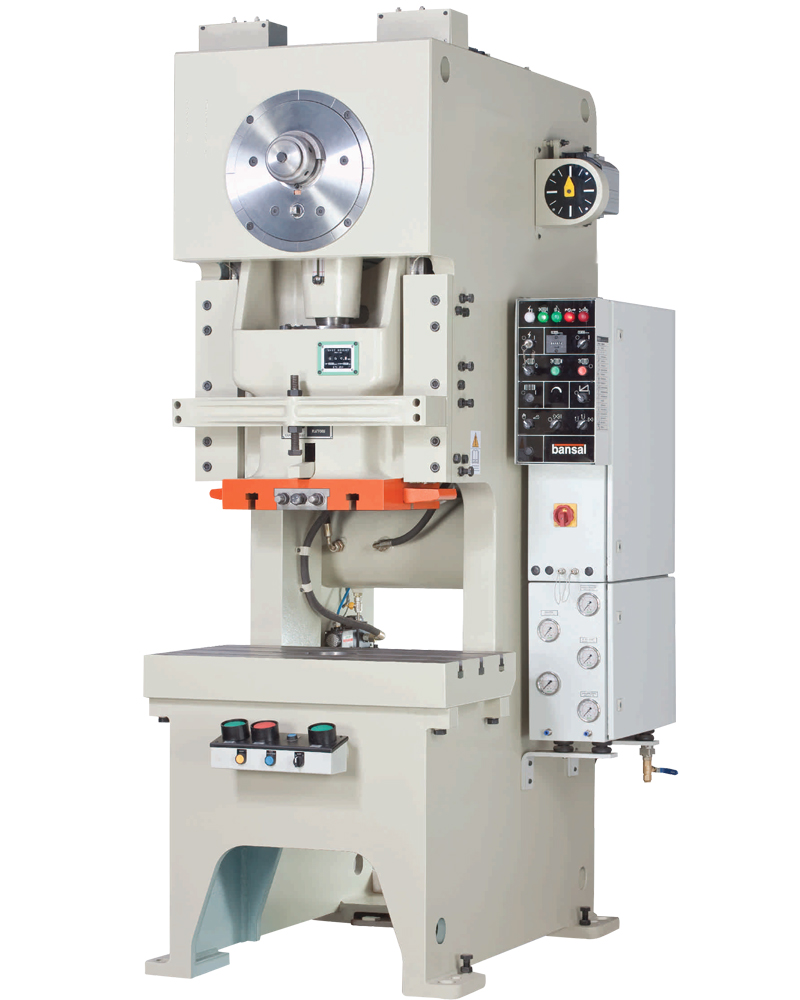

Pneumatic Cross Shaft

FEATURES

  • Rigid frame with less deflection
  • High torque transmission gears and rigid crank
  • ensure long life and accuracy
  • Gear transmission runs in oil bath
  • All functions designed user friendly and
  • electrical control system enables the
  • High torque pneumatically operated single disc
  • accessories to attach easily
  • Accuracy meets JIS Grade-I
SKU: VMPP-004-1 Categories: ,

Description

THE ULTIMATE POSSIBLE RESISTANCE TO SLIDE TIPPING & OFF CENTER LOADING

These guides are designed with extra length & surface area to provide best possible resistance to slide tipping caused by off center loading in the die and most suitable for highly precise pressing applications. This increases tool life.

STANDARD ACCESSORIES

  • Motorized Grease Lubrication
  • Counter Balancers of Slide (40 Tons & above)
  • Rotary Cam Limit Switch (Imported)
  • Anti Repeat Safety through PLC
  • Magnetic Production Counter (Imported)
  • Dual Solenoid Valve (Imported)
  • PLC Based, 24V DC Electrical Control Panel
  • PLC with Fault Finding Facility
  • Hydraulic Overload Safety (Imported)
  • Die Height Indicator (Imported)
  • Motorized Slide Adjustment (60 Tons & above)
  • Miss Feed Sockets
  • Air Outlets

OPTIONAL ACCESSORIES

  • Variable Stroke
  • Foot Switch
  • Knockout System
  • Photo Electric Safety
  • Pneumatic Die Cushion Bellow type
  • Anti Vibration Mounts
  • Variable Speed through VFD
  • Quick Die Change System
  • Automation Line & Accessories
  • Power Take off Shaft

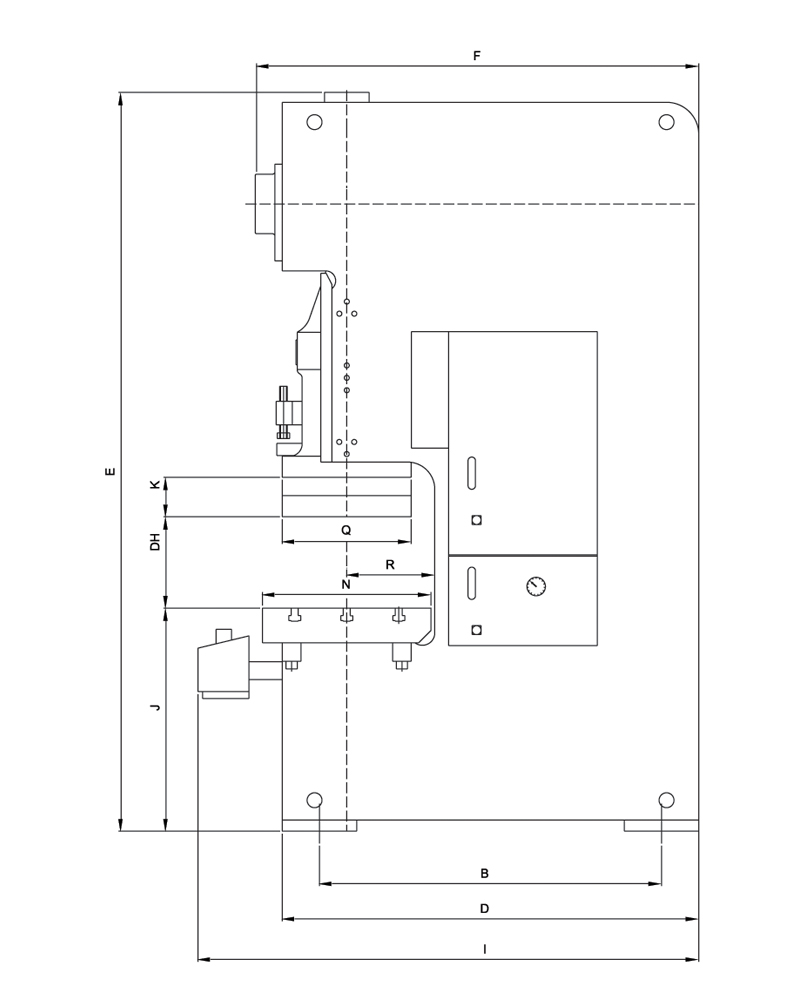

Description MODEL
NMI-35 NMI-45 NMI-60 NMI-80 NMI-110 NMI-160 NMI-200 NMI-250
Type SG HG NG SG HG NG SG HG NG SG HG SG HG SG HG SG HG SG HG
Capacity tf 35Tons 45 Tons 60 Tons 80 Tons 110 Tons 160 Tons 200 Tons 250 Tons
Stork length Fixed(K) mm 80 40 40 90 50 40 120 50 40 140 60 160 60 200 80 220 80 250 100
Variable(K) mm 8-80 – – 8-90 – – 8-100 – – 8-100 – 8-125 – 8-160 – – – – –
Speed Fixed SPM 80 100 130 70 90 130 60 90 130 60 90 50 80 40 60 35 60 30 50
Variable – 70-120 80-160 – 70-110 80-160 – 70-110 80-160 – 70-110 – 70-110 – 40-80 – 40-80 – 30-70
Rating Point mm 3.2 2.5 2.3 3.2 2.6 2.3 4.0 2.6 2.3 4.5 3.0 5.0 3.0 6.0 4.0 6.0 4.0 6.0 4.0
Bolster Area(MXN) mm 780 x 400 840 x 450 900 x 520 1050 x 600 1250 x 760> 1250 x 760 1400 x 840 1450 x 900
Bolster Thickness (S)> mm 85 110 120 130 140 165 180 180
Die Height (DH) mm 250 270 300 330 360 450 500 500
Slide Area (PXQ) mm 380 x300 430 x350 480 x400 560 x460 650 x520 720 x580 860 x680 900 x800
Slide Adjustment mm 50 60 75 75 90 100 120 120
Throat Depth (R) mm 210 235 270 310 350 390 435 465
Upright Distance (L) mm 490 530 570 600 670 770 920 940
Main Motor Fixed HPXP 3×4 3×4 3×6 5×4 5×4 5×6 7.5×4 7.5×4 7.5×6 10×4 10×4 10×4 10×4 15×4 15×4 20×4 20×4 25×4 25×4
Variable – 5×4 5×4 – 7.5×4 7.5×4 – 10×4 10×4 – 10×4 15×4 20×4 25×4 30×4
Floorto Bolster (J) mm 800 800 900 900 900 900 1000 1000
Foot Size (CXD) mm 830 x 1150 890 x 1290 950 x1400 1050 x 1480 1160 x 1680 1300 x 1985 1480 x 2140 1550 x 2390
Anchor Bolt Size (AXB) mm 730 x 950 790 x 1095 850×1150 950 x 1230 1060 x 1380 1180 x 1655 1360x 1755 1430 x 2000
Overall Space (HXIXE) mm 1000 x 1260 x 2140 1000 x 1260 x 2140 1130 x 1500 x 2585 1230 x 1700 x2785 1310 x1830 x2945 1450 x 2135 x3235 1620 x 2270 x3685 1680 x 2540 x 3775
Optional
Pneumatic Die Cushion Tonnage tf 3.5 3.5 6 6 8 10 14 14
Stroke mm 50 50 70 70 90 100 110 110
Pad Area mm 300 x 210 300 x 210 380 x 260 410×260 480 x 300 540 x340 640 x440 640 x 440
