PR Servo Electric Tapping Machine T1-T2
Standard Accessories:
- Operation via touchscreen
- Digital Drill Depth Indication
- Quick release Tool Holder
- Quick change Chuck
- Electric Motor
- 90° angle adjustment
- Mounting flange
Description

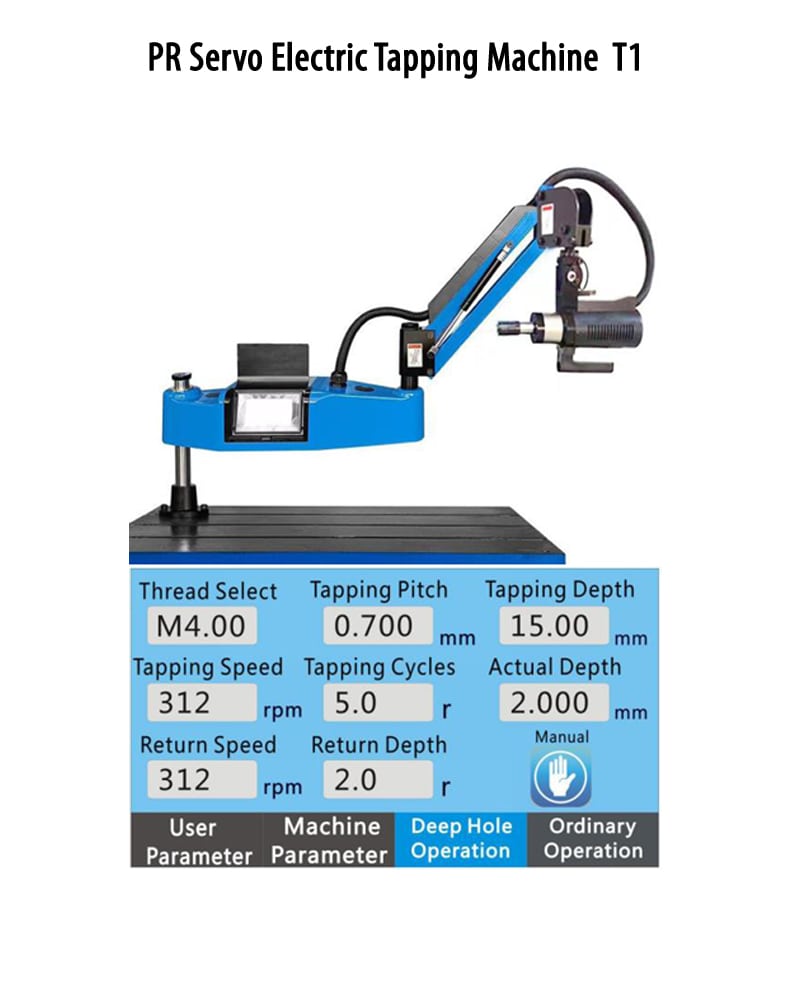

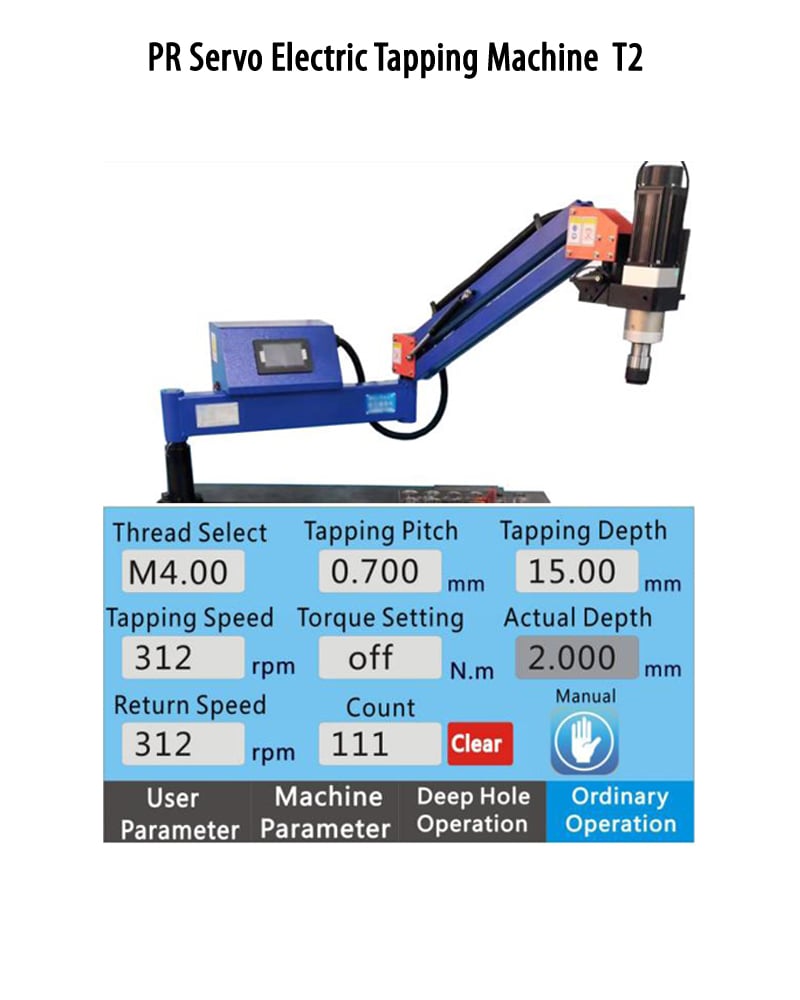

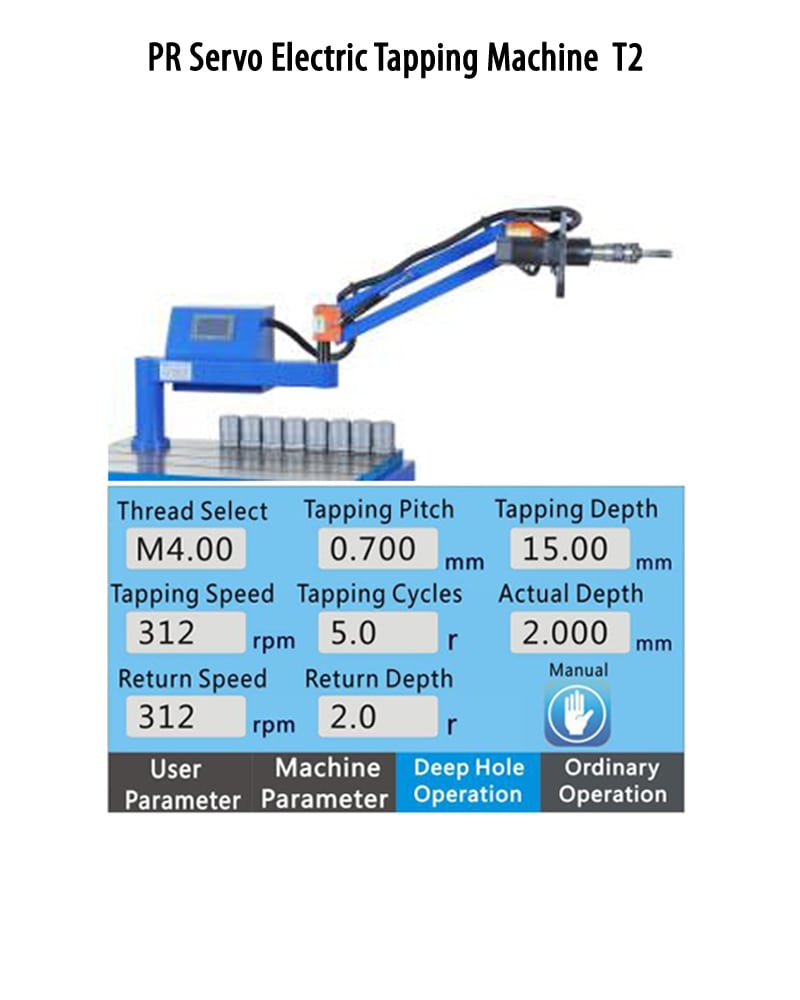

PR Servo Electric Tapping Machine T1 & T2
The PR Servo Electric Tapping Machine T1–T2 series is designed for high-precision, efficient, and versatile tapping operations.
Powered by advanced servo technology, these machines deliver consistent thread quality across different tap sizes, while maintaining durability and ease of use. They are suitable for small to large-scale industrial applications.
Main Features :
- Servo-driven system ensuring high precision and stability.
- Wide tapping range from M2 to M60 depending on the model.
- Quick change chuck system for efficient tool replacement.
- Variable tapping speeds to suit different materials and diameters.
- Compact design with large working radius for flexible operation.
- Energy-efficient with consistent motor power output.
- Lightweight construction for easy setup and portability in smaller models.
|
Table – T1 (PR-E201 to PR-E701)
|
||||||
|
Technical Data
|
PR-E201
|
PR-E301
|
PR-E401
|
PR-E501
|
PR-E601
|
PR-E701
|
| Tap holes size |
M3–M12
|
M3–M16
|
M3–M20
|
M6–M24
|
M6–M30
|
M6–M36
|
| Speed max per min |
714
|
312
|
416
|
200
|
156
|
100
|
| Max. working radius (mm) |
1100
|
1100
|
1100
|
1200
|
1200
|
1200
|
| Quick change chuck No. |
6
|
8
|
9
|
8
|
9
|
11
|
| Motor power |
600W
|
600W
|
1200W
|
1200W
|
1200W
|
1200W
|
| Reducer No. |
7
|
16
|
12
|
25
|
32
|
50
|
| Voltage |
220V
|
220V
|
220V
|
220V
|
220V
|
220V
|
| Weight approx. |
27KGS
|
27KGS
|
32KGS
|
32KGS
|
44KGS
|
44KGS
|
|
Table – T2 (PR-E201S to PR-E701S)
|
||||||
|
Technical Data
|
PR-E201S
|
PR-E301S
|
PR-E401S
|
PR-E501S
|
PR-E601S
|
PR-E701S
|
| Tap holes size |
M2–M6
|
M2–M8
|
M2–M10
|
M3–M12
|
M3–M16
|
M3–M20
|
| Speed max per min |
5000
|
1666
|
1000
|
714
|
312
|
200
|
| Max. working radius (mm) |
1100
|
1100
|
1100
|
1200
|
1200
|
1200
|
| Quick change chuck No. |
5
|
6
|
7
|
7
|
9
|
9
|
| Motor power |
600W
|
600W
|
600W
|
600W
|
600W
|
600W
|
| Reducer No. |
1
|
3
|
5
|
7
|
16
|
25
|
| Voltage |
220V
|
220V
|
220V
|
220V
|
220V
|
220V
|
| Weight approx. |
27KGS
|
27KGS
|
27KGS
|
27KGS
|
27KGS
|
27KGS
|
|
Table – T2 (PR-E201S to PR-E701S)
|
||||||
|
Technical Data
|
PR-E201S
|
PR-E301S
|
PR-E401S
|
PR-E501S
|
PR-E601S
|
PR-E701S
|
| Tap holes size |
M3–M12
|
M3–M16
|
M3–M20
|
M6–M24
|
M6–M30
|
M6–M36
|
| Speed max per min |
1000
|
714
|
416
|
200
|
142
|
100
|
| Max. working radius (mm) |
1100
|
1100
|
1100
|
1200
|
1200
|
1200
|
| Quick change chuck No. |
7
|
9
|
9
|
8
|
8
|
8
|
| Motor power |
1200W
|
1200W
|
1200W
|
1200W
|
1200W
|
1200W
|
| Reducer No. |
5
|
7
|
12
|
25
|
35
|
50
|
| Voltage |
220V
|
220V
|
220V
|
220V
|
220V
|
220V
|
| Weight approx. |
27KGS
|
27KGS
|
32KGS
|
32KGS
|
44KGS
|
44KGS
|
|
Table – T2 Extra Heavy Duty (PR-E201B to PR-E601B)
|
||||||
|
Technical Data
|
PR-E201B
|
PR-E301B
|
PR-E401B
|
PR-E501B
|
PR-E601B
|
|
| Tap holes size |
M6–M36
|
M12–M40
|
M12–M48
|
M20–M52
|
M20–M60
|
|
| Speed max per min |
85
|
71
|
30
|
20
|
15.6
|
|
| Max. working radius (mm) |
1350
|
1350
|
1350
|
1350
|
1350
|
|
| Quick change chuck No. |
8
|
8
|
8
|
8
|
8
|
|
| Motor power |
2400W
|
1200W
|
2400W
|
2400W
|
2400W
|
|
| Reducer No. |
35
|
70
|
100
|
125
|
160
|
|
| Voltage |
220V
|
220V
|
220V
|
220V
|
220V
|
|
