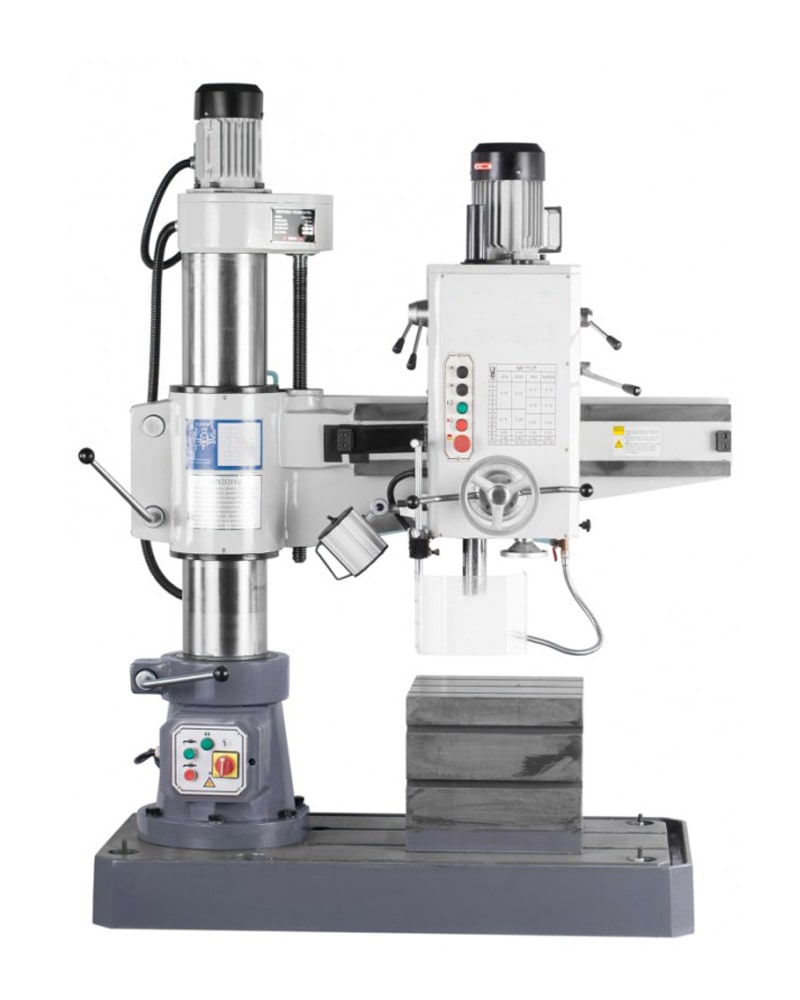

Radial Drill Machine – ZQ3040X10/1
Features :
- Safe and reliable feed safety machine, all parts are easy to operate and change.

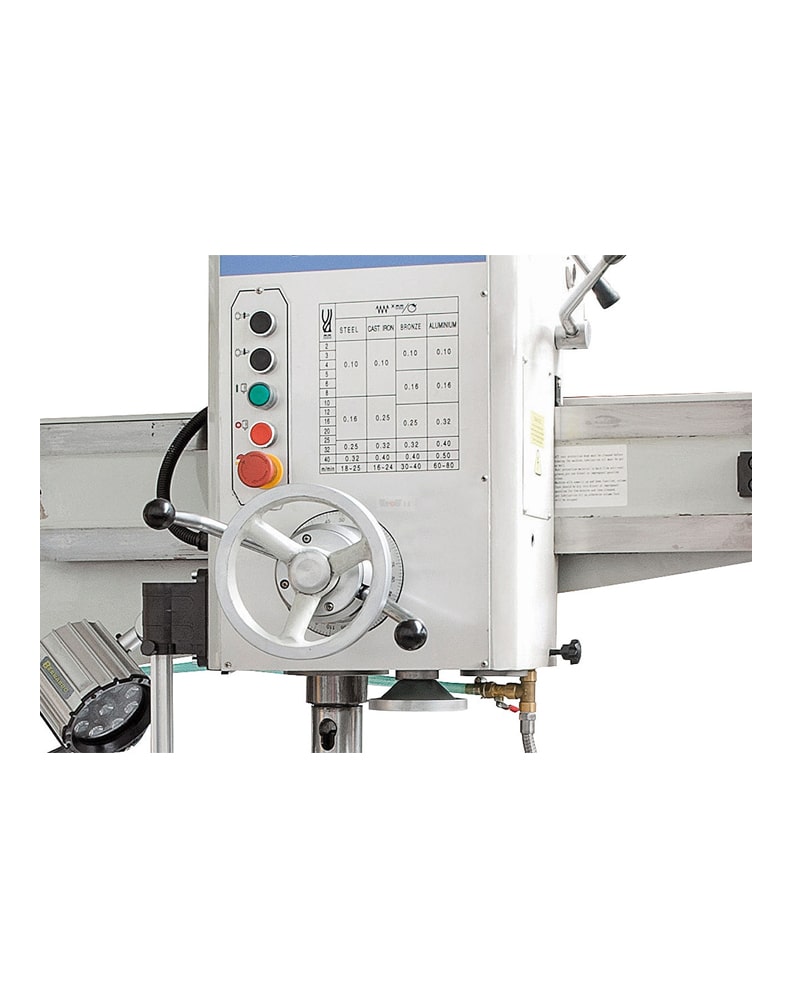

- All controls are centralized on the head stock, ensuring easy operation and change.
- Main parts are made by a machine center which imports from KIA, providing high precision and efficiency, ensuring reliability and high quality.
- Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
- Spindle parts are made by a special high-quality steel heat treatment to be made by first-class equipment, ensuring high strength and durability.
- Main gears are machined by gear grinding, ensuring high precision and low noise.
- The machine has a small appearance and many functions, making it widely used for drilling, counter boring, tapping, etc.
Description
Radial Drill Machine – ZQ3040X10/1
The ZQ3040X10/1 is a high-quality radial drilling machine designed for precision and efficiency. It is widely used for drilling, counter boring, and tapping operations, thanks to its robust construction and centralized controls for easy operation.
|
Model
|
Z3032x8/1
|
Z3040x8/1
|
ZQ3040X10/1
|
| Max. Drilling capacity (mm) |
32
|
40
|
|
| Distance spindle axis to column generating line (mm) |
320-820
|
320-1020
|
|
| Diameter of column (mm) |
200
|
200
|
|
| Spindle taper |
MT4
|
MT4
|
|
| Spindle travel (mm) |
240
|
240
|
|
| Spindle speeds range (r/min) |
75-1220
|
75-1220
|
|
| Spindle speeds series |
6
|
6
|
|
| Range of Spindle feeds (r/min) |
0.1-0.25
|
0.1-0.25
|
|
| MSpindle Spindle feeds |
3
|
3
|
|
| Max. Distance spindle nose to working surface of base (mm) |
320-900
|
320-900
|
|

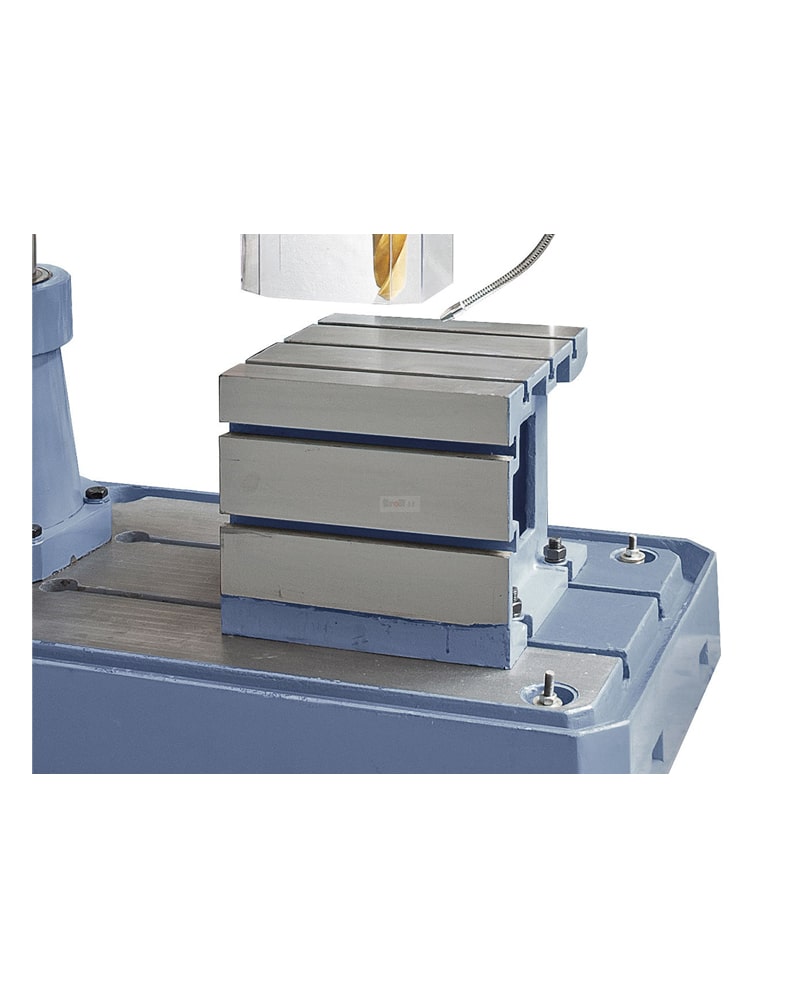

| Dimension of worktable (mm) |
400x400x350
|
400x400x350
|
|
| Dimension of base (mm) |
1370x700x160
|
1370x700x160
|
|
| Overall Size (mm) |
1407x720x1885
|
1407x720x1885
|
|
| Power of Main motor (kW) |
1.5
|
1.5
|
|
| G.W/N.W (kg) |
1425/1200
|
1425/1230
|
|
| Packing dimension (cm) |
155x77x210
|
187x77x210
|
|
