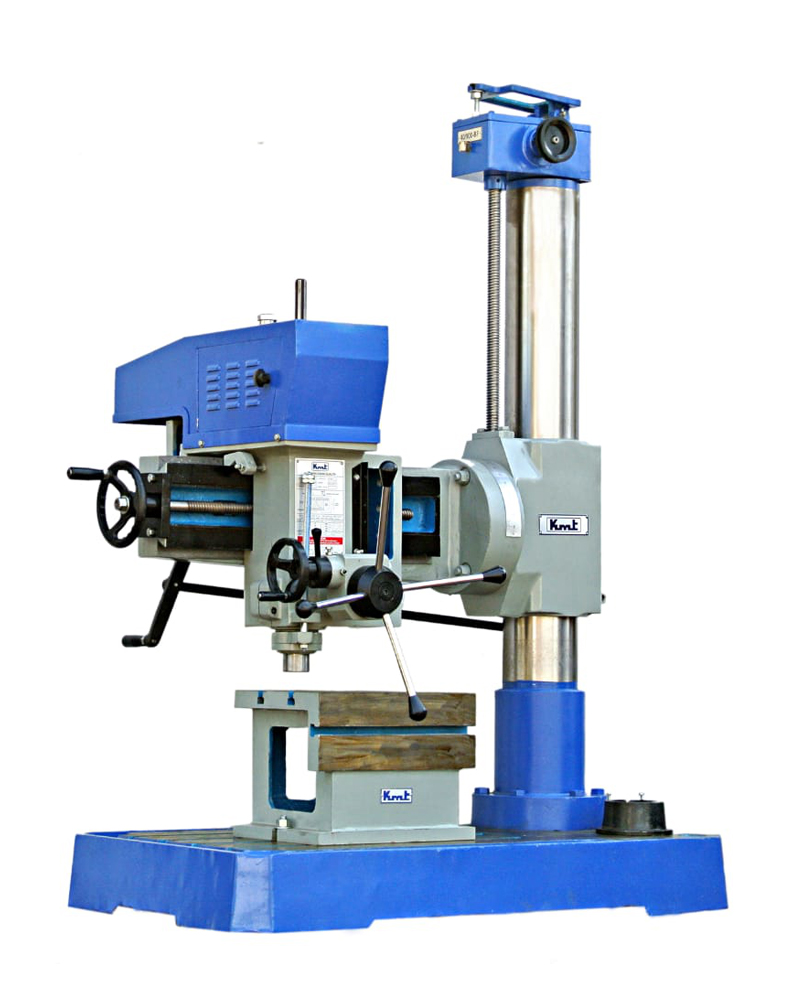

Radial Drilling Machine

Salient Features :

  • Durable and accurate design.
  • Spindle run-out is checked for accuracy.
  • Main spindle and pinion are made from EN steel.
  • All moving parts are fine-finished with grinding to close tolerance.
  • Main spindle NTN Japan-made bearings with grease bath for permanent oiling.
  • Main gear and pulley are perfectly balanced.
  • All gears are made from FGI casting and have a boring drive.
  • Accessories are designed for a longer life and to prevent corrosion.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2 Categories: , ,

Description

A precision radial drilling machine designed for drilling, boring, and tapping operations. The machine is available in two models, 25/650 and 40/900, offering different capacities to suit a variety of industrial needs. Its robust construction ensures stability and accuracy for heavy-duty metalworking tasks.

Specification
Model 25/650
Model 40/900
Machine Capacity
Drilling (M.S.)
25
35
Drilling (C.I.)
32
40
Boring
40
50
Tapping (M.S.)
15
18
Tapping (C.I.)
20
20
Drilling Head
Spindle Nose
MT-3
MT-4
Spindle Nose Outside Diameter
40
54
Spindle Sleeve Diameter
70
78
Travel of Spindle
190
220
No. of Spindle Speed Min./Max.
8 STEP PULLY, 130-2600
8 STEP PULLY, 70-2000
Number of Power Feeds
—
Range of Power Feeds
Manual
Power
Drilling Head Motor
1 HP, 1440 RPM
1.5 HP, 1440 RPM
Elevating Motor for Arm
0.5 HP, 1440 RPM
0.5 HP, 1440 RPM
Working Range
Column Diameter
130
165
Dist. from Spindle to Base Min./Max.
150 x 850
300 x 910
Dist. from Column to Center Min./Max.
380 x 650
350 x 900
Drilling Head Traverse
300
450
Drilling Radius
715
980
Traverse of Arm
700
720
Base Plate
Height of Base Plate
125
180
Working Surface
500 x 710
590 x 800
Number of T Slots
3
4
Widtd of Cast Side
15
15
Overall Dimensions (L x W x H)
1100 x 800 x 1600
1300 x 900 x 1800
Weight (Kgs.)
Approximate
500 kg.
800 kg.
