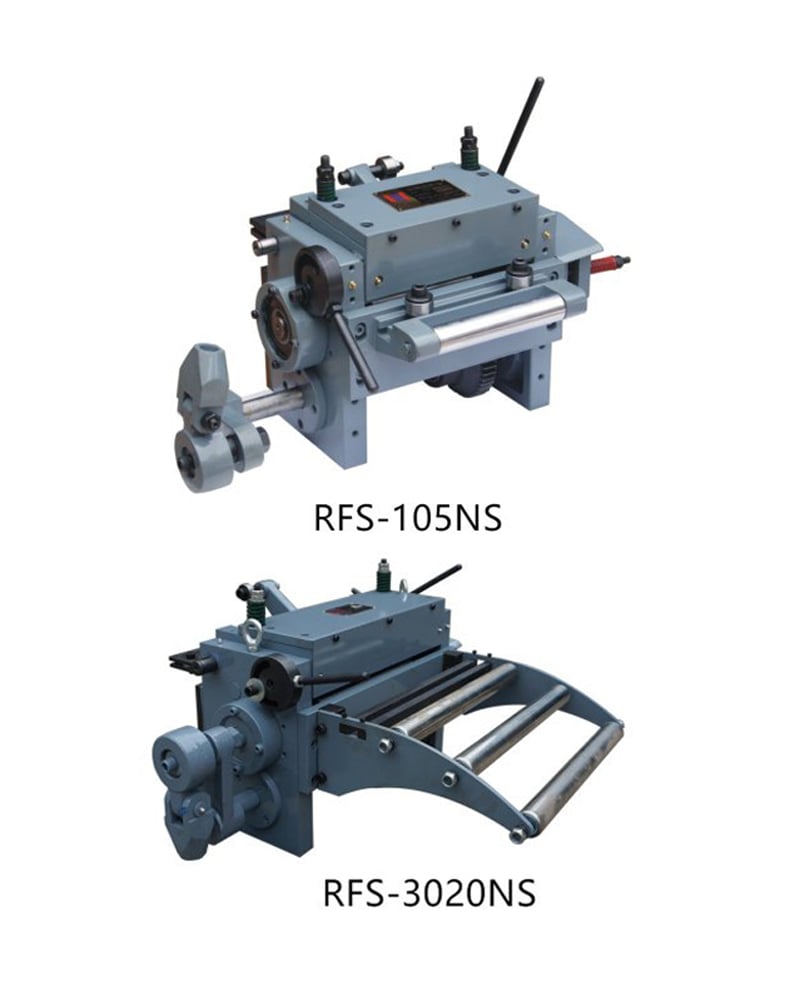

RFS High Speed Roller Feeder
Features :
- Productivity: Multiple continuous processing.
- High Speed: Up to 600 times per minute.
- Feeding Accuracy: Varies according to the number of revolutions and the length of the feed. The general accuracy is ±0.05mm, and it can achieve an accuracy of ±0.01mm.
- Reverse Device: The structure is the same as the one-way, and the lower wheel can be controlled accurately. Long-time use will not cause the lower wheel to reverse slightly, ensuring stability and precision. It prevents the rear wheel from reversing, which could affect feed length accuracy caused by residual oil splashed during stamping. The speed can reach 30 m/min, generally 20 m/min, improving efficiency by 50%.
Description
RFS High Speed Roller Feeder
The RFS High Speed Roller Feeder is designed for multiple continuous processing with high efficiency.
It operates at speeds up to 600 times per minute. The feeding accuracy varies according to the number of revolutions and the feed length, with a general accuracy of ±0.05mm and a high-precision capability of ±0.01mm.
The reverse device ensures that the lower wheel operates smoothly without reverse movement, improving stability and precision, and enhancing efficiency by up to 50%.
|
Model
|
Roll Width
|
Feed Length
|
Coil Thickness
|
Sheet Line Height
|
Capacity of Press
|
Dimentions (mm)
|
Weight
|
|||||||
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
($)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
(kg)
|
|
| RFS-105NS |
100
|
50
|
0~1.6
|
55~100
|
5~20
|
537
|
247
|
250
|
292
|
200
|
95
|
295
|
120
|
64
|
| RFS-205NS |
200
|
50
|
0~1.6
|
55~100
|
20
|
637
|
347
|
270
|
342
|
220
|
125
|
345
|
120
|
87
|
| RFS-305NS |
300
|
50
|
0~1.6
|
55~100
|
40
|
737
|
447
|
270
|
392
|
220
|
125
|
345
|
120
|
103
|
| RFS-405NS |
400
|
50
|
0~1.6
|
55~100
|
60
|
837
|
547
|
270
|
442
|
220
|
125
|
345
|
120
|
121
|
| RFS-138NS |
130
|
80
|
0~1.6
|
60~120
|
10~60
|
535
|
275
|
310
|
276
|
200
|
95
|
295
|
185
|
76
|
| RFS-1310NS |
130
|
100
|
0~3.5
|
100~190
|
40~60
|
618
|
308
|
410
|
249
|
272
|
380
|
632
|
241
|
142
|
| RFS-1510NS |
150
|
100
|
0~3.5
|
100~190
|
40~60
|
638
|
328
|
410
|
249
|
272
|
380
|
632
|
241
|
142
|
| RFS-2010NS |
200
|
100
|
0~3.5
|
100~190
|
40~80
|
688
|
378
|
410
|
384
|
272
|
380
|
632
|
241
|
155
|
| RFS-3010NS |
300
|
100
|
0~3.5
|
100~190
|
60~160
|
788
|
478
|
410
|
434
|
272
|
380
|
632
|
241
|
182
|
