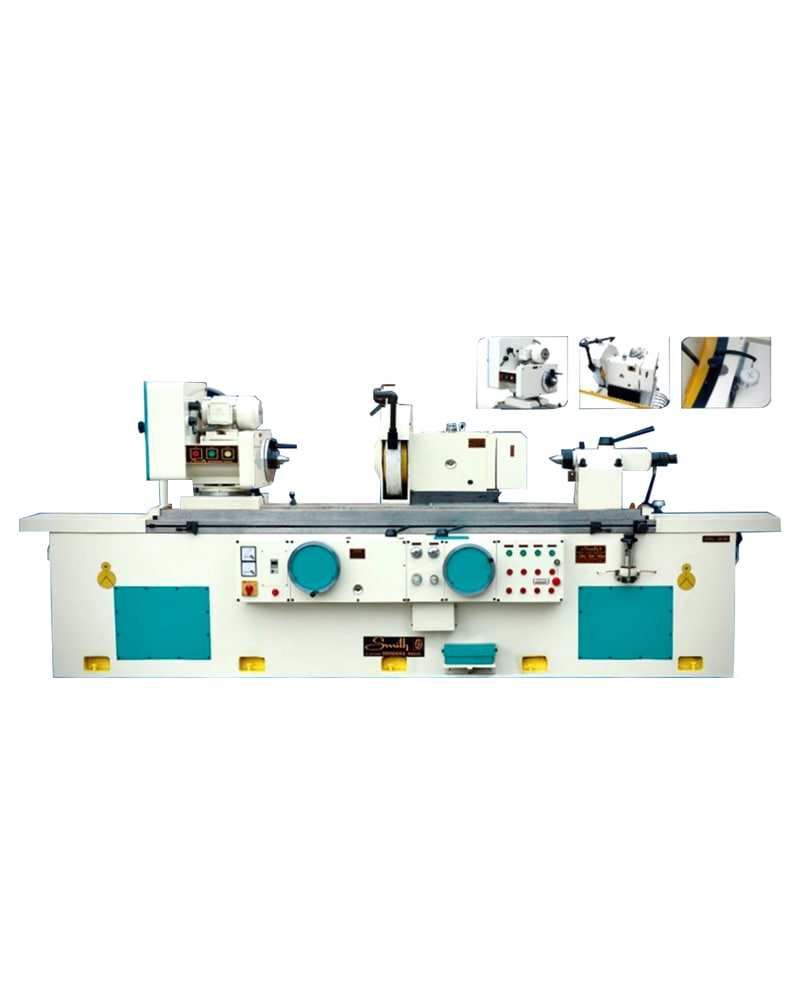

SGI 1500MM Precision Universal Cylindrical Grinding Machine

Features:

  • Rigidly constructed graded grey casting with extra heavy ribs.
  • Tool room and mass production ready.
  • Rapid approach on Z and X axis.
  • Variable speeds of work head.
  • Antifriction self-lubrication Turcite coating on bed ways.
  • Tapered angle table for best gripping head stock and tail stock.
  • Nickel alloy steel hardened & ground spindles and shafts.
  • High precision class bearings, bushes & spindle cartridges.
  • Precision class hardened & ground ball screw.
  • Preloaded antifriction LM guide ways / roller guide ways.
  • Power-operated tail stock for hydraulic machines.
  • PLC system with fiber-optic cables for advanced control.
  • Latest CNC system from Fanuc/Siemens/Mitsubishi (as required).
  • Hydraulic power packs Yuken/Rexroth.
  • Energy-efficient motors & electrical switchgear.
  • Centralized automatic lubrication system.
  • Surface finish up to 2 microns (improved RA values possible).
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1 Categories: ,

Description

SGI 1500MM Precision Universal Cylindrical Grinding Machine

The SGI 1500MM Precision Universal Cylindrical Grinding Machine is a heavy-duty grinding solution designed for high precision, durability, and efficiency. With advanced hydraulic/servo controls, variable work head speeds, and robust construction, it is ideal for tool rooms, mass production, and customized grinding applications.

Description
Specifications
Table Swivel
6+3
Center Height
250
Swing over Table
490
Work Head
Speed
Variable with AC Drive
Morse Taper
MT 5
Swivel
45 + 45 degree
Spindle Bore
18 mm
Table
Stepless
HYDRAULIC / SERVO
Wheel Head
Rapid Approach
50 mm
Wheel with Hand Wheel
250 mm
Increment with Handwheel
0.005 mm
Swivel
45 + 45 degree
Standard Size of Wheel
OD 500 × ID 254 mm × Width 50 mm
Power
Work Head
1.5 HP Geared Motor
Wheel Head
5 HP
Table Feed
2 HP Induction or 1.5 KW Servo
Cross Feed
1.5 KW Servo (for servo models)
Coolant
0.5 HP
Internal Grinding Attachment
1.5 HP
Lubrication Pump
90 Watts
