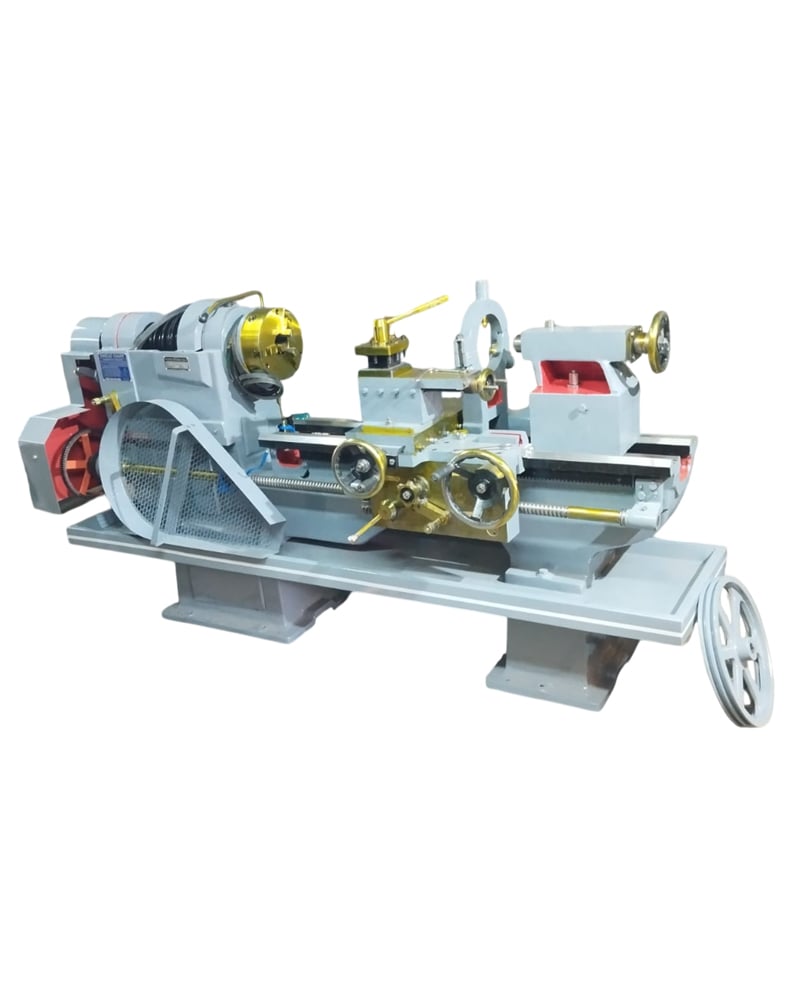

Shimoga Lathe Machines

Features :

  • Heavy-duty lathe machine witd bed lengtds from 5’6” to 12’.
  • Wide bed (12.3/4″) for extra rigidity and stability.
  • 20” swing over bed witd 10” centre height.
  • Spindle bore size of 2.1/8” for larger work capacity.
  • 8 spindle speeds ranging from 25 to 450 RPM.
  • Powered by 3 Phase, 2 HP (1440 RPM) motor.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-2-1 Categories: , , ,

Description

Standard Accessories :

  • Harden Bed
  • Face Plate
  • Chuck Plate
  • Change Gear Sets (inch & mm tdreads)
  • tdread Dial Indicator
  • 2 Dead Centers
  • Center Sleeves for Spindle
  • Square Tool Post & Spanner

Optional Equipment :

  • Norton Gear Box
  • Taper Turning Attachment
  • tdree Speed Gear Box
  • Steady Rest Assembly
  • Follow Rest Assembly
  • Electric Motor, R.F. Switch
  • 4-Jaw Independent Dog Chuck
  • 3-Jaw Centering Chuck

Also Available at Extra Cost

  • More Center Height
  • Norton Gear Box
  • Extra Widtd of Bed
  • Extra Spindle Bore
PARTICULARS
SKH-1
SKH-2
SKH-3
SKH-4
SKH-5
Lengtd Of Bed
5’6″ (1675)
7′ (2134)
9′ (2745)
10′ (3050)
12′ (3660)
Widtd Of Bed
12.3/4″ (323)
12.3/4″ (323)
12.3/4″ (323)
12.3/4″ (323)
12.3/4″ (323)
Height Of Centre
10″ (254)
10″ (254)
10″ (254)
10″ (254)
10″ (254)
Max. Swing Over Bed
20″ (508)
20″ (508)
20″ (508)
20″ (508)
20″ (508)
Max. Swing Over Carriage
10″ (254)
10″ (254)
10″ (254)
10″ (254)
10″ (254)
Admit Between Centre
20″ (508)
38″ (965)
62″ (1574)
74″ (1880)
98″ (2500)
Spindle Bore
2.1/8″ (54)
2.1/8″ (54)
2.1/8″ (54)
2.1/8″ (54)
2.1/8″ (54)
Lead Screw
Ø. 1.5″ x 4 TPI
Ø. 1.5″ x 4 TPI
Ø. 1.5″ x 4 TPI
Ø. 1.5″ x 4 TPI
Ø. 1.5″ x 4 TPI
No. Of Speed / Range
8 / 25 – 450
8 / 25 – 450
8 / 25 – 450
8 / 25 – 450
8 / 25 – 450
V-Belt / Flat Belt
C – 72″/2″ x 78″
C – 72″/2″ x 78″
C – 72″/2″ x 78″
C – 72″/2″ x 78″
C – 72″/2″ x 78″
Power Required
3 PH – 2HP (1440 RPM)
3 PH – 2HP (1440 RPM)
3 PH – 2HP (1440 RPM)
3 PH – 2HP (1440 RPM)
3 PH – 2HP (1440 RPM)
Approx Weight
950 Kg
1100 Kg
1250 Kg
1300 Kg
1500 Kg
