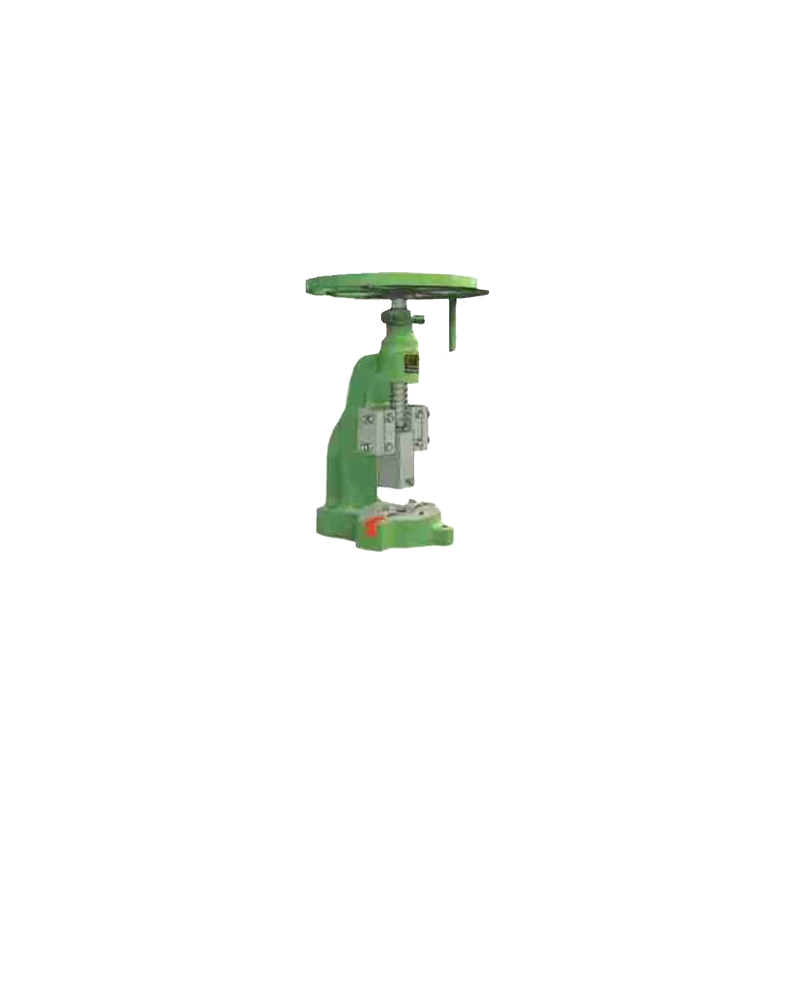

Single Body Fly Press Machine
Features :
- Robust Single Body Construction: Durable cast iron frame ensures strength and longevity.
- Versatile Stroke & Screw Design: Varies across models to accommodate different pressing forces.
- Compact Design: Space-efficient for small workshops and low-footprint operations.
- High Efficiency: From entry-level BFP-0 to heavy-duty BFP-6, tailored to specific needs.
- Precision Bed & Ram Construction: Designed for accuracy in manual operations.
- Low Maintenance: Simple mechanical setup with minimal upkeep.
Description
Single Body Fly Press – Models BFP-0 to BFP-6
The Single Body Fly Press range, covering models BFP-0 through BFP-6, is engineered for a broad spectrum of manual pressing applications, offering high precision, control, and consistency. Designed for ease of use and dependability, these fly presses are ideal for small-scale and repetitive tasks such as punching, pressing, and embossing.
These machines feature a compact yet sturdy cast body, making them suitable for both industrial and workshop environments. With increasing size and pressing capacity from model BFP-0 to BFP-6, users can select the ideal machine based on their load requirements and space constraints.
| MODEL | BFP-0 | BFP-1 | BFP-2 | BFP-3 | BFP-4 | BFP-5 | BFP-6 |
| Centre to back (mm) | 76 | 89 | 95 | 114 | 121 | 197 | 229 |
| Base to Guide (mm) | 114 | 127 | 146 | 171 | 184 | 127 | 152 |
| Diameter of Screw (mm) | 38 | 42 | 42 | 48 | 48 | 48 | 58 |
| Hole in Bed Witdout Ring (mm) | 44 | 51 | 64 | 76 | 89 | 102 | 114 |
| Hole in Bed Witd Ring (mm) | – | – | – | 38 | 44 | 51 | 57 |
| Stroke (mm) | 82 | 102 | 114 | 152 | 133 | 152 | 178 |
| Height of tde Body (mm) | 406 | 502 | 546 | 610 | 720 | 850 | 990 |
| Size of tde Bed, Left to Right (mm) | 98 | 120 | 139 | 171 | 210 | 255 | 310 |
| Size of Bed, Front to Back (mm) | 146 | 165 | 190 | 228 | 265 | 312 | 345 |
| Hole in Ram (Dia mm) | 19 | 19 | 19 | 25.4 | 25.4 | 25.4 | 25.4 |
| Hole in Ram (Deep mm) | 38 | 38 | 38 | 38 | 38 | 38 | 51 |
| Lengtd of Screw (mm) | 305 | 419 | 419 | 469 | 570 | 660 | 780 |
| Diameter of Flywheel (mm) | – | 406 | 457 | 534 | 635 | 770 | 920 |
