Surface Grinders
Surface Grinder
Features:
- Large table size for heavy-duty grinding
- Higher motor capacity for industrial use
- Excellent accuracy for precision machining
Description
Surface Grinders
Surface Grinders are designed for precision, durability, and smooth performance. These machines are ideal for achieving fine surface finishes in tool rooms and production units. With different table sizes and grinding wheel options, they cater to various industrial needs.
Surface Grinder (Size 175 x 350 mm)
Features:
- Compact design with high precision
- Efficient for small-scale grinding tasks
- Durable construction with smooth operation
Surface Grinder (Size 225 x 350 mm)
Features:
- Medium size grinder for versatile applications
- Stable structure with precision grinding
- Suitable for tool rooms and workshops
Surface Grinder (Size 225 x 450 mm)
Features:
- Extended table size for larger workpieces

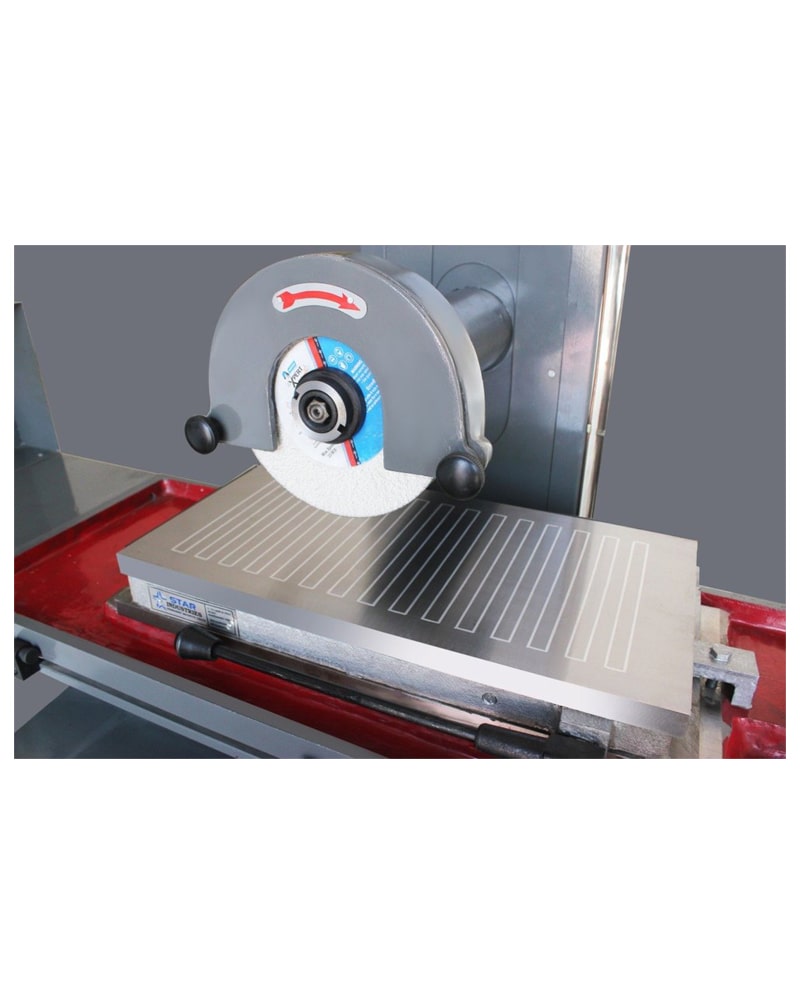

- Strong magnetic chuck for firm grip
- High precision grinding with robust performance
|
Surface Grinder (Size 175 x 350 mm)
|
|
|
Specification
|
Details
|
| Working Surface of Table |
175 × 350 mm
|
| Maximum Height (Table to Grinding Wheel) |
275 mm
|
| Vertical Feed Graduation |
0.01 mm
|
| Cross Feed Graduation |
0.05 mm
|
| Spindle Speed |
2800 rpm
|
| Size of Grinding Wheel |
175 × 13 × 31.75 mm
|
| Magnetic Chuck |
150 × 300 mm
|
| Electric Motor (Recommended) |
0.5 kW, 2800 rpm
|
| Diamond Dresser |
0.5 Carat
|
| Wheel Balancing Stand |
One
|
| Net Weight (Approx) |
600 – 700 Kg
|
|
Surface Grinder (Size 225 x 350 mm)
|
|
|
Specification
|
Details
|
| Working Surface of Table |
225 × 350 mm
|
| Maximum Height (Table to Grinding Wheel) |
275 mm
|
| Vertical Feed Graduation |
0.01 mm
|
| Cross Feed Graduation |
0.05 mm
|
| Spindle Speed |
2800 rpm
|
| Size of Grinding Wheel |
200 × 13 × 31.75 mm
|
| Magnetic Chuck |
200 × 300 mm
|
| Electric Motor (Recommended) |
0.75 kW, 2800 rpm
|
| Diamond Dresser |
0.5 Carat
|
| Wheel Balancing Stand |
One
|
| Net Weight (Approx) |
700 – 800 Kg
|
|
Surface Grinder (Size 225 x 450 mm)
|
|
|
Specification
|
Details
|
| Working Surface of Table |
225 × 450 mm
|
| Maximum Height (Table to Grinding Wheel) |
275 mm
|
| Vertical Feed Graduation |
0.01 mm
|
| Cross Feed Graduation |
0.05 mm
|
| Spindle Speed |
2800 rpm
|
| Size of Grinding Wheel |
200 × 13 × 31.75 mm
|
| Magnetic Chuck |
200 × 450 mm
|
| Electric Motor (Recommended) |
0.75 kW, 2800 rpm
|
| Diamond Dresser |
0.5 Carat
|
| Wheel Balancing Stand |
One
|
| Net Weight (Approx) |
800 – 900 Kg
|
|
Surface Grinder (Size 250 x 500 mm)
|
|
|
Specification
|
Details
|
| Working Surface of Table |
250 × 500 mm
|
| Maximum Height (Table to Grinding Wheel) |
275 mm
|
| Vertical Feed Graduation |
0.002 mm
|
| Cross Feed Graduation |
0.05 mm
|
| Spindle Speed |
2800 rpm
|
| Size of Grinding Wheel |
200 × 20 × 31.75 mm
|
| Magnetic Chuck |
200 × 500 mm
|
| Electric Motor (Recommended) |
1.5 HP, 2800 rpm
|
| Diamond Dresser |
0.5 Carat
|
| Wheel Balancing Stand |
One
|
| Net Weight (Approx) |
900 – 1000 Kg
|
