Universal Lathe Machine

Features:

  • Heavy-duty precision gap bed lathe with 18″ swing.
  • 80 mm spindle bore for strong cutting capacity.
  • Hardened & ground bedways for accuracy and durability.
  • CE-compliant safety features with digital readout.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1 Category:

Description

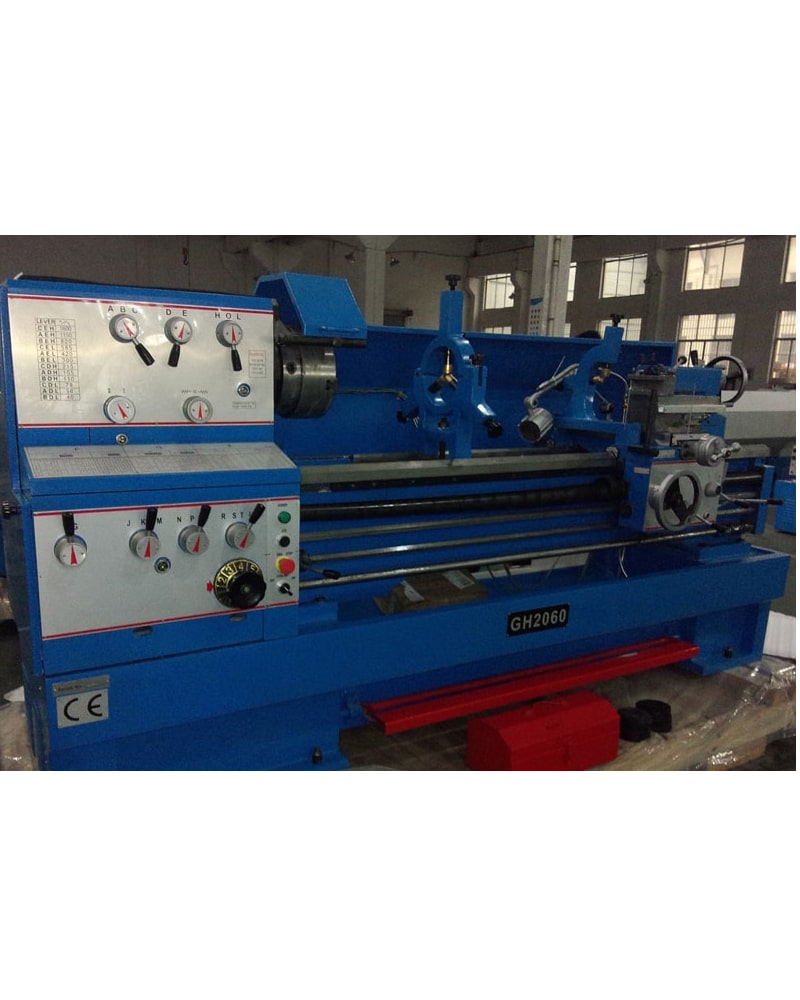

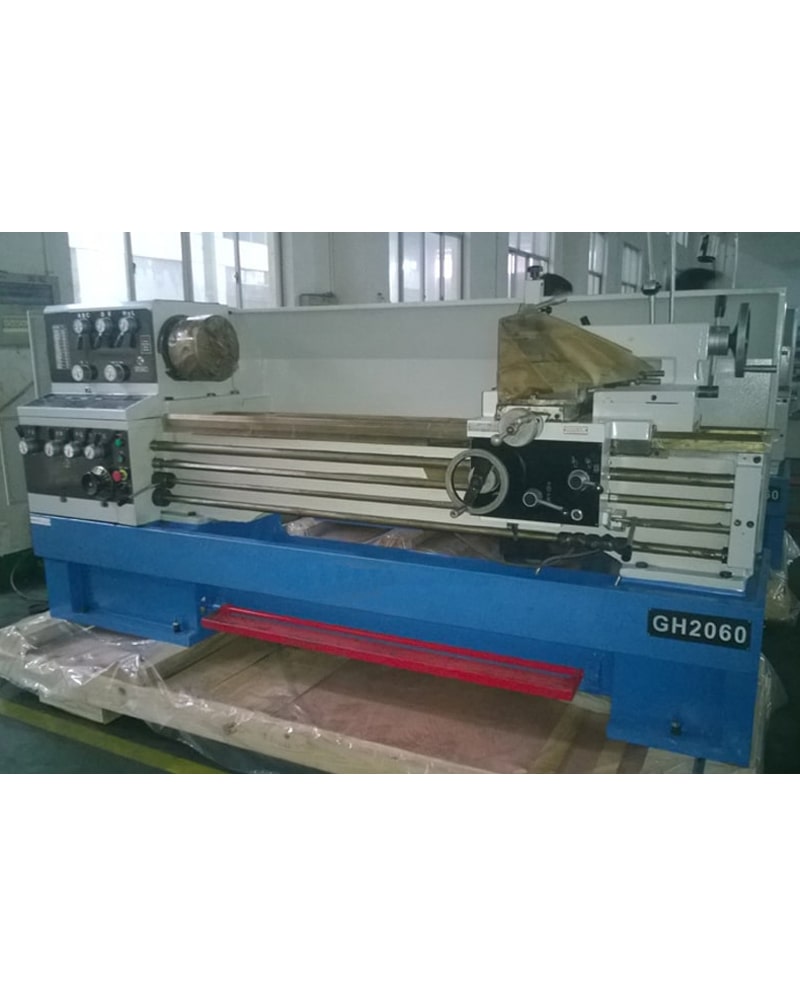

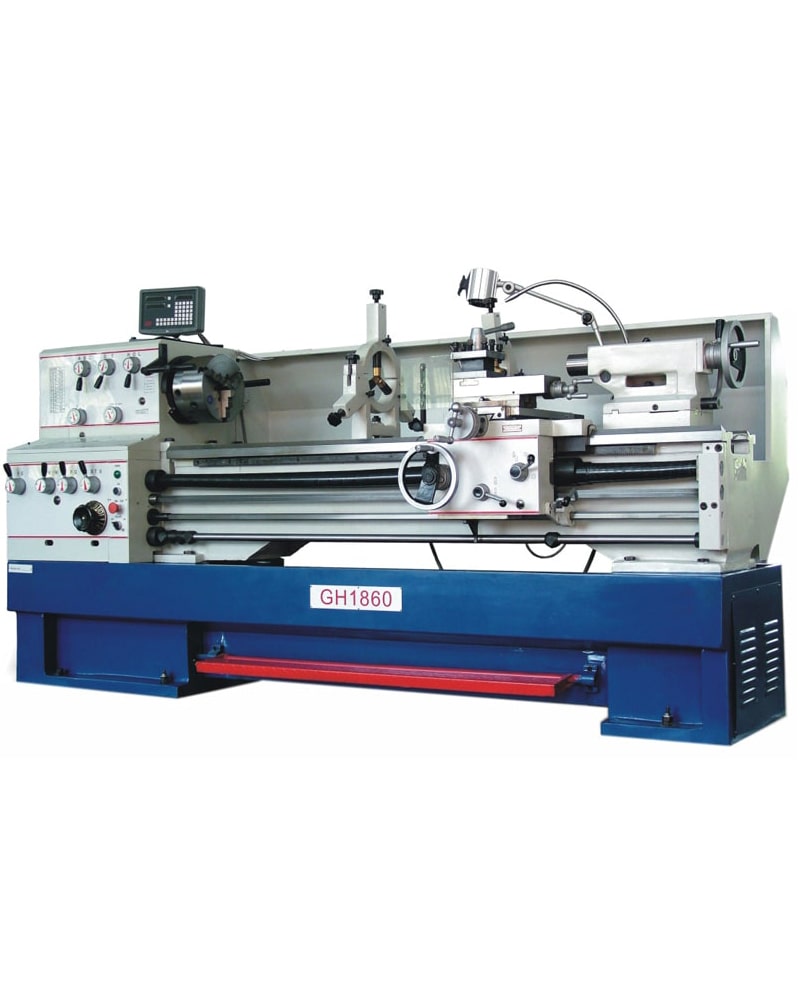

GH1660 GH1860 GH2060 Universal Lathe Machine
Precision gap bed lathe machine swing over bed 18″, length “16”

  • Super audio quenched and accurate grinded bed way ang dovetail of saddle.
  • Spindle system has great rigidity, high accuracy, strong cutting force and the 80mm spindle bore.
  • One-piece cast iron base with damping capacity, suiting to heavily cut.
  • Main drive gears are super audio quenching and accurately grinding, with low working noise.
  • Gap bed can be demounted, it is convenient to manufacture large diameter work pieces.
  • It is convenient to cut thread without changing wheels, and apron has fast driving and reversing mechanism.
  • The protection of overall length lead screw and chuck protecting hood are designed to comply with CE.
  • Raster count, digital readout and high degree of accuracy.
GH1660 GH1860 GH2060 Universal Lathe Machine

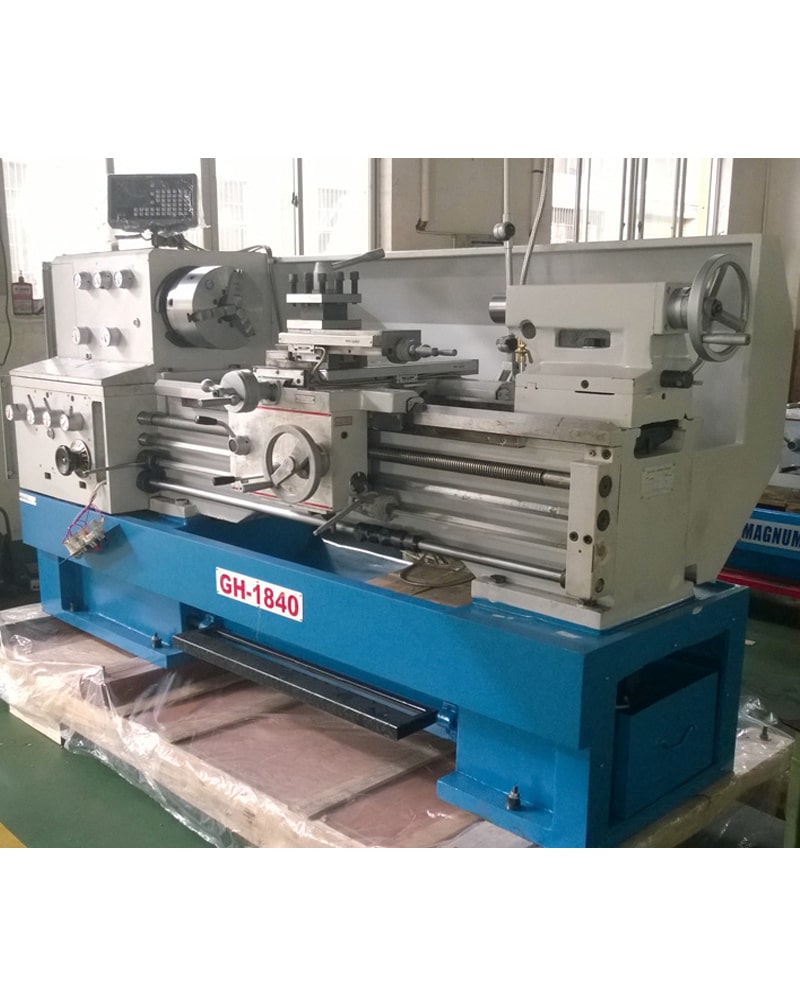

MODEL GH-1640 GH-1660 GH-1840 GH-1860
Capacities: 400 460
Swing Over Bed (mm) 222 285
Swing Over Cross Slide (mm) 651 696
Swing Over Gap (mm) 320 320
Widtd of Bed 340mm
Distance Between Centers (mm) 1000 1500 1000 1500
Head Stock:
Hole tdrough Spindle (mm) 80
Spindle Nose D1-8
Taper in Spindle Nose MT-6
Spindle Taper Adapter MT-5
Number of Spindle Speeds 12
Range of Spindle Speeds (Rpm) 40-1600
Gearbox:
Number of Longitudinal Feeds 60
Range of Longitudinal Feeds (mm/rev) 0.030-1.66
Number of Cross Feeds 60
Range of Longitudinal Feeds (mm/rev) 0.02-1.21
Number of Metric tdreads 41
Range of Metric tdreads 0.1-14mm
Number of Inch tdreads 60
Range of Inch tdreads (T.P.I) 2-112
Leadscrew (mm) 36×6
Feed Rod Diameter (mm) 28
Compound and Carriage:
Toolpost Type 4-way
Maximum Tool Size 25mm x 25mm
Maximum Compound Slide Travel 120mm
Maximum Cross Slide Travel 220mm
Tailstock:
Tailstock Spindle Travel 130mm
Diameter of Tailstock Spindle 70mm
Taper in Tailstock Spindle MT-5
Net Weight (approx.) 2200/2600kg 2730/3130kg
