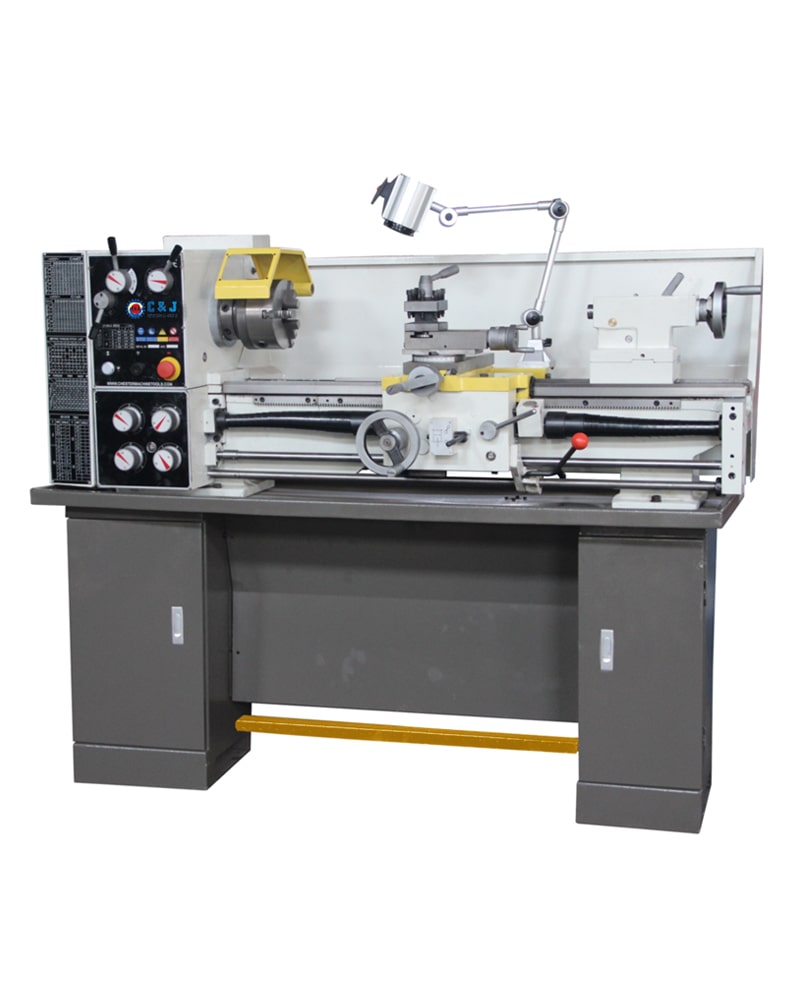

Universal Mechanical Precision Lathe C0632C*1000

Features :

  • Precision ground and hardened bedways
  • The spindle is supported with precision roller bearings.
  • Head stock gears are made of high quality steel ground and hardened.
  • Two different length beds are available.
  • Removable gap is provided for large diameter work.
  • Two speed motor for optional.
  • Easy operation gear box has various feeds and thread cutting function.
  • With or without foot standard for optional.
  • Right angle appearance or circular appearance for optional.
SKU: NMDE-002-1-2-1-2-1-2-1-2-2-1-1-1-1-1-1-1-1-1-1-1-1-1 Categories: , , ,

Description

Universal Mechanical Precision Lathe

Model C0632C*1000
Max. swing over bed
Φ330mm
Max. swing over cross slide
Φ180mm
Max. swing over gap
Φ470mm
Distance between centers
1080mm
Width of bed
181mm
Spindle bore
Φ38mm
Taper of spindle bore
M.T.#5
Range of spindle speeds
65-1810rpm
Taper of tailstock
M.T.#3
Metric threads can be cut
0.4-7mm
Inch threads can be cut
4-60 T.P.I.
Range of longitudinal feeds
0.0527-1.2912mm/rev
Range of cross feeds
0.011-0.276mm/rev
Motor power
1.1KW.3PH / 1.5KW.1PH
Model C0632C*1000
C0632C*1000
Max. swing over bed
Φ330mm
Max. swing over cross slide
Φ180mm
Max. swing over gap
Φ470mm
Distance between centers
1080mm
Width of bed
181mm
Spindle bore
Φ38mm
Taper of spindle bore
M.T.#5
Range of spindle speeds
65-1810rpm
Taper of tailstock
M.T.#3
Metric threads can be cut
0.4-7mm
Inch threads can be cut
4-60 T.P.I.
Range of longitudinal feeds
0.0527-1.2912mm/rev
Range of cross feeds
0.011-0.276mm/rev
Motor power
1.1KW.3PH / 1.5KW.1PH
