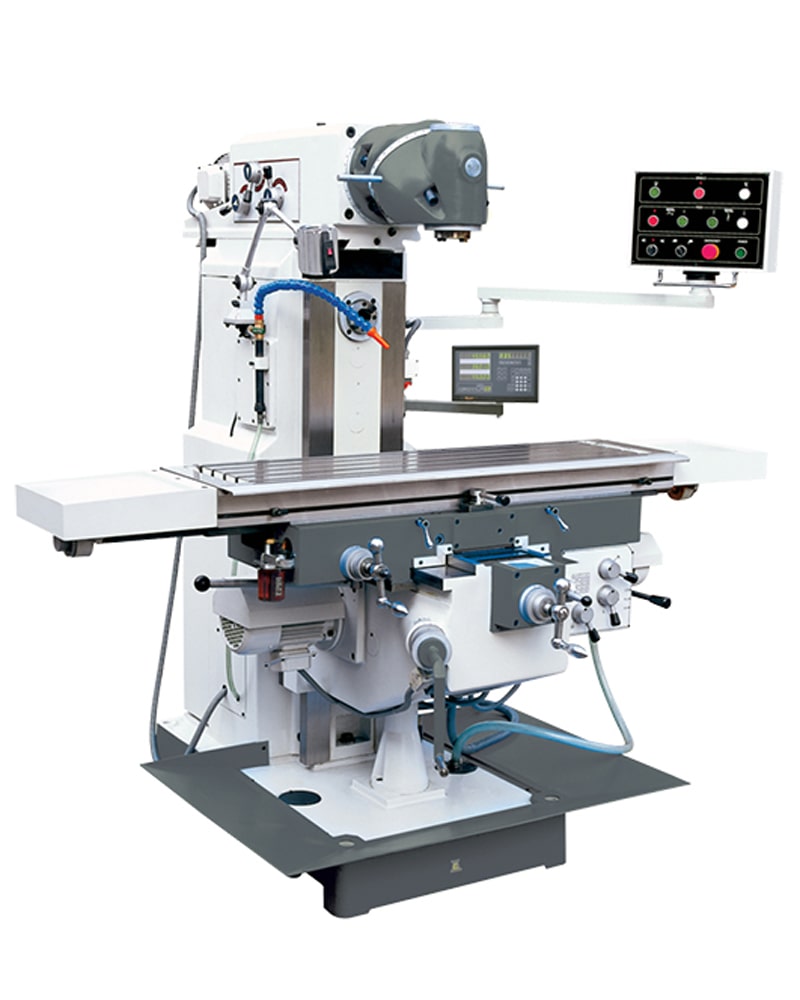

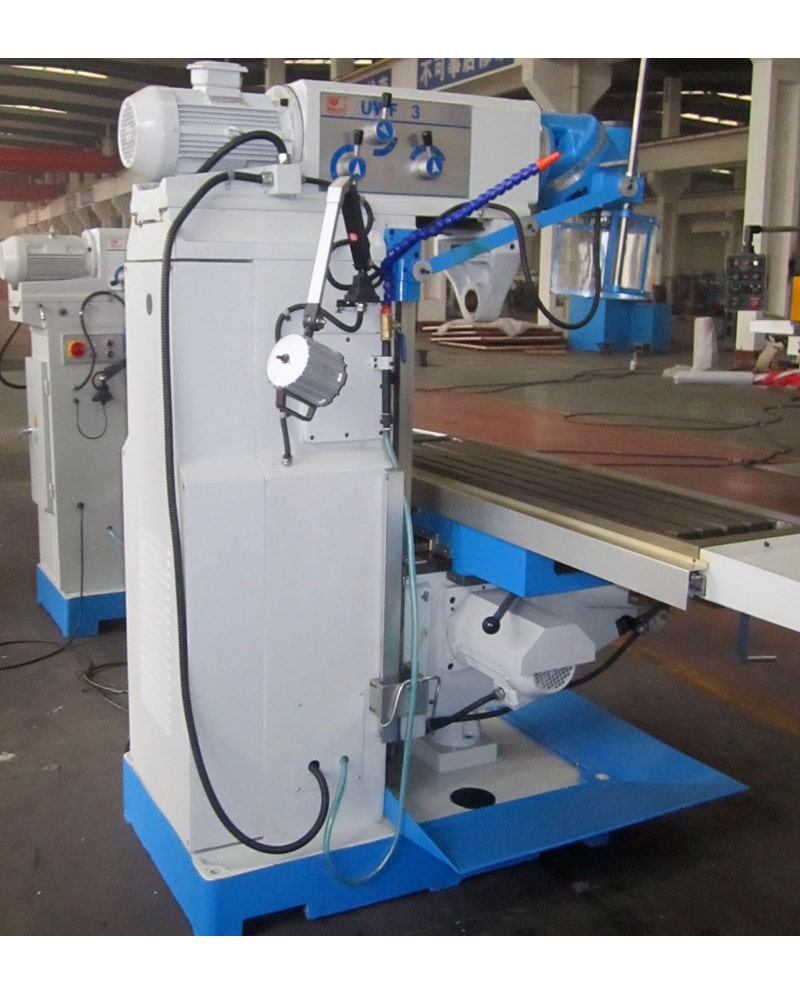

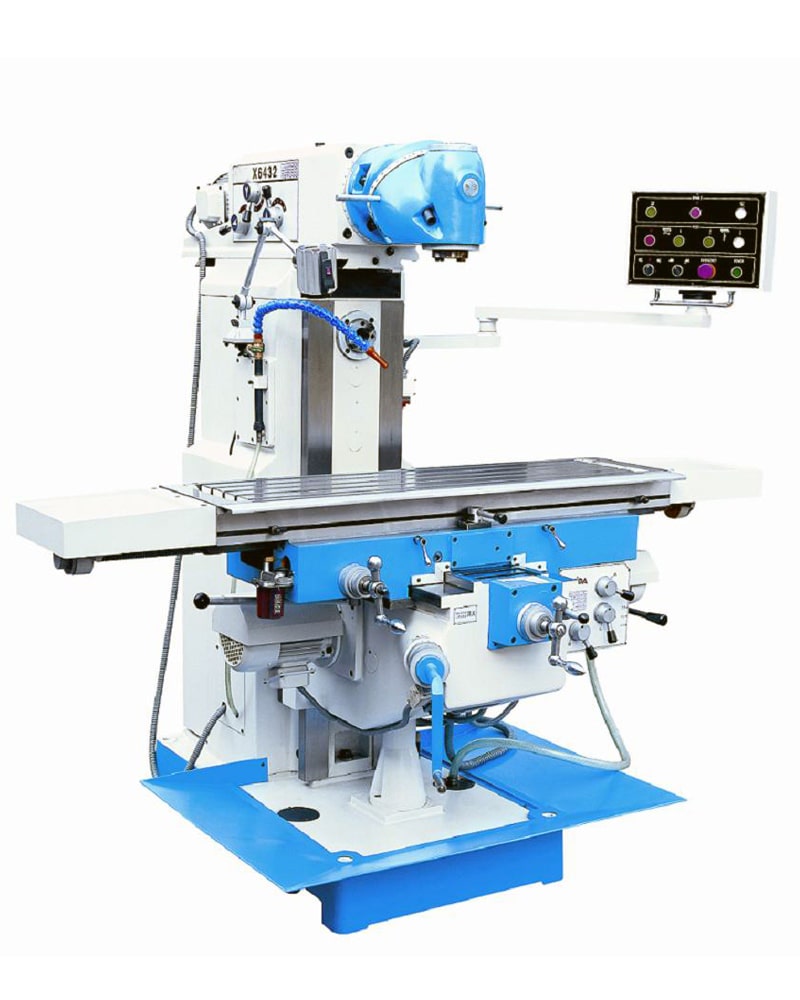

Universal Milling Machine UWF 3
Features:
- Universal Milling Head swivels 360° for multi-angle Machining
- Hardened and ground table surface for durability
- X-axis travel: 1000 mm, table size: 1320 × 320 mm
Description
Universal Milling Machine UWF 3
The UWF 3 Universal Milling Machine is designed for precision and versatility.Equipped with a swiveling universal milling head, hardened table surface, and large travel capacity, it is suitable for both heavy-duty and fine milling operations. Ideal for tool rooms, workshops, and production units requiring high accuracy and durability.
|
Specifications
|
Unit
|
UWF 3
|
| Table size |
mm
|
1320 × 320
|
| T slot |
no
|
5
|
| Size (Widtd) |
mm
|
14
|
| Centre distance |
mm
|
63
|
| Max. load of Table |
kg
|
250
|
| Maching Rang | ||
| Table Longitudinal travel (manual/auto) |
mm
|
1000
|
| Table Cross travel (manual/auto) |
mm
|
300
|
| Table Vertical travel (manual/auto) |
mm
|
440
|
| Main Spindle | ||
| Spindle taper |
ISO40
|
|
| Spindle speed / step – Vertical |
rpm
|
45–1660 / 11 steps
|
| Spindle speed / step – Horizontal |
rpm
|
38–1310 / 12 steps
|
| Max. end milling width |
mm
|
125
|
| Max. vertical milling Dia. |
mm
|
25
|
| Swivel angle of swivel head |
degree
|
360°
|
| Vertical spindle axis to column surface |
mm
|
200–760
|
| Vertical spindle nose to table surface |
mm
|
180–630
|
| Horizontal spindle axis to table surface |
mm
|
20–470
|
| Horizontal spindle axis to arm bottom |
mm
|
175
|
| Arm travel |
mm
|
460
|
| Feeds | ||
| Longitudinal/Cross feed |
mm/min
|
20–360 / 8 steps
|
| Vertical feed / step |
mm/min
|
422 / 1 step
|
| Longitudinal/Cross rapid speed |
mm/min
|
1200
|
| Rapid Traverse vertical |
mm/min
|
422 / 1 step
|
| Power | ||
| Main motor |
kW
|
3
|
| (X/Y/Z) Feed motor |
kW
|
0.55 (X/Y), 0.75 (Z)
|
| Coolant motor |
kW
|
0.04
|
| Package dimension |
cm
|
170 × 207 × 225 (one set/case)
|
|
cm
|
226 × 187 × 228 (two sets/cases)
|
|
| Overall dimension |
cm
|
202× 171 ×200
|
| Net/Gross Weight |
kg
|
2100 / 2300
|
