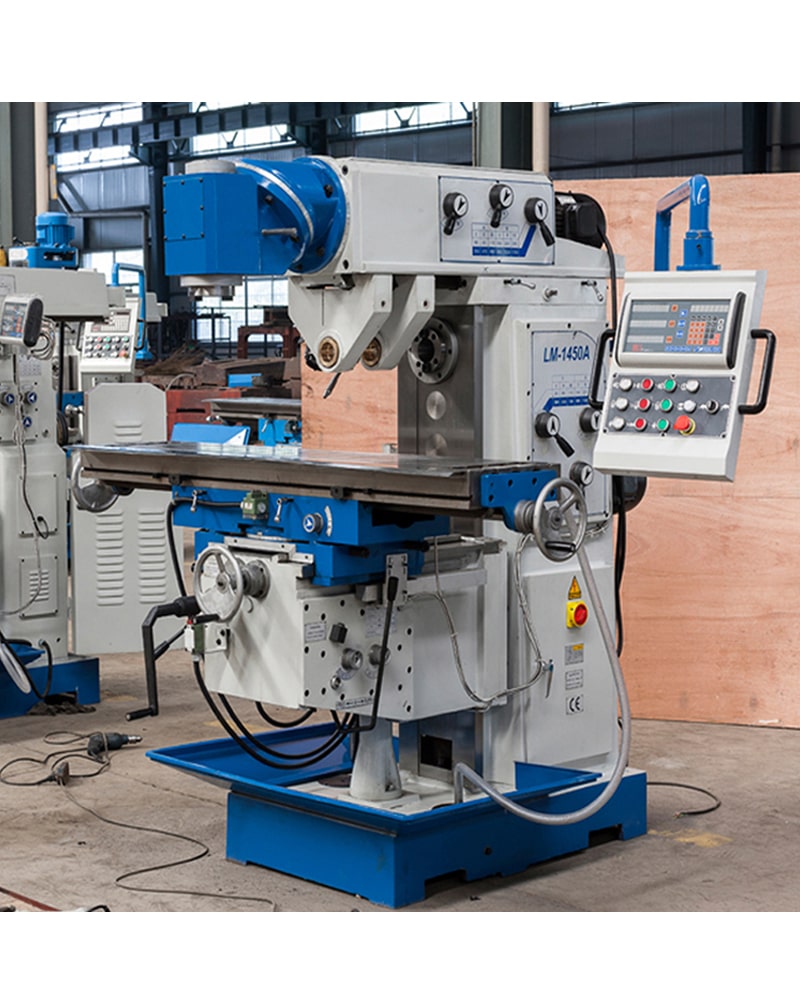

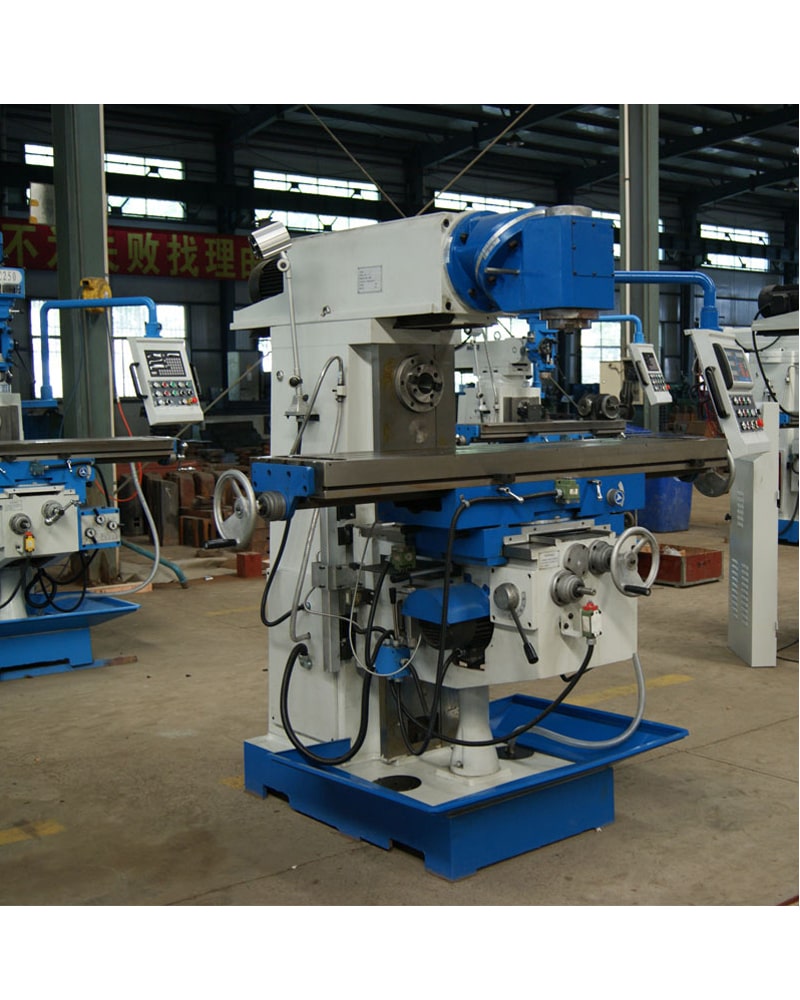

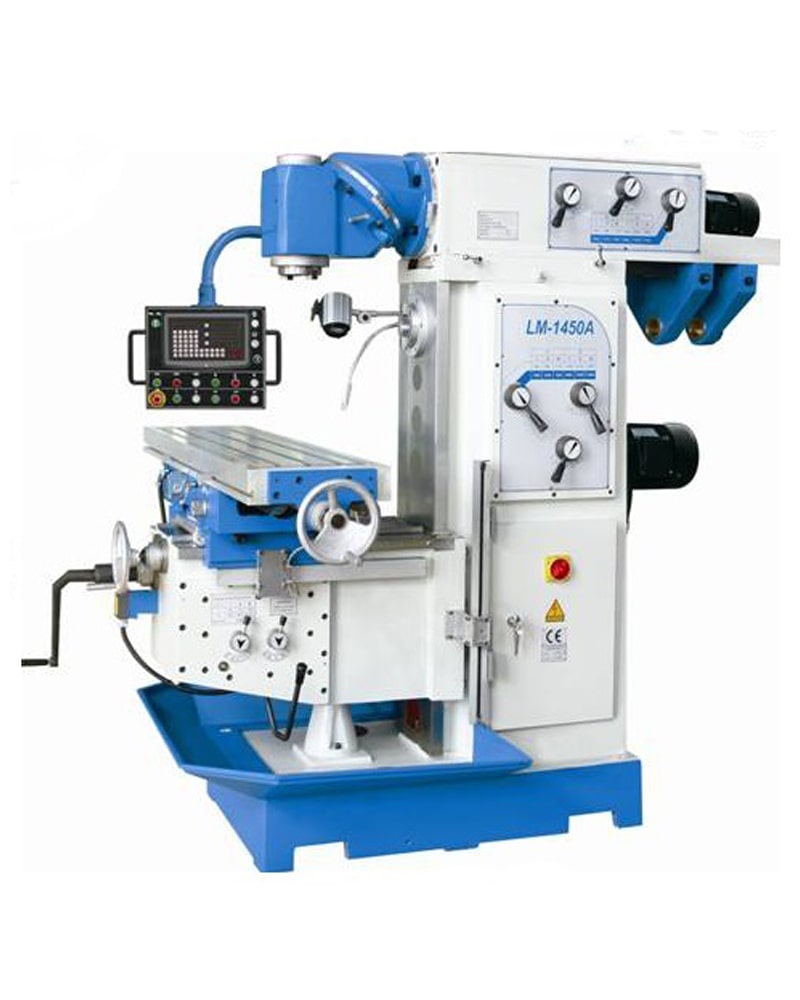

Universal Swivel Head Milling Machine LM1450A
Features :
- Hardened guideway for durability
- Work table swivels ±45°
- X, Y & Z axis automatic feeding
- Swivel head rotates ±360° for flexible operations
- ISO50 spindle taper with high torque
Description
LM1450A Universal Swivel Head Milling Machine
The LM1450A is a Versatile Universal Swivel Head Milling Machine designed for both vertical and horizontal milling. With its robust structure, precision control, and wide swivel range,
it is suitable for machining complex components with high performance.
Application :
This universal milling machine is ideal for industries such as mechanical manufacturing, moulds, automotive, and motorcycles. It can perform vertical and horizontal milling, cut rotary surfaces, grooves, and handle multi-angle and multi-face machining in a single setup.
|
MODEL
|
UNIT
|
LM1450A
|
| Table size |
mm
|
1600 x 360
|
| T slot no./widtd/distance |
no
|
5/18/80
|
| Max. load of Table |
kg
|
400
|
| Swivel angle of table |
degree
|
±45°
|
| Table Longitudinal travel (manual/auto) |
mm
|
900
|
| Table Cross travel (manual/auto) |
mm
|
320
|
| Table Vertical travel (manual/auto) |
mm
|
400
|
| Swivel angle of milling head |
degree
|
360°
|
| Spindle taper |
ISO50
|
|
| Spindle speed /step – Vertical |
rpm
|
60–1800
|
| Spindle speed – Horizontal |
rpm
|
60–1700
|
| Distance from vertical spindle axis to column surface |
mm
|
160–800
|
| Distance from vertical spindle nose to table surface |
mm
|
200–600
|
| Distance from horizontal spindle axis to table surface |
mm
|
0–400
|
| Distance from horizontal spindle axis to ram bottom |
mm
|
200
|
| Ram travel |
mm
|
600
|
| Longitudinal/Cross feed |
mm/min
|
30–630 (X,Y)
|
| Vertical feed /step |
mm/min
|
30–630 (Z)
|
| Longitudinal/Cross rapid speed |
mm/min
|
2000 (XY)
|
| Rapid Traverse vertical |
mm/min
|
2000 (Z)
|
| Main motor |
kw
|
4
|
| N.W/G.W |
kg
|
2650/2850
|
| Pack measure |
mm
|
2000 × 2000 × 2250
|
